E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Door Locks
>>
Door Lock Cylinder
>>
Service and Repair
Door Lock Cylinder: Service and Repair

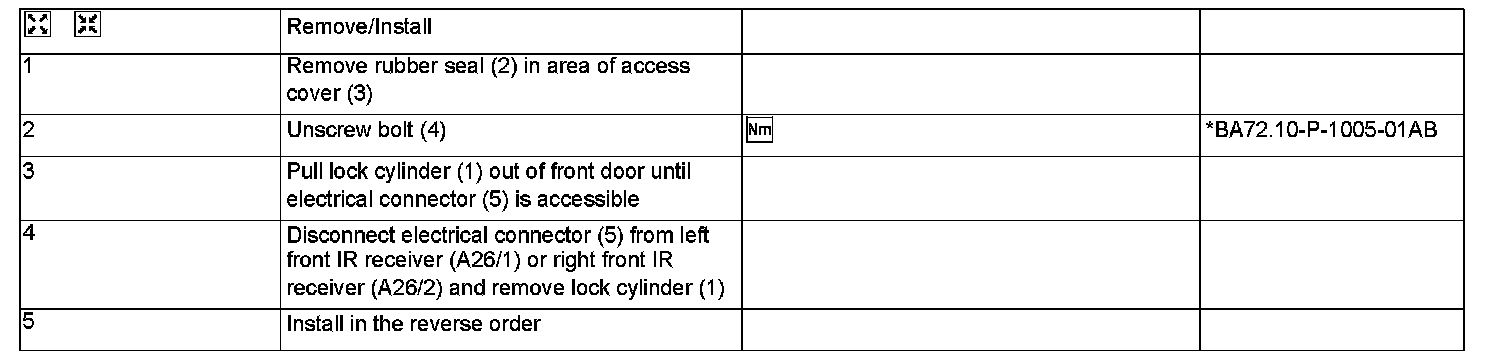

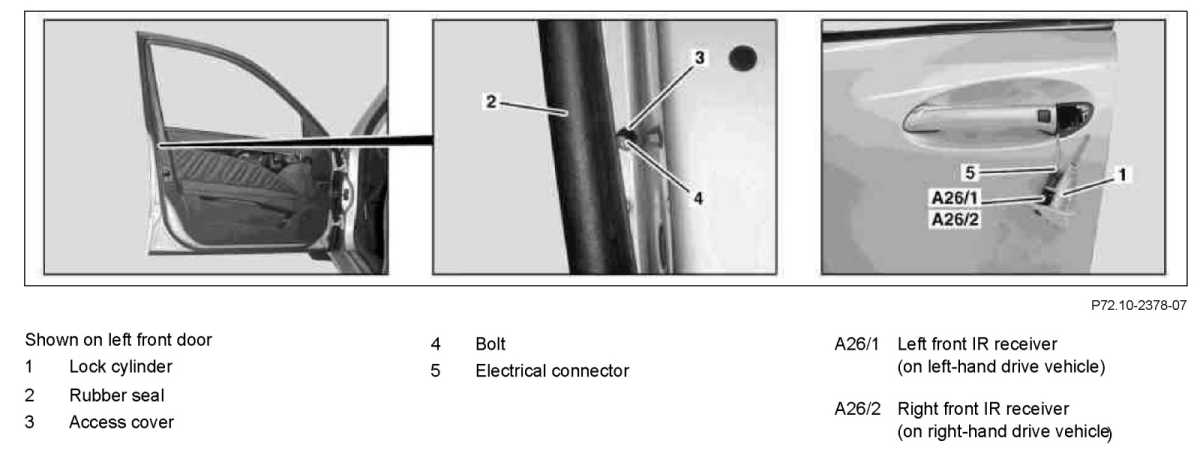

AR72.10-P-4015T Remove/Install Front
Door Lock Cylinder

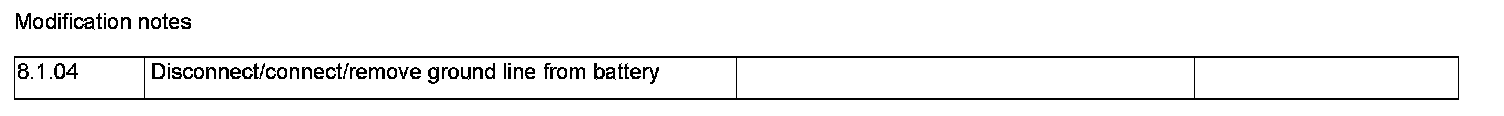

Modification Notes:

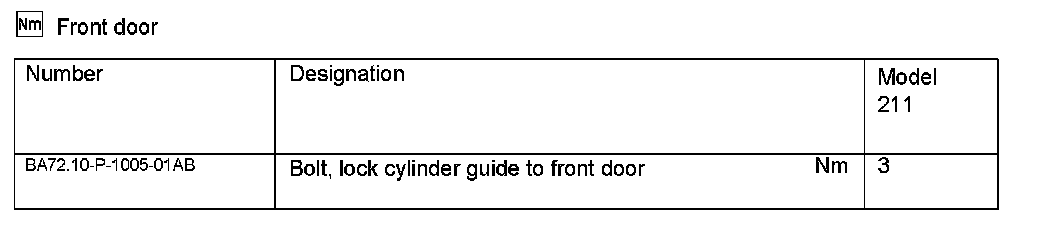

Front Door:
