Removal and Replacement

AZ82.20-P-0001-02T Connect Wiring Harness

Component Identification:

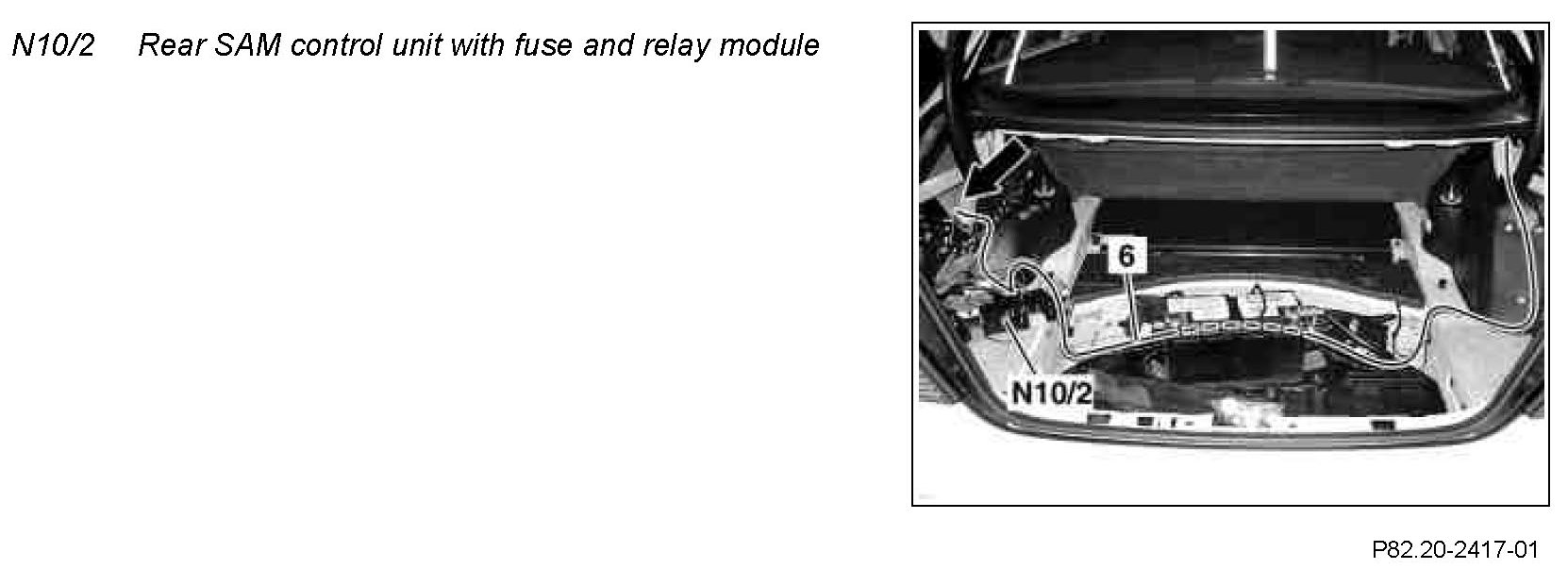

1 Connect wiring harness (6) with connection coupling to plug position 27 at rear SAM control unit with fuse and relay module (N10/2).
2 Put relay (7) onto plug position C and assign fuse (8) on fuse location 5 with a 7.5 A fuse.







3 Route wiring harness (6) in trunk along existing leads as shown in figure.
4 Connect brown ground lead to ground connection (arrow).

Component Identification:

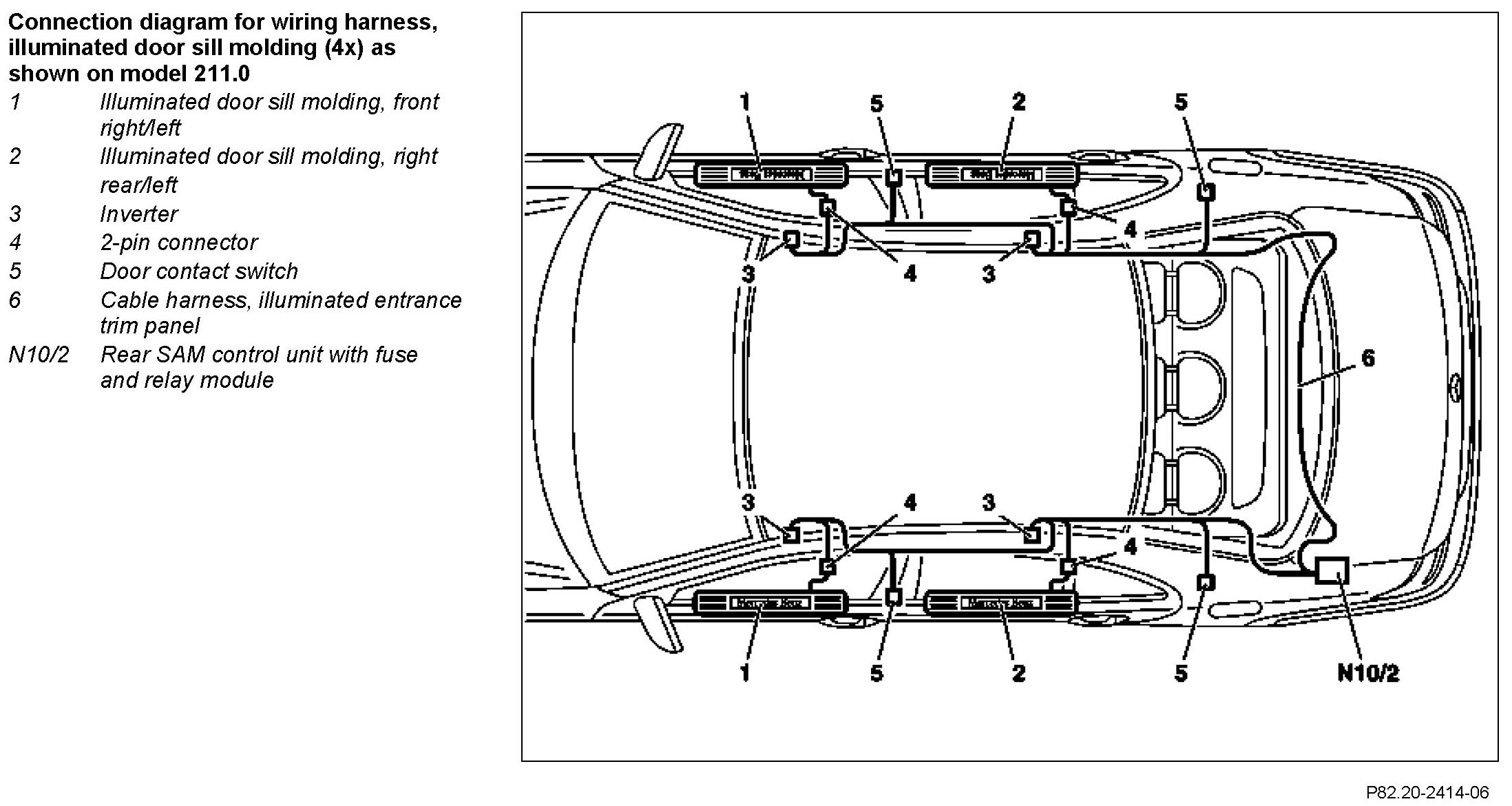

5 Route branch-off line from wiring harness (6) for the illuminated door sill moldings in the cable duct under the left and right rear door (only with 4 door sill moldings).

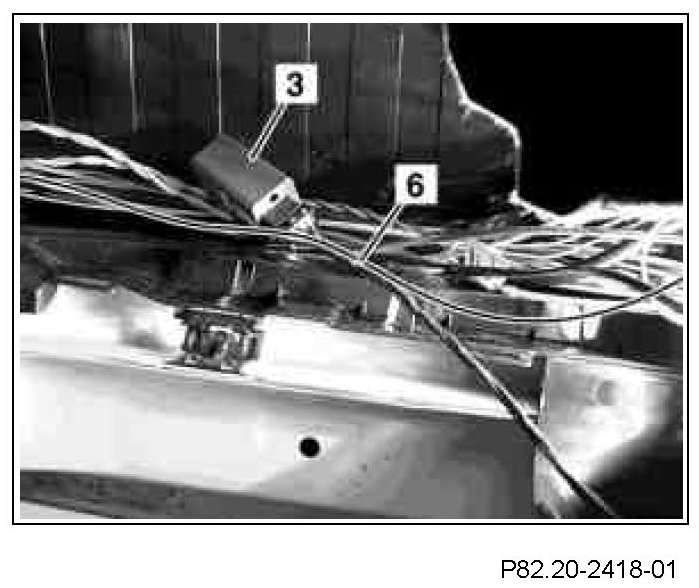

6 Attach inverter (3) and route in cable duct.

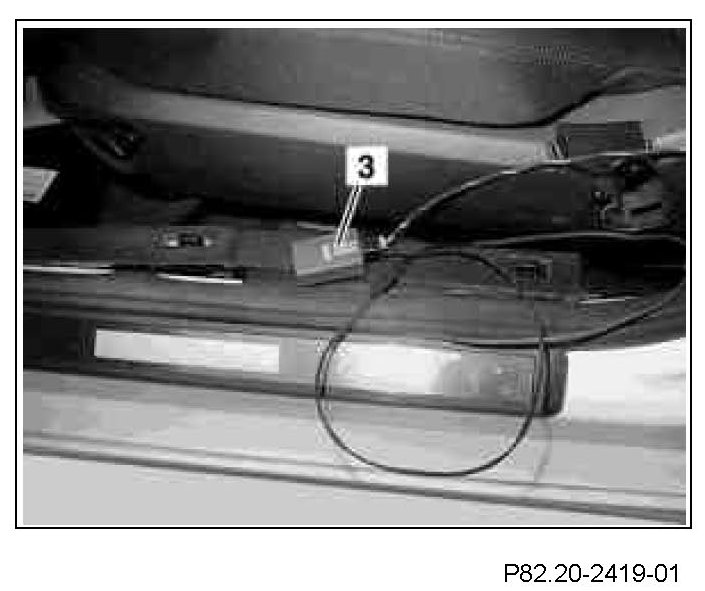

7 Route branch-off line for illuminated door sill molding in cable duct at driver's door, right and left.
8 Attach inverter (3) and route in cable duct.







9 Put on relevant door sill at every affected door and drill and varnish 6 mm diam. hole (arrow) in weatherstrip fold of sill, level with relevant line terminator.

Make hole as far onto lower weatherstrip fold as possible.

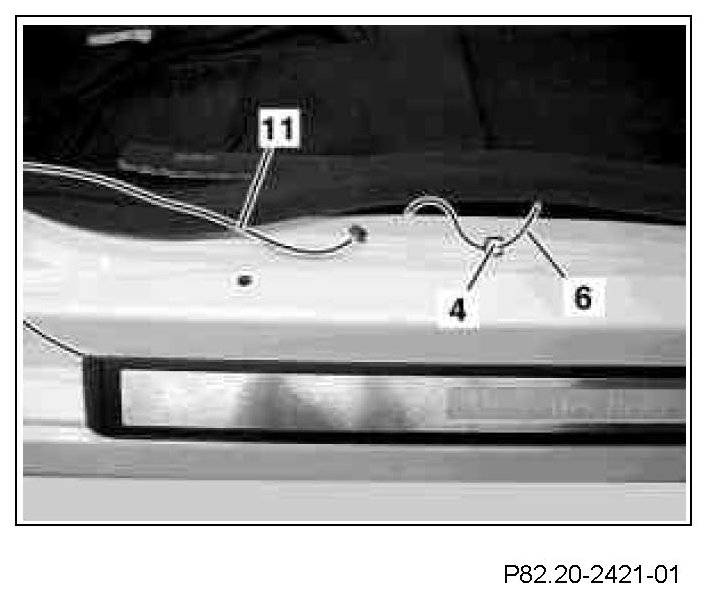

10 Clip illuminate door sill molding on and route connecting wire (11) through drilled hole.
11 Insert 2 pins of connecting wire (11) into a connector housing (4) and attach to wiring harness (6).







12 Connect the two-color door contact wire to branch-off line of same color in wiring harness (6) using provided clamping connector at each of the doors concerned.
