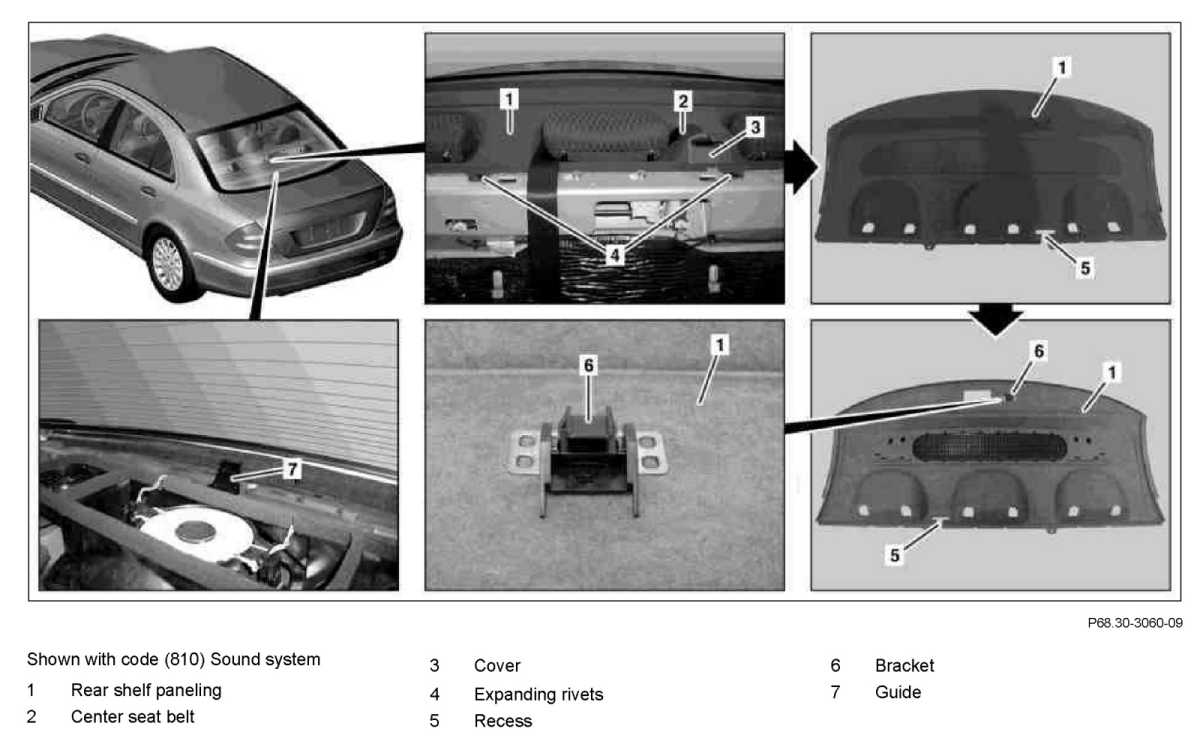

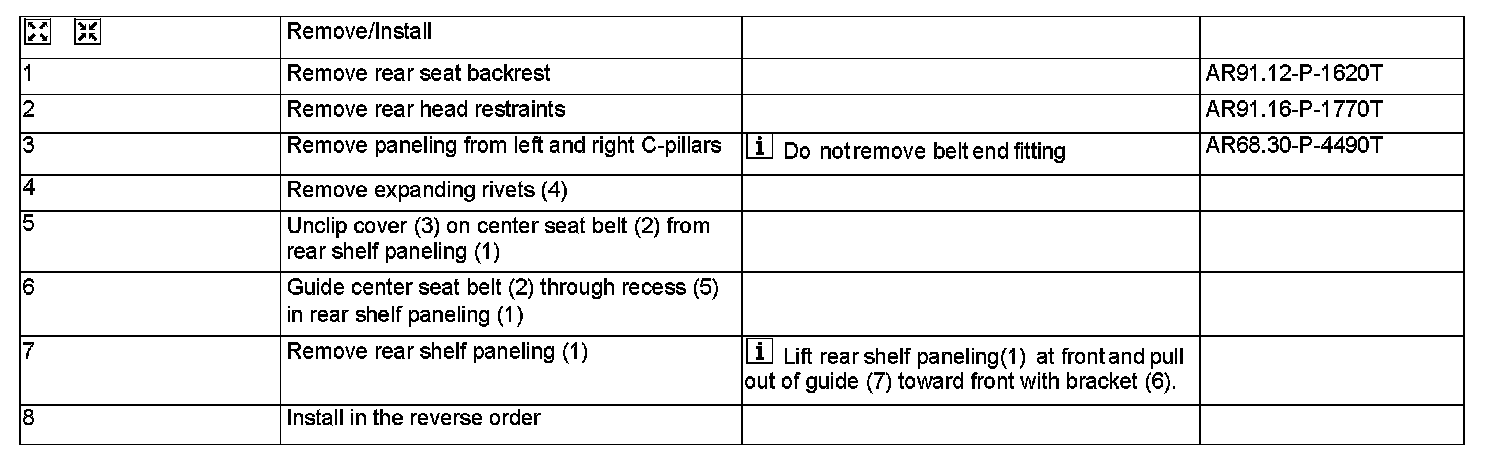

AR68.30-P-4580T Remove/Install and Disassemble Parcel Shelf



AR68.30-P-4580T Remove/Install and Disassemble Parcel Shelf
- except CODE (287a) Through-loading feature
- except CODE (540a) Electric roller blind for rear window
