AR68.30-P-4305-06T Install PTS Warning Display Wiring Harness Into Headliner

AR68.30-P-4305-06T Install PTS Warning Display Wiring Harness Into Headliner
- with CODE (220a) Parktronic System (PTS)

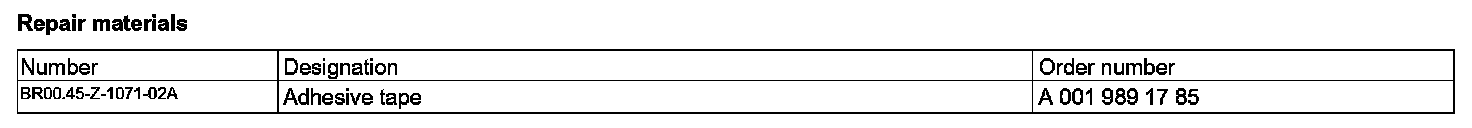

Repair Materials:

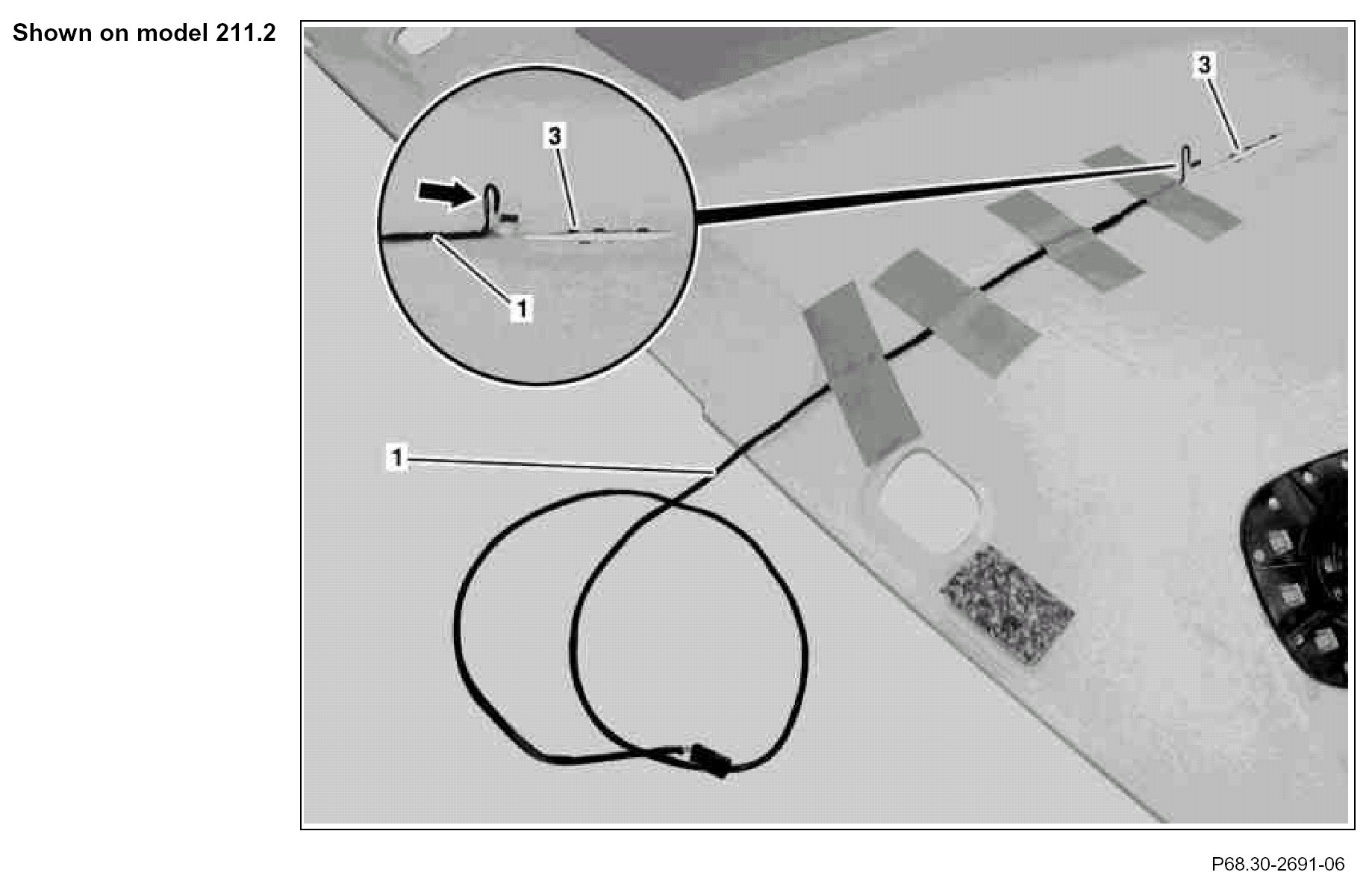

1. Route PTS warning display wiring harness (1) in recess of new headliner as illustrated.
The PTS warning display (1) has a green marking (arrow). This marking (arrow) must be located at the edge of the cutout (3).

2. Glue PTS warning display wiring harness (19 to new headliner with an approx. 10 cm long strip of adhesive tape at a distance of approx. 5 cm.
Firmly press on adhesive tape, otherwise PTS warning display wiring harness (1) can detach itself from headliner.
