AR68.30-P-4305-02T Install Microphone Array Wiring Harness In Headliner

AR68.30-P-4305-02T Install Microphone Array Wiring Harness In Headliner
- with CODE (380) Preinstallation for MB phone "CTEL", complete
- with CODE (381a) CP Light telephone system
- with CODE (382a) MB telephone "CTEL" in armrest
- with CODE (383b) CP High telephone system
- with CODE (813) Voice control

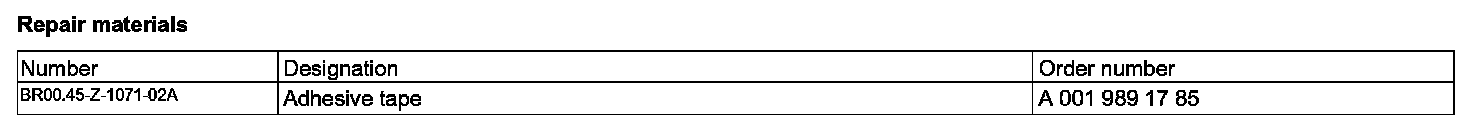

Repair Materials:

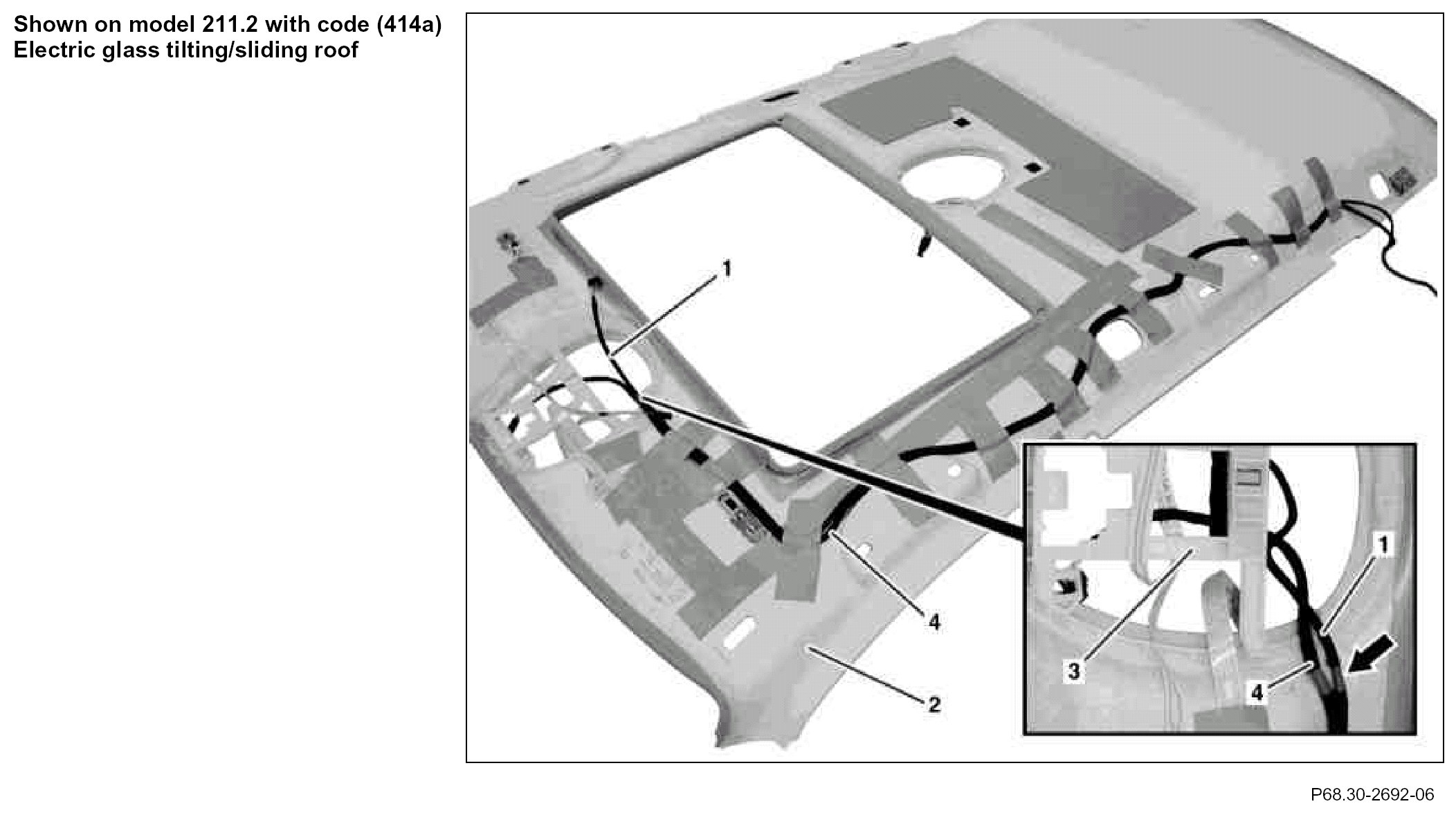

1. Route microphone array wiring harness (1) starting at overhead control panel control module retaining frame (3), as illustrated.
The microphone array wiring harness (1) thereby makes direct contact to the overhead control panel control unit wiring harness (4) over the entire length.
The microphone array wiring harness (1) has a green marking (arrow) for the excess length on the overhead control panel control unit retaining frame (3). The marking (arrow) should be located at the edge of the overhead control panel control unit retaining frame (3) as illustrated.

2. Fasten microphone array wiring harness (1) on headliner (2) with an approx. 10 cm long strip of adhesive tape.
The strips of adhesive tape should have a distance of approx. 5 cm to the left outer contour of the headliner (2). Otherwise the function of the left windowbag can be influenced in case of an accident.
Press adhesive strips on firmly otherwise the microphone array wiring harness (1) can detach itself from the headliner (2).
Glue strips of adhesive tape to present strips of adhesive tape of the mount of the overhead control panel control unit wiring harness (4).
