Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Headliner >> Service and Repair >> Removal and Replacement >> AR68.30-P-4300TB Remove/Install Headliner

AR68.30-P-4300TB Remove/Install Headliner



AR68.30-P-4300TB Remove/Install Headliner
- with CODE (413) Panoramic sliding roof
- with CODE (419) Solar module for panoramic roof

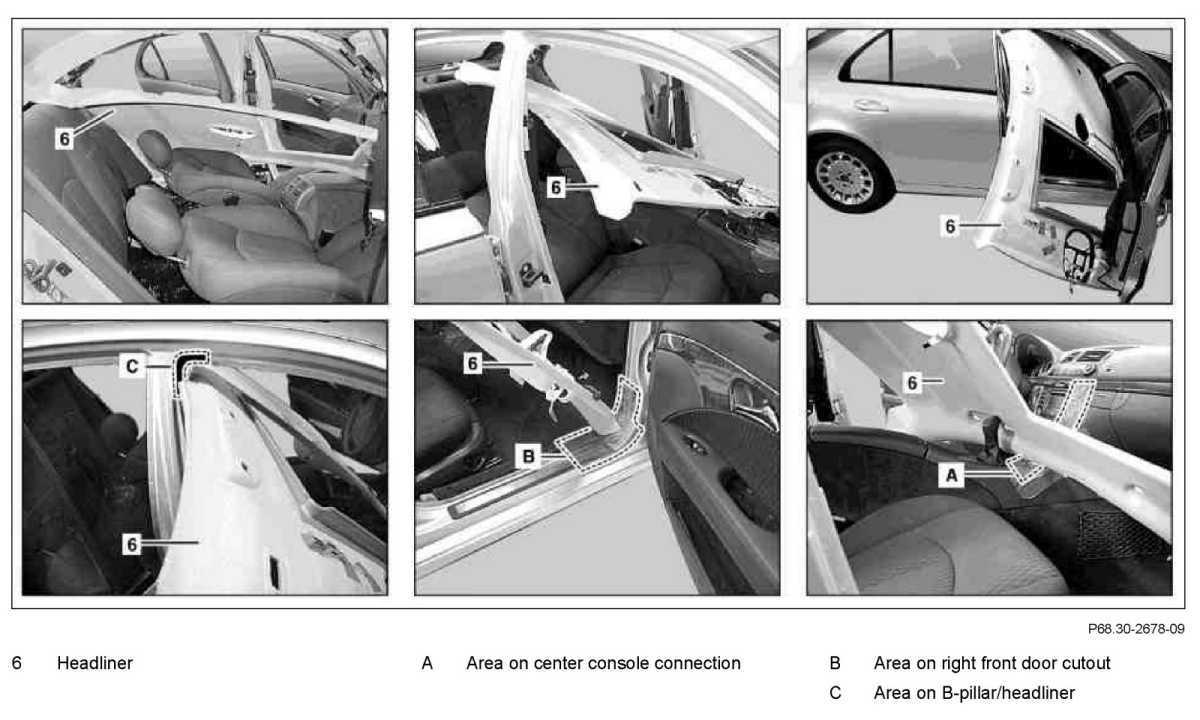

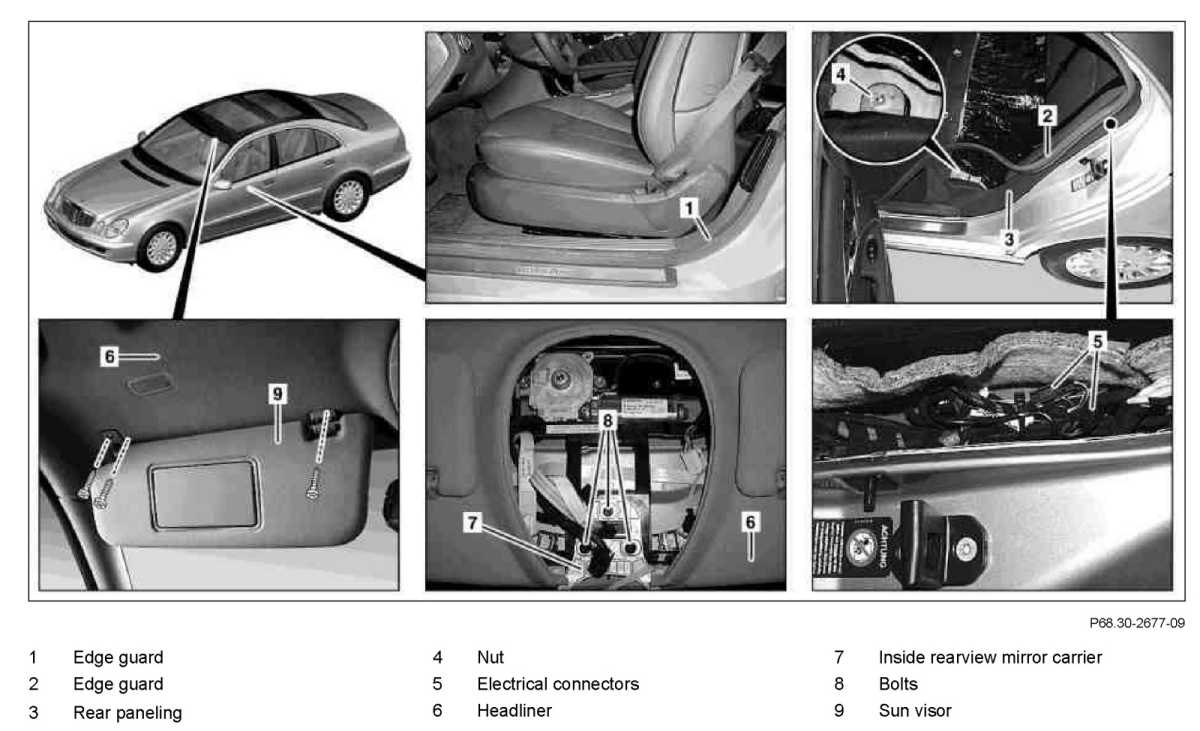

Part 1:

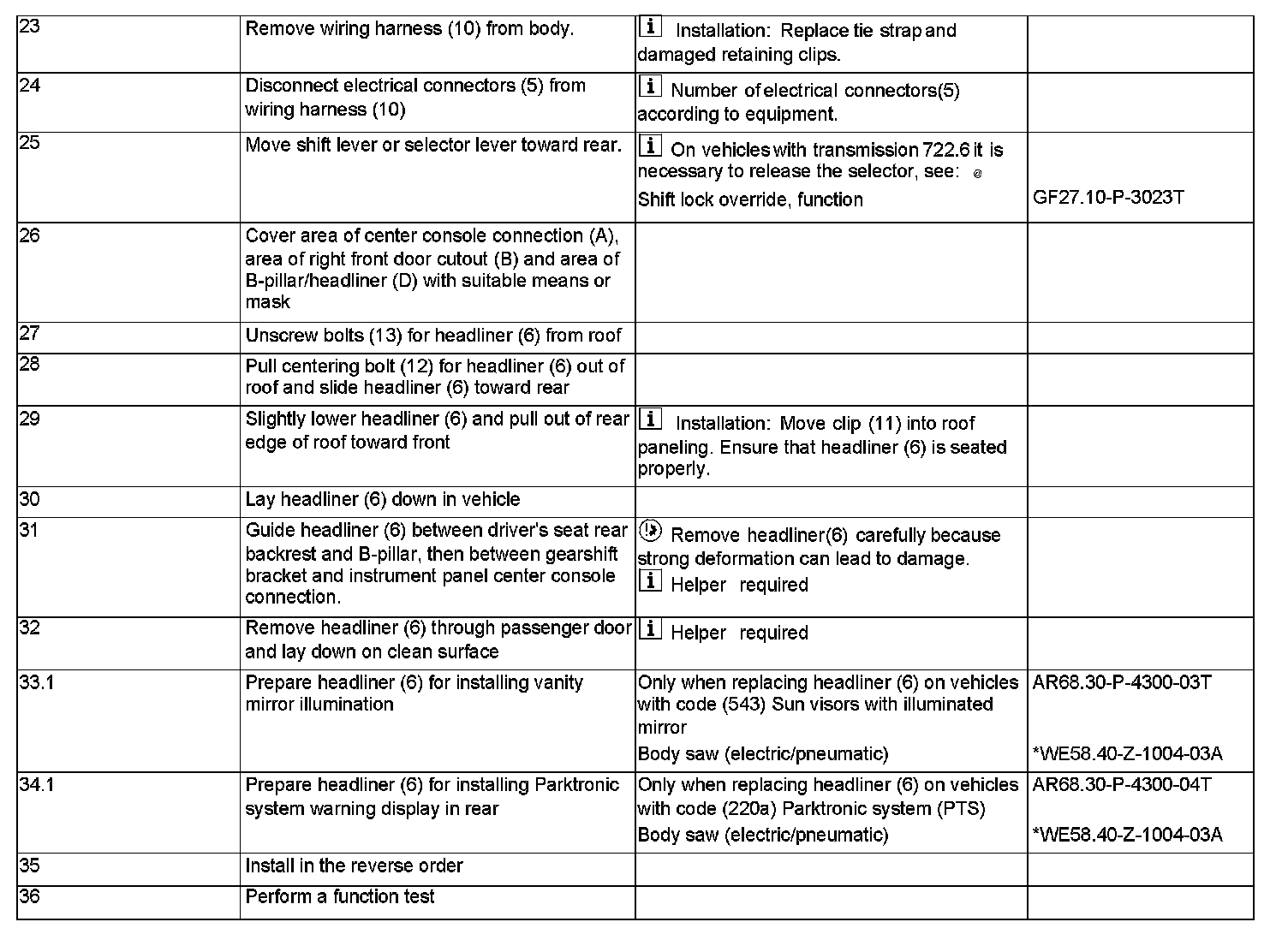

Part 2:
