AR68.10-P-1400T Remove/Install Glove Compartment
AR68.10-P-1400T Remove/Install Glove Compartment
AR68.10-P-1400T Remove/Install
Glove Compartment

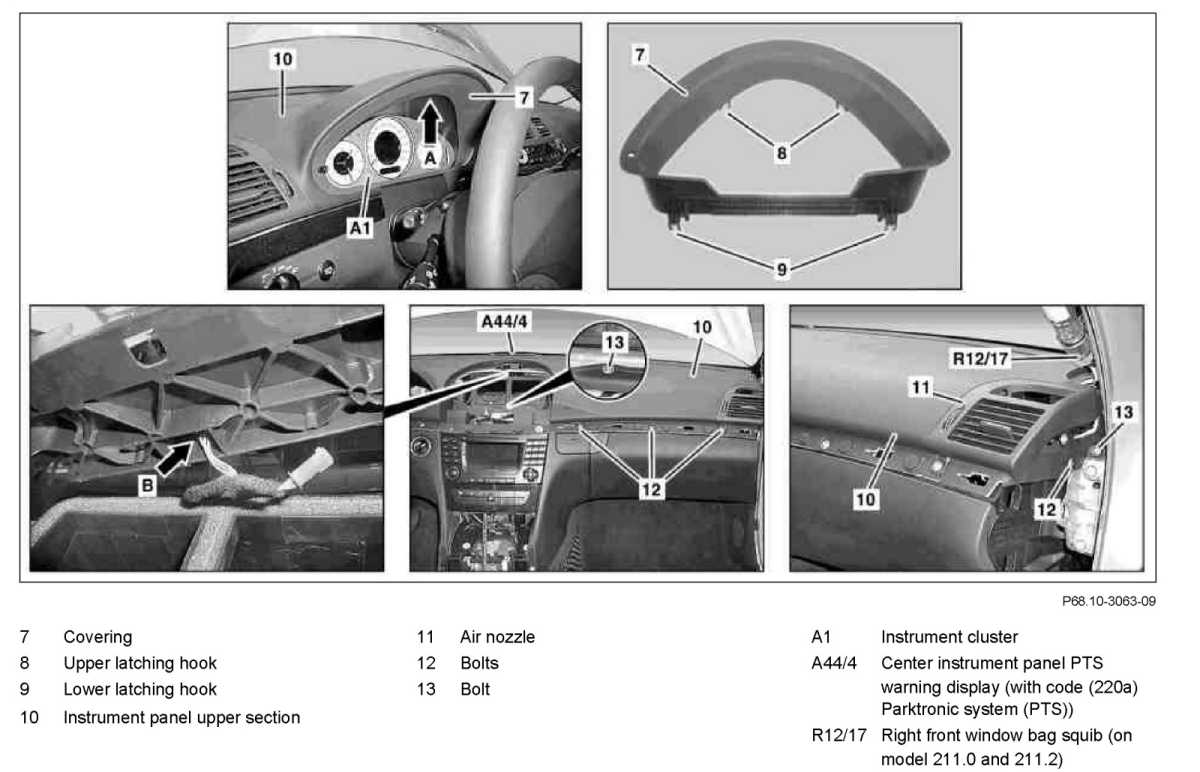

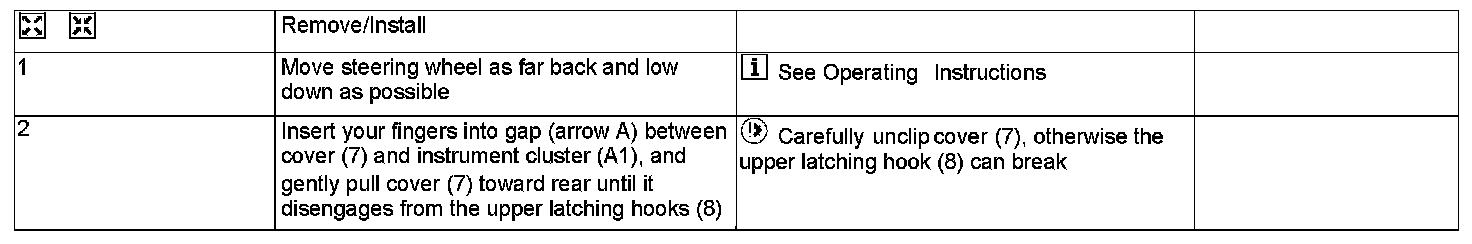

Part 1:

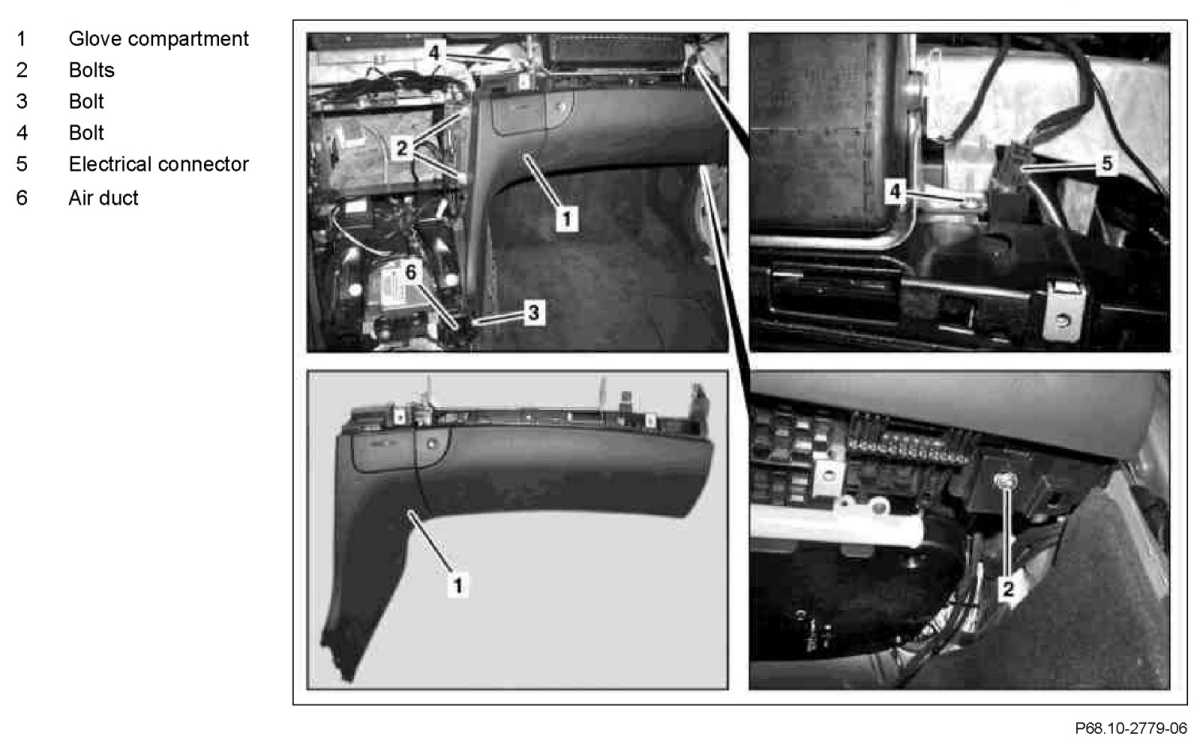

Part 2:
