AR68.10-P-1520T Remove/Install Cover Below Instrument Panel (Right)

AR68.10-P-1520T Remove/Install Cover Below Instrument Panel (Right)

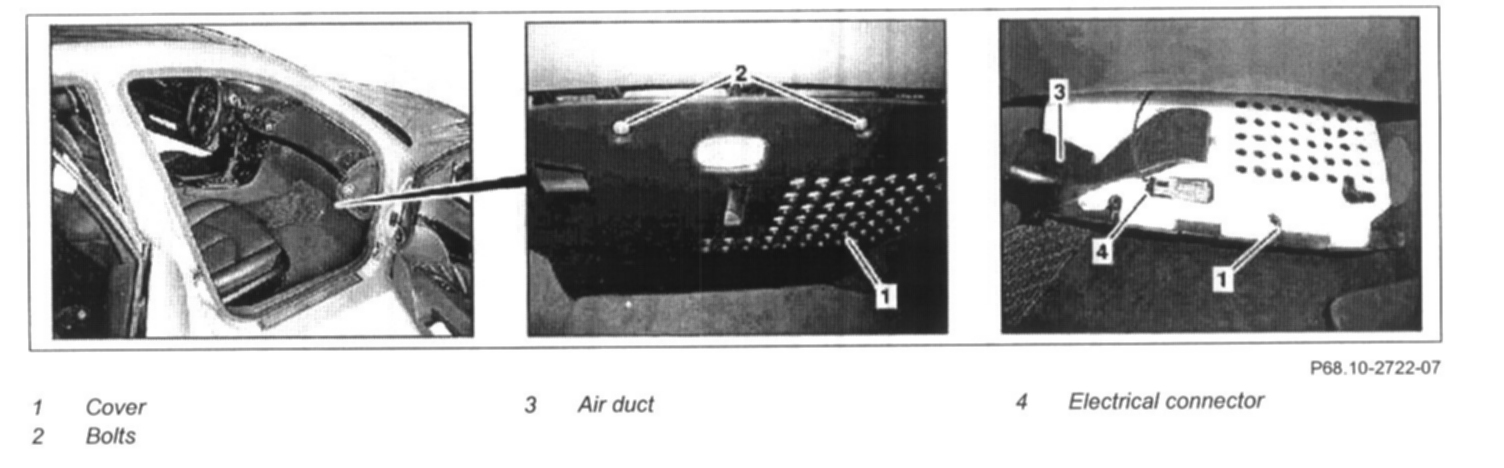

1 Move front passenger's seat all the way to the rear
2 Disconnect ground line of battery
3 Unscrew screws (2)
4 Fold cover (1) downward

NOTE: Installation: Ensure correct connection of air duct (3).

5 Disconnect electrical connector (4)
6 Remove cover (1) to the rear out of the footwell
7 Install in the reverse order
