AR68.10-P-1507T Remove/Install Bottom Section of Instrument Panel (Right)

AR68.10-P-1507T Remove/Install Bottom Section of Instrument Panel (Right)

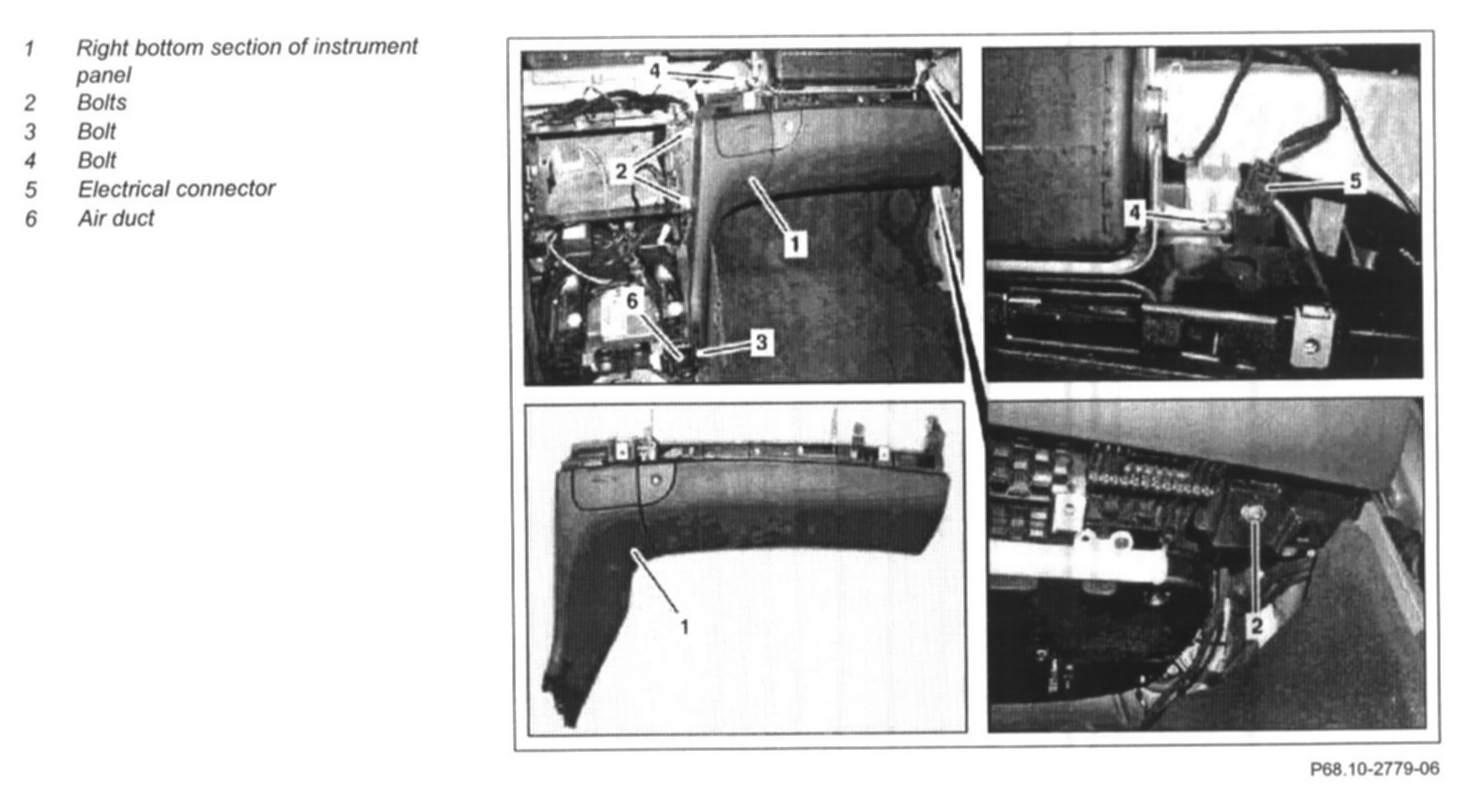

1 Remove top part of instrument panel
2 Remove stowage box

NOTE: Only remove as far as necessary until screw (3) is accessible.

3 Remove radio
4 Remove cover on right below instrument panel
5 Unscrew screws (2)
6 Unscrew screw (3).

DANGER:
- Risk of fire and explosion when machining magnesium components
- Keep away from source of ignition and naked flame.

NOTE: The cross member under the instrument panel is made of a magnesium alloy.

7 Unscrew bolts (4)

CAUTION: Information on machining magnesium components

8 Disconnect plug and socket connection (5)
9 Separate right bottom section of instrument panel (1) from air duct (6)
10 Remove right bottom section of instrument panel (1) and take out of vehicle
11 Install in the reverse order
