AR68.20-P-5701T Remove/Install Stowage Box Lid

AR68.20-P-5701T Remove/Install Stowage Box Lid
- without CODE (380) Preinstallation for MB phone 'CTEL'
- without CODE (381a) CP Light telephone system
- without CODE (382a) MB telephone 'CTEL' in armrest
- without CODE (383b) CP High telephone system

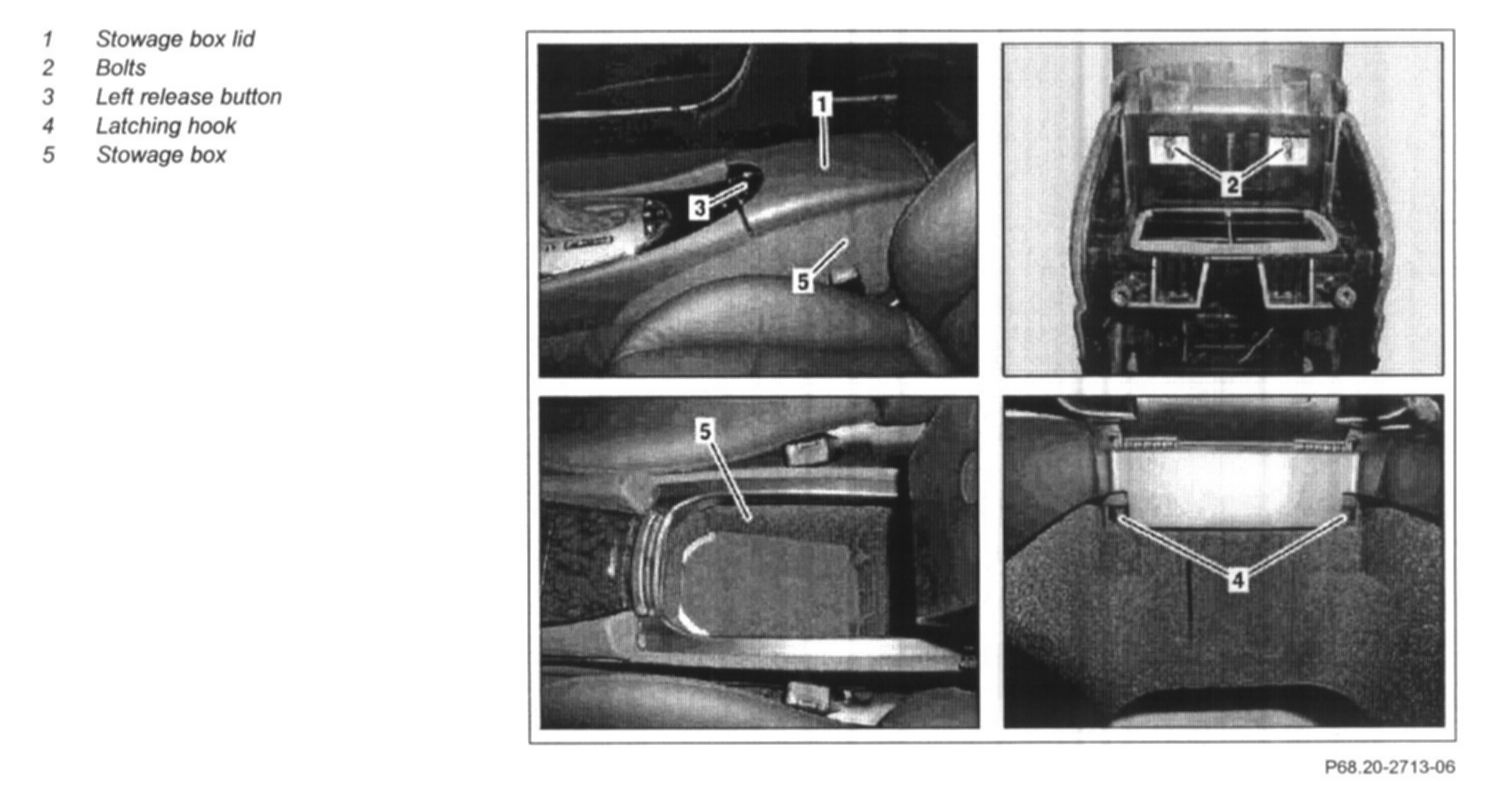

1 Remove rear center air nozzle in rear

NOTE: Only remove as far as necessary until screws (2) are accessible. Do not disconnect electrical connectors.

2 Unscrew screws (2)
3 Open stowage box cover (1)

NOTE: Press left release button (3).

4 Release catch hooks (4) using screwdriver and remove stowage box cover (1) upward from the stowage box (5)

CAUTION: Carefully release catch hooks (4), otherwise catch hooks (4) can break off.

5 Install in the reverse order
