AR68.20-P-2500T Remove/Install Stowage Compartment In Rear

AR68.20-P-2500T Remove/Install Stowage Compartment In Rear

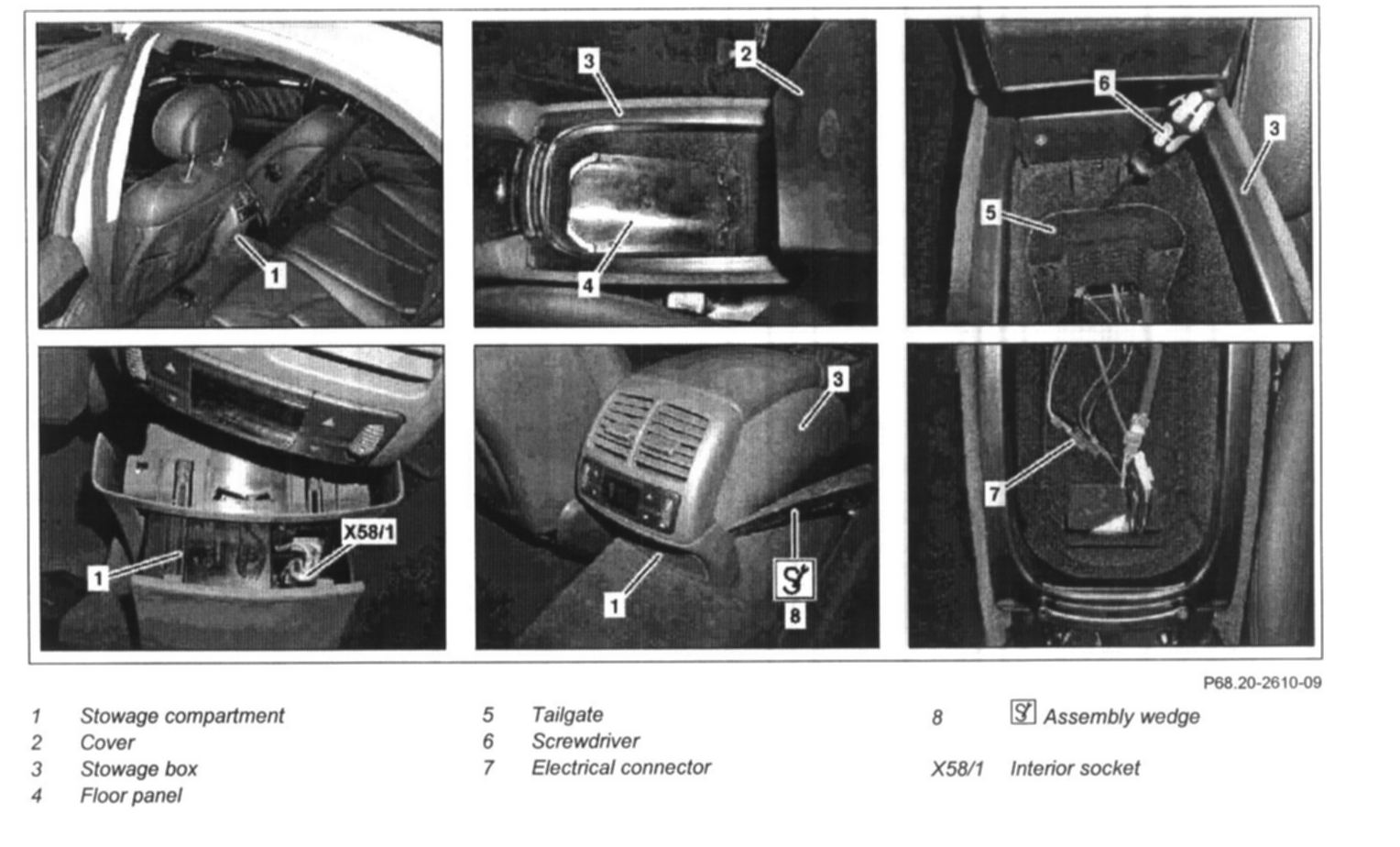

1 Move passenger seat completely toward front
2 Disconnect ground line of battery
3 Open cover (2) of stowage box (3)

NOTE: Actuate left release.

4 Remove insert from stowage box (3)
5 Pull out baseplate (4) using pulling hook

See "Special Tools" given below.

NOTE: Installation: Floor panel (4) must latch audibly.

6 Unclip rear wall (5) with screwdriver (6) from stowage box (3) and place in the stowage box (3) to the side
7 Disconnect electrical connector (7) from interior socket (X58/1)
8 With the assembly wedge (6) unclip the stowage compartment (1) from the stowage box (3) and remove

NOTE: At the same time pull the electrical lines of the interior socket (X58/1) out of the stowage box (3).

See "Special Tools" given below.

9 Install in the reverse order

Special Tools

AR68.20-P-2500T Remove/Install Stowage Compartment In Rear

Assembly Wedge, P/N # 110 589 03 59 00:

Pulling Hooks, P/N # 140 589 02 33 00:
