AR68.20-P-2350T Remove/Install Cover on Center Console

AR68.20-P-2350T Remove/Install Cover on Center Console







1 Disconnect ground line of battery

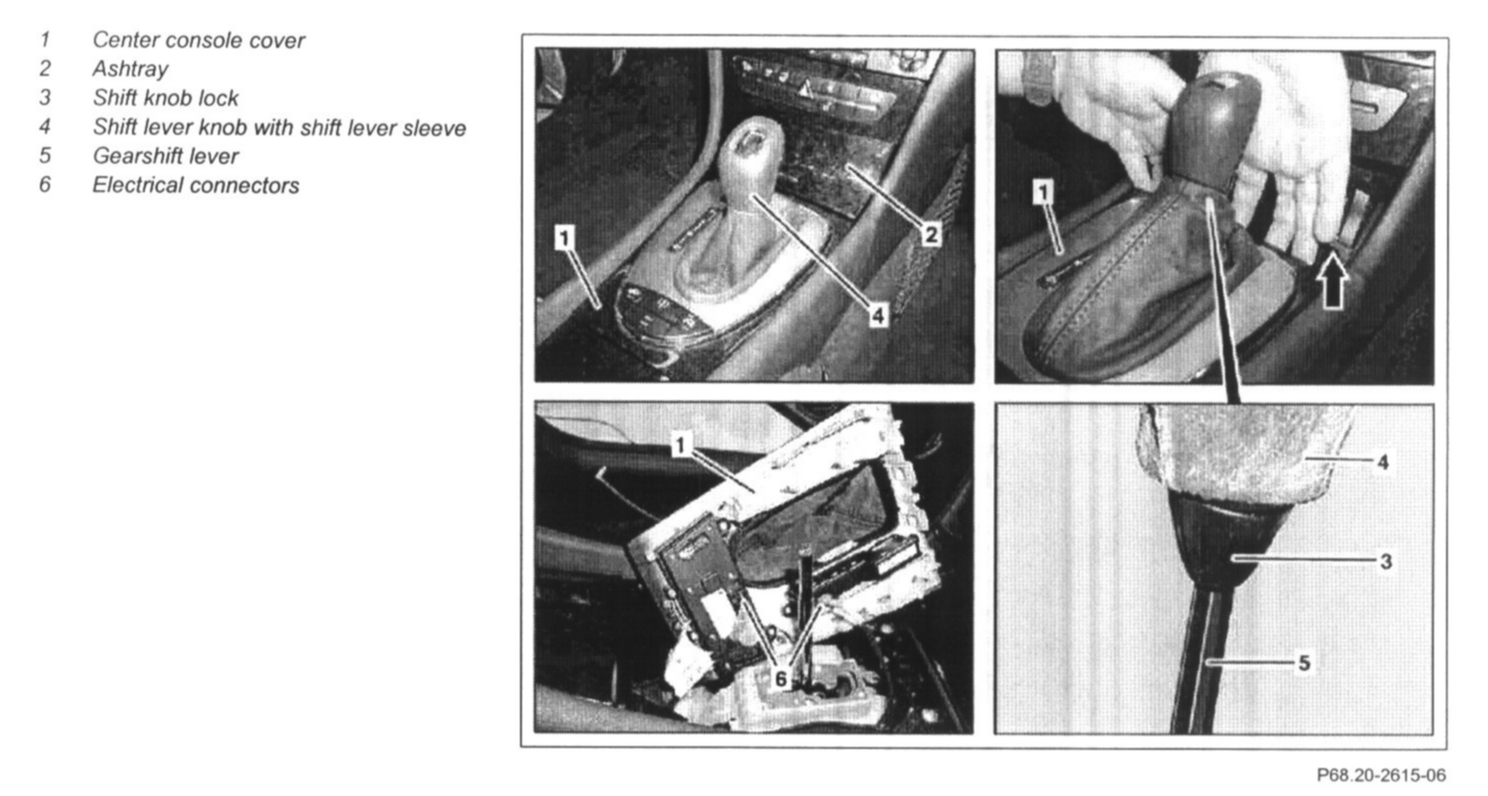

2 Open ashtray (2) and unclip the center console cover (1) in the direction of the arrow out of the center console
3 Release shift lever knob arresting mechanism (3) counterclockwise
4 Detach shift lever knob with shift lever sleeve (4) from gearshift lever (5)
5 Disconnect electrical connectors (6)

NOTE: Number of electrical connectors depend on equipment.

6 Remove center console cover (1) together with the shift lever knob with shift lever sleeve (4)
7 Press shift lever knob with shift lever sleeve (4) out of the center console cover (1)
8 Install in the reverse order
