AR68.20-P-2310T Remove/Install Gearshift Lever Cover

AR68.20-P-2310T Remove/Install Gearshift Lever Cover

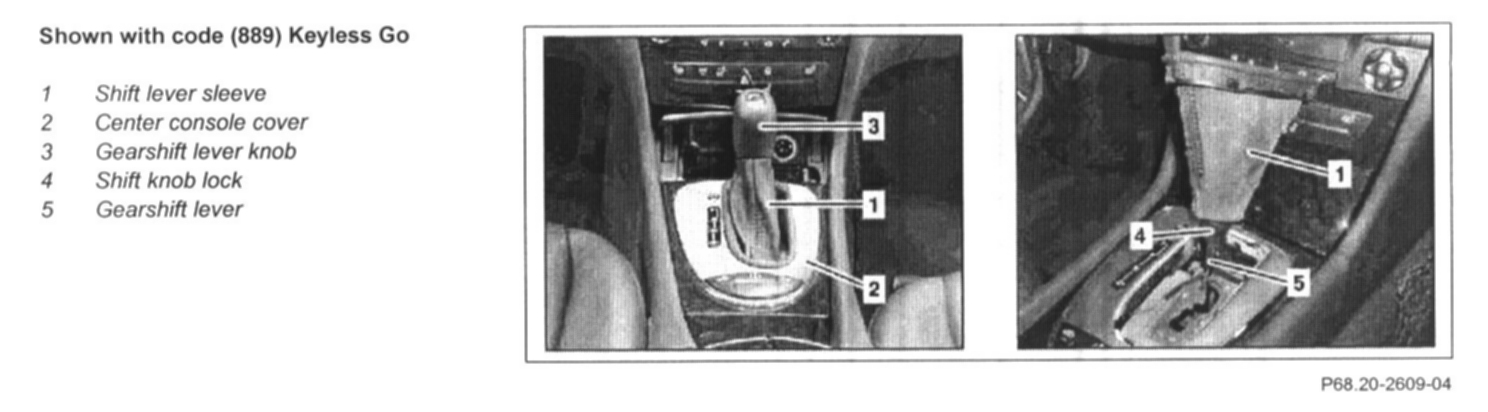

Shown With Code (889) Keyless Go:

1 Disconnect ground line of battery
2 Unclip shift lever boot (1) from center console cover (2) with long wedge

See "Special Tools" given below.

3 Pull shift lever boot (1) over shift knob (3)
4 Release shift knob lock (4) by turning clockwise
5 Remove shift knob (3) from shift lever (5) together with shift lever boot (1)
6 Install in the reverse order

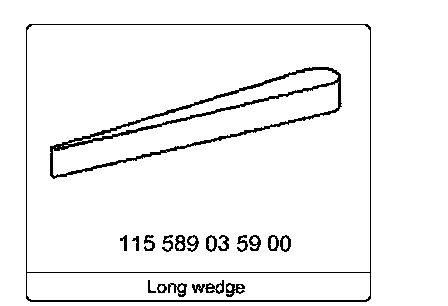

Special Tools

Long Wedge, P/N # 115 589 03 00:
