AR68.20-P-2000T Remove/Install Center Console
AR68.20-P-2000T Remove/Install Center Console
AR68.20-P-2000T Remove/Install Center Console

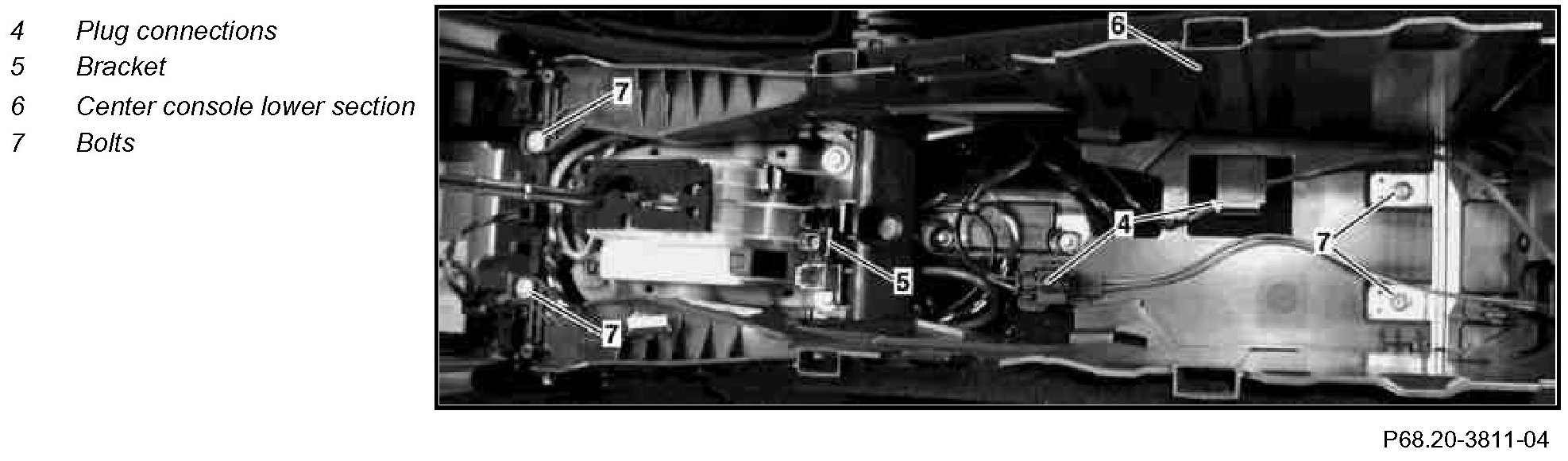

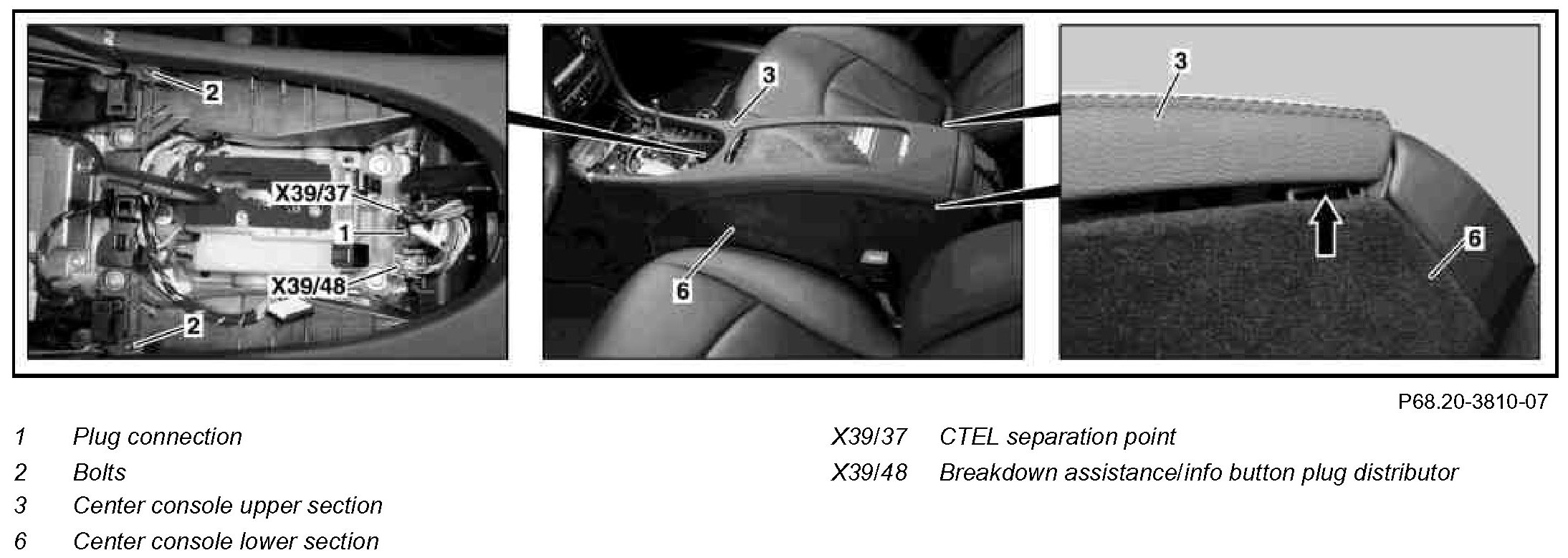

Component Identification:
Component Identification:

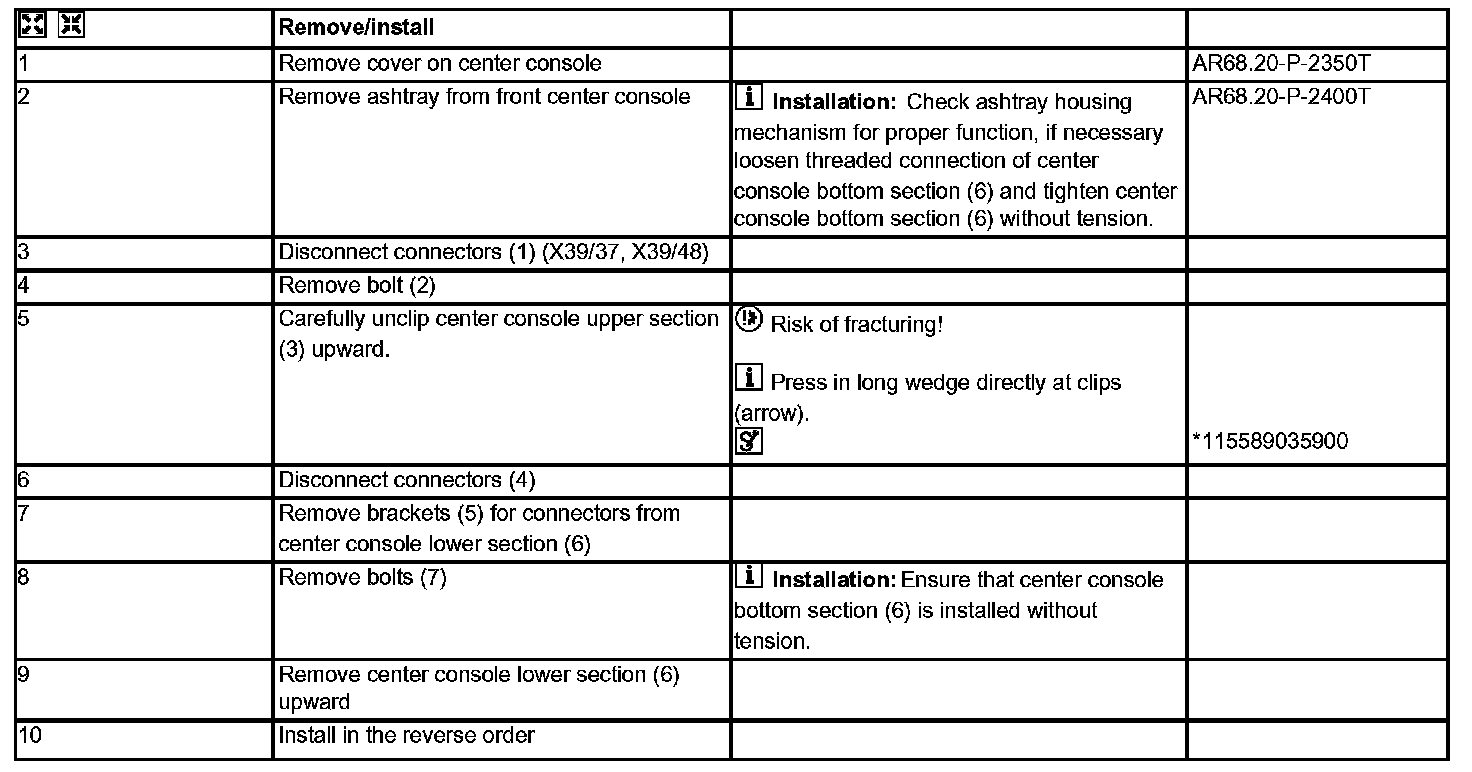

Steps 1 - 10:
Special Tools:
