AR68.10-P-1620T Remove/Install Center Stowage Compartment

AR68.10-P-1620T Remove/Install Center Stowage Compartment

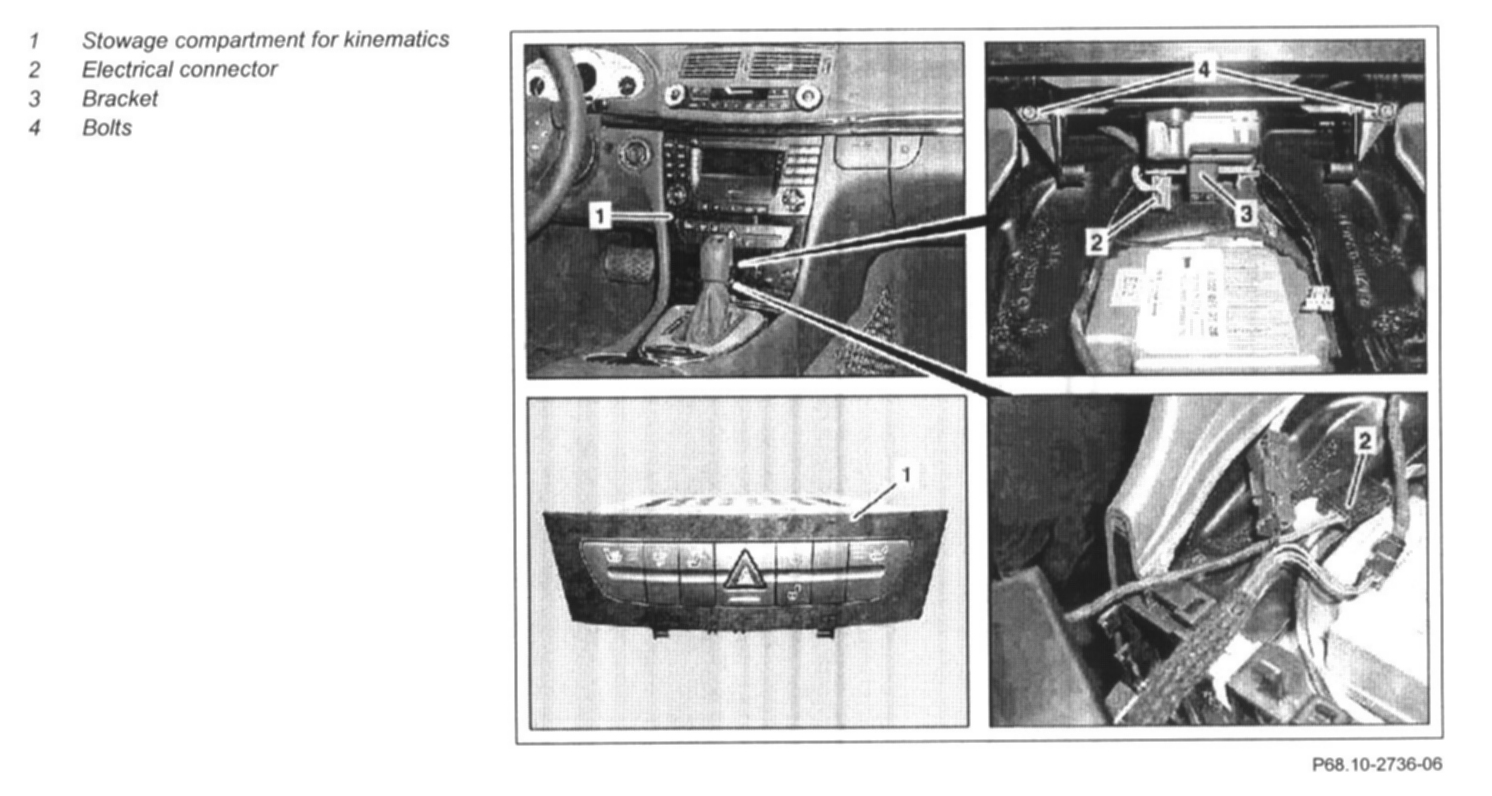

1 Remove ashtray from front center console
2 Unclip electrical connector (2) out of the bracket (3)
3 Unscrew bolts (4)
4 Pull stowage compartment for kinematics (1) out of the center console

NOTE: Until the electrical connector (2) is accessible.

5 Unplug electrical connector (2) and remove stowage compartment for kinematics (1).

NOTE: When replacing stowage compartment for kinematics (1), modify detachable body components.

6 Install in the reverse order
