Interior - Front Ashtray Rubbing Noises

Date: October 2, 2006
Order No.: P-B-68.20/62
Supersedes:
Group: 68

SUBJECT:
Model 211.026/065/070/076/082/083/265/282/283, Up to VIN A610907 and X165861

Front Ashtray Rubbing Noise

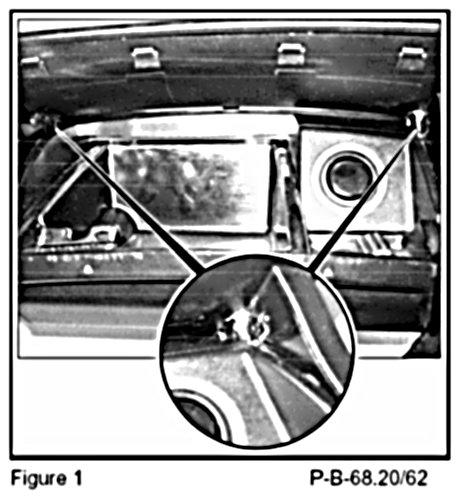

If you receive customer reports in the above model vehicles regarding rubbing noises from the front ashtray, this may be caused by the support brackets for the ashtray cover rubbing against the side of the housing. To resolve, grease the left and right brackets (Figure 1, detail).

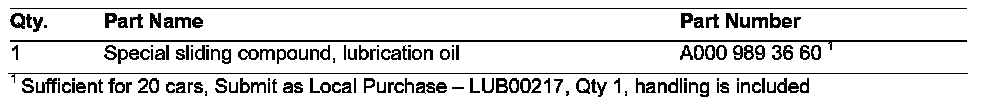

Parts Information





NOTE:
The following allowable labor operations should be used when submitting a warranty claim for this repair

In Case of Warranty





Operation:
Noises at front ashtray, eliminate (02-5287)
