AP31.11-P-3152T Check Condition and Operation of Trailer Hitch



AP31.11-P-3152T Check Condition And Operation Of Trailer Hitch
- with CODE (550) Trailer hitch

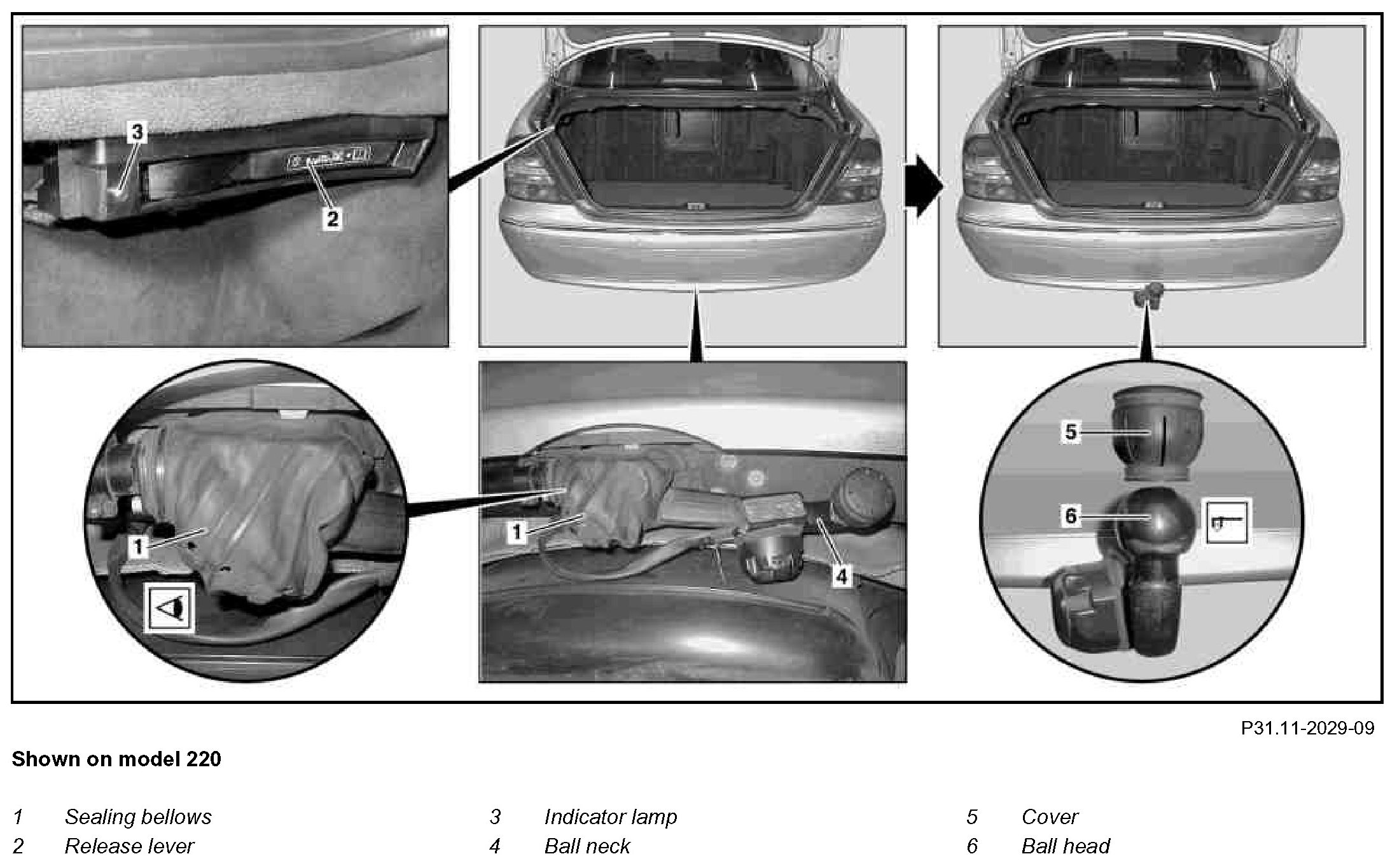

Component Identification:

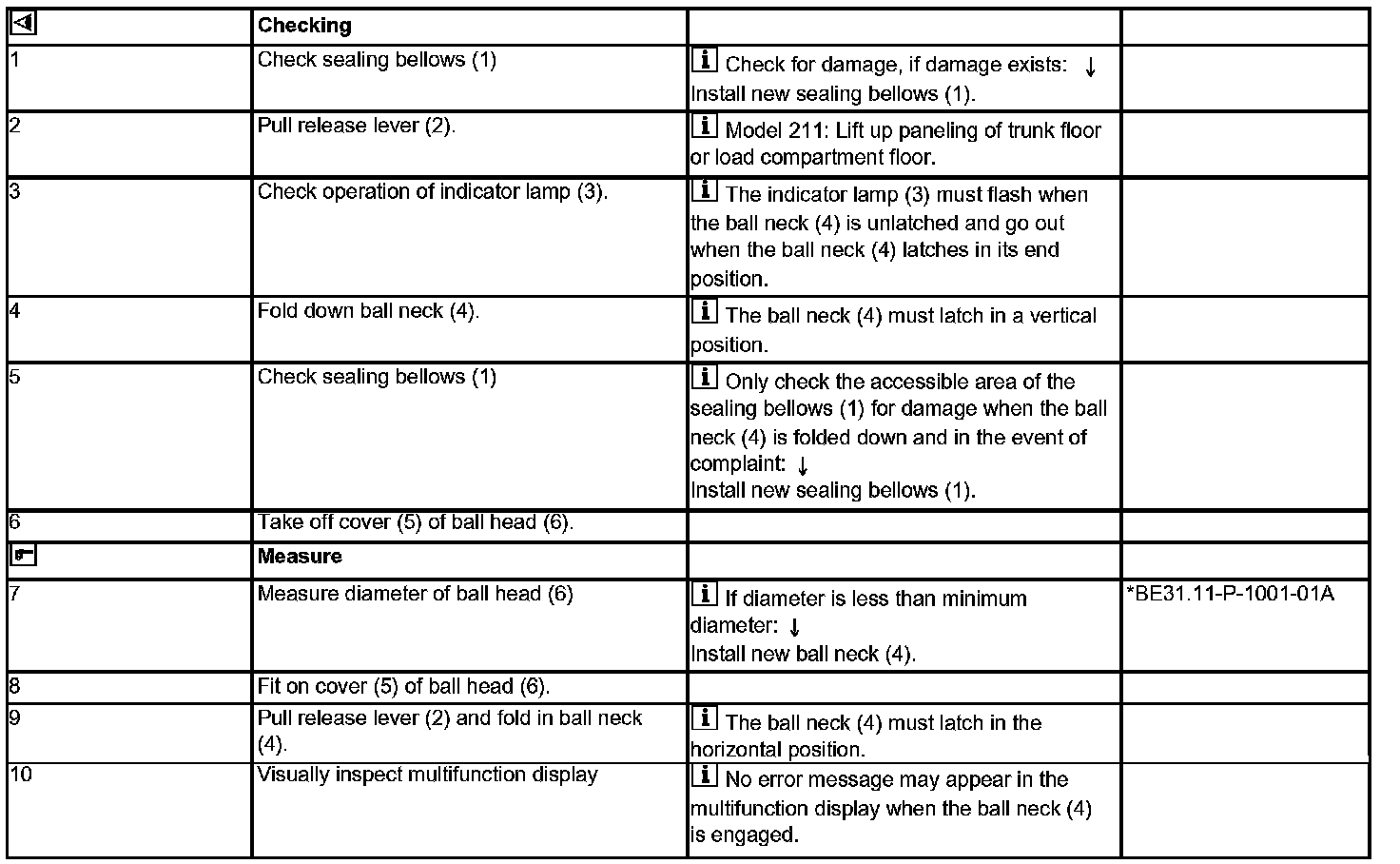

Steps 1 - 10:

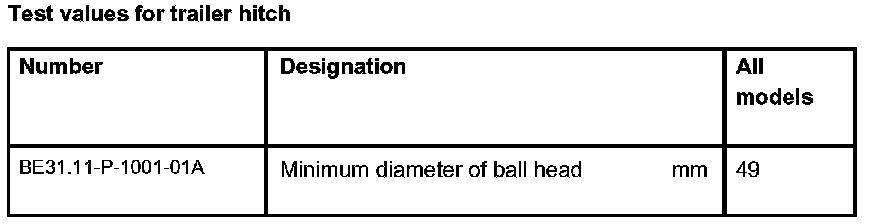

Test Values For Trailer Hitch:
