AR31.30-P-0007T Remove/Install Trailer Hitch Crossmember



AR31.30-P-0007T Remove/Install Trailer Hitch Crossmember
- with CODE (550) Trailer hitch
- except CODE (772) AMG styling package - front spoiler, side skirts and rear apron

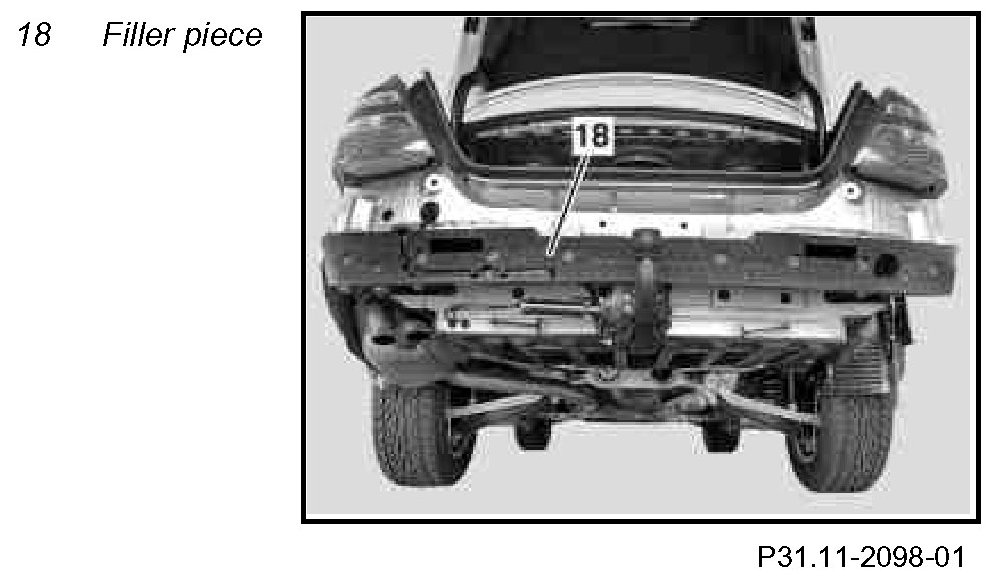

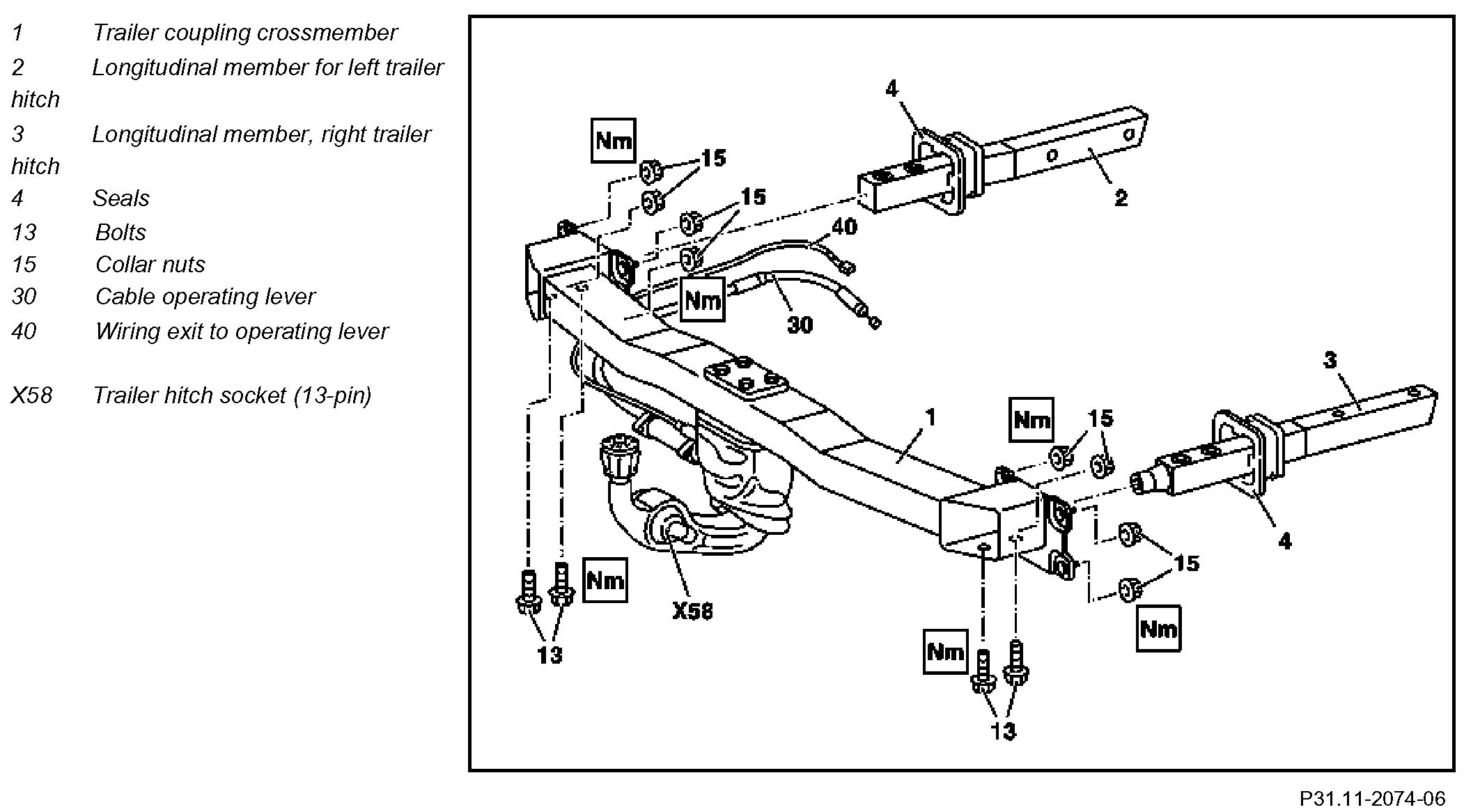

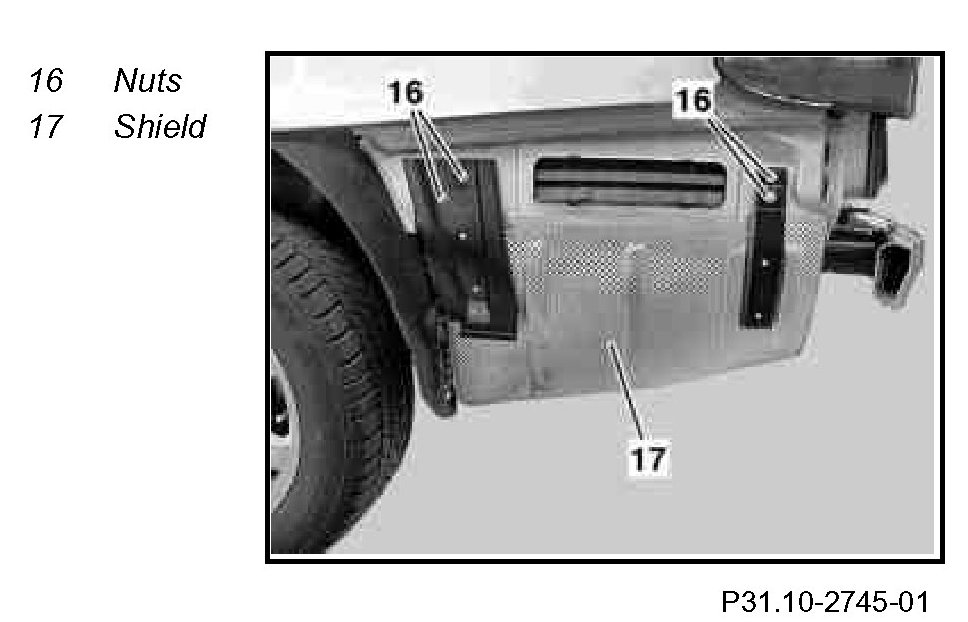

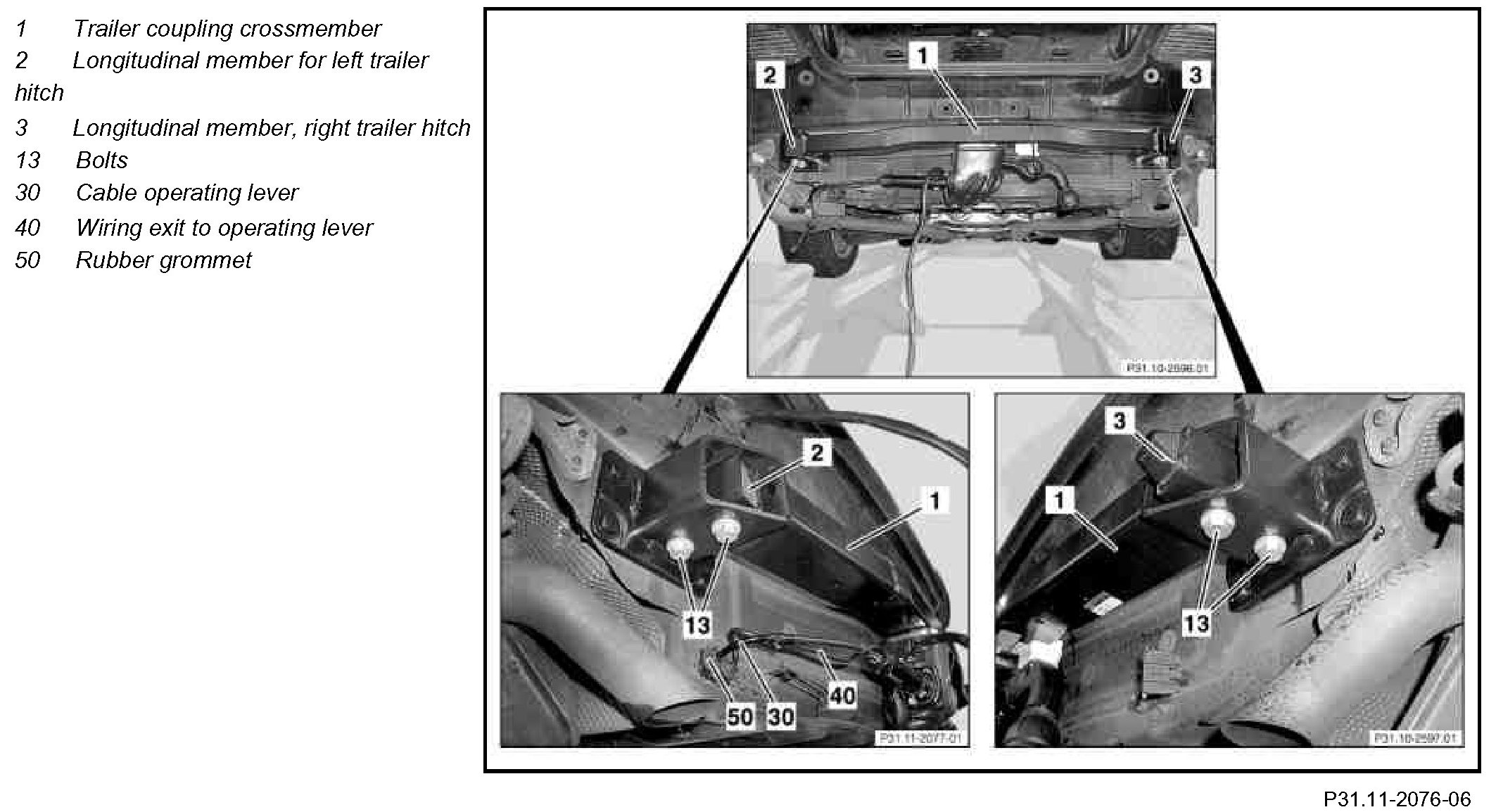

Component Identification:




Component Identification:




Component Identification:




Component Identification:




Component Identification:




Modification Notes:

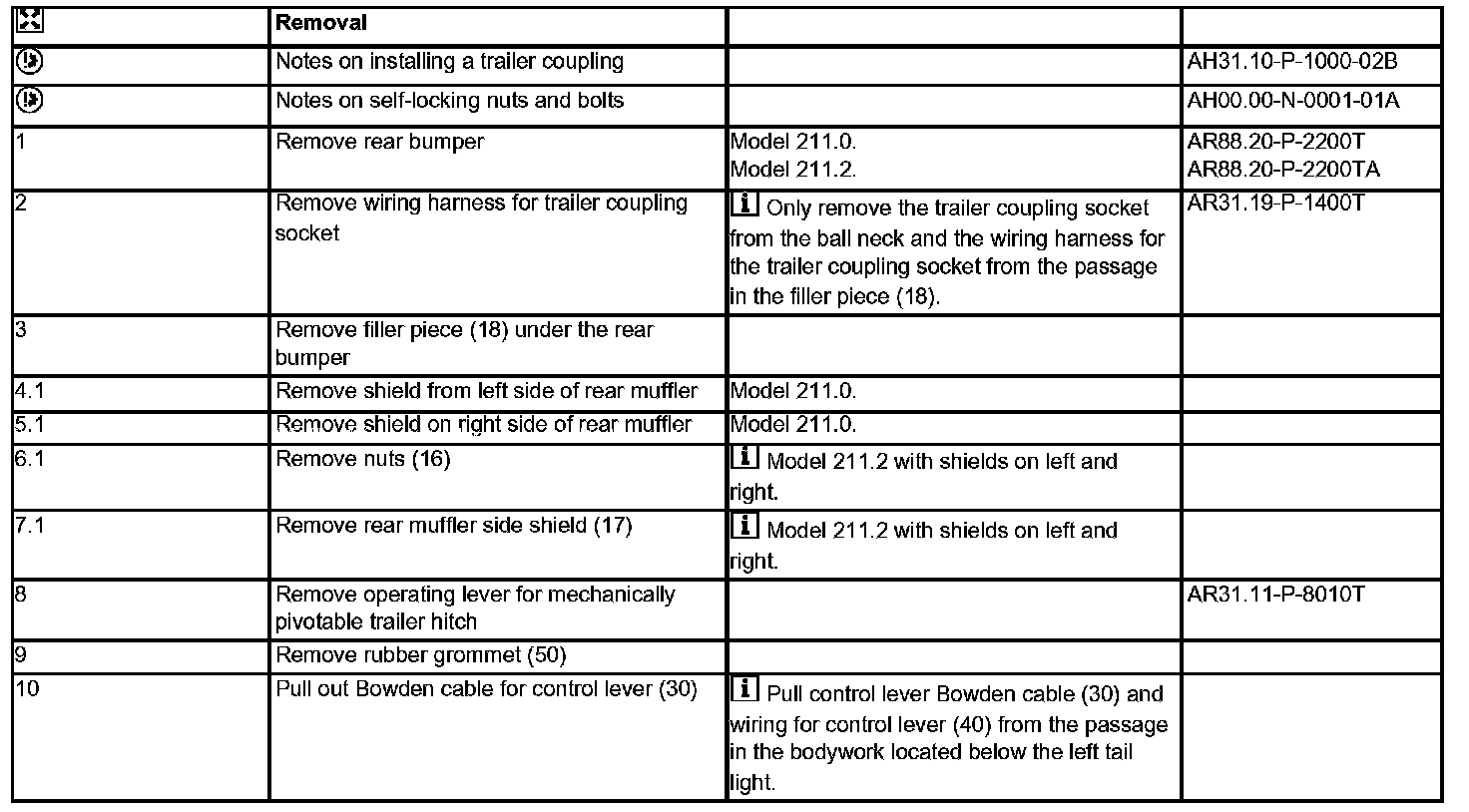

Steps 1 - 10:

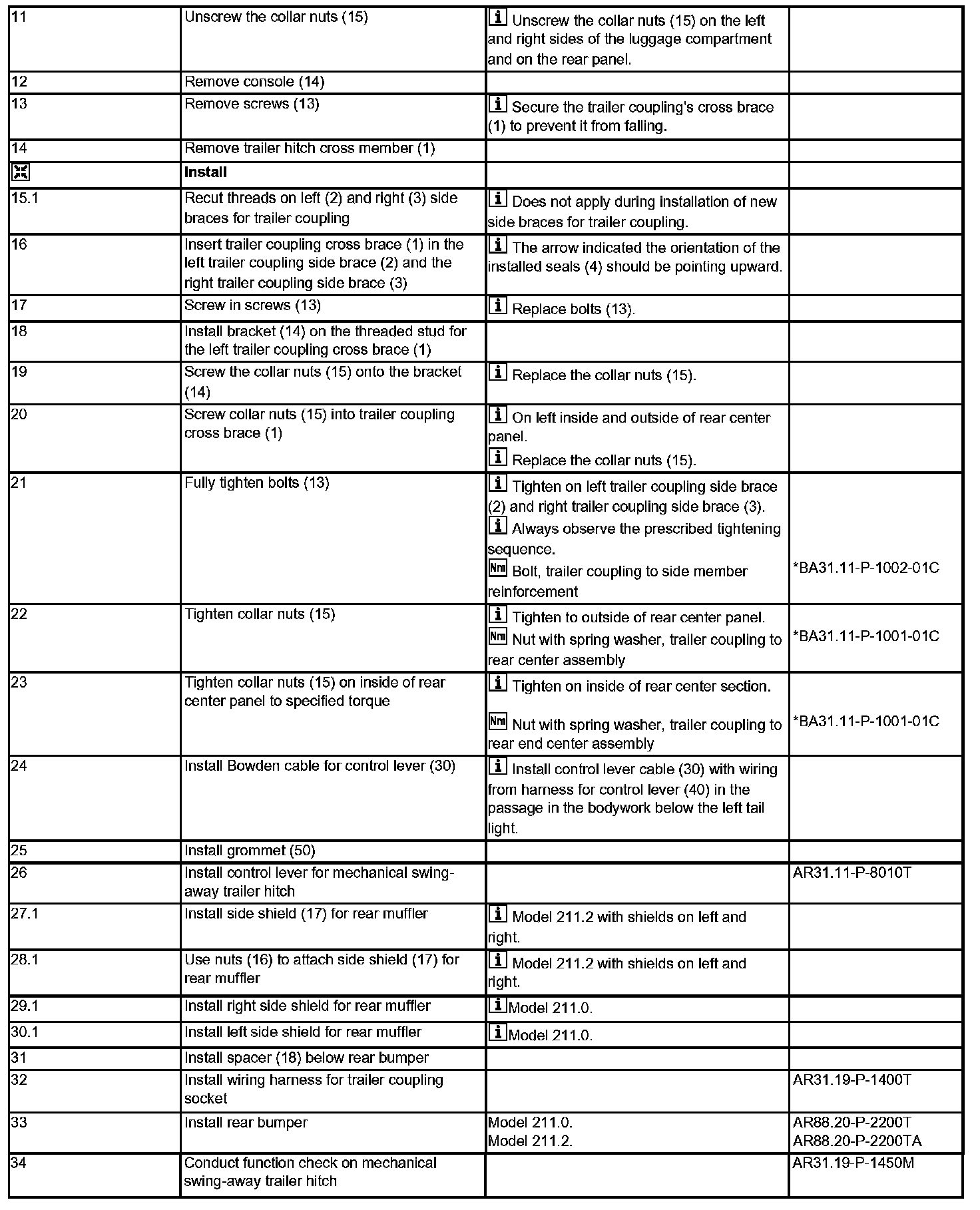

Steps 11 - 34:

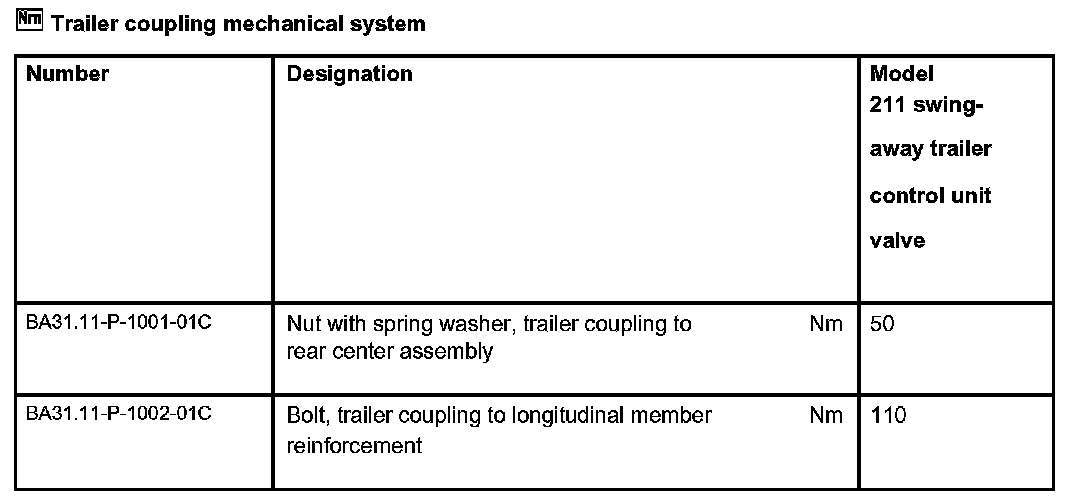

Trailer Coupling Mechanical System:
