AR31.30-P-0006T Remove/Install Right Trailer Hitch Longitudinal Member



AR31.30-P-0006T Remove/Install Right Trailer Hitch Longitudinal Member
- with CODE (550) Trailer hitch
- except CODE (772) AMG styling package - front spoiler, side skirts and rear apron

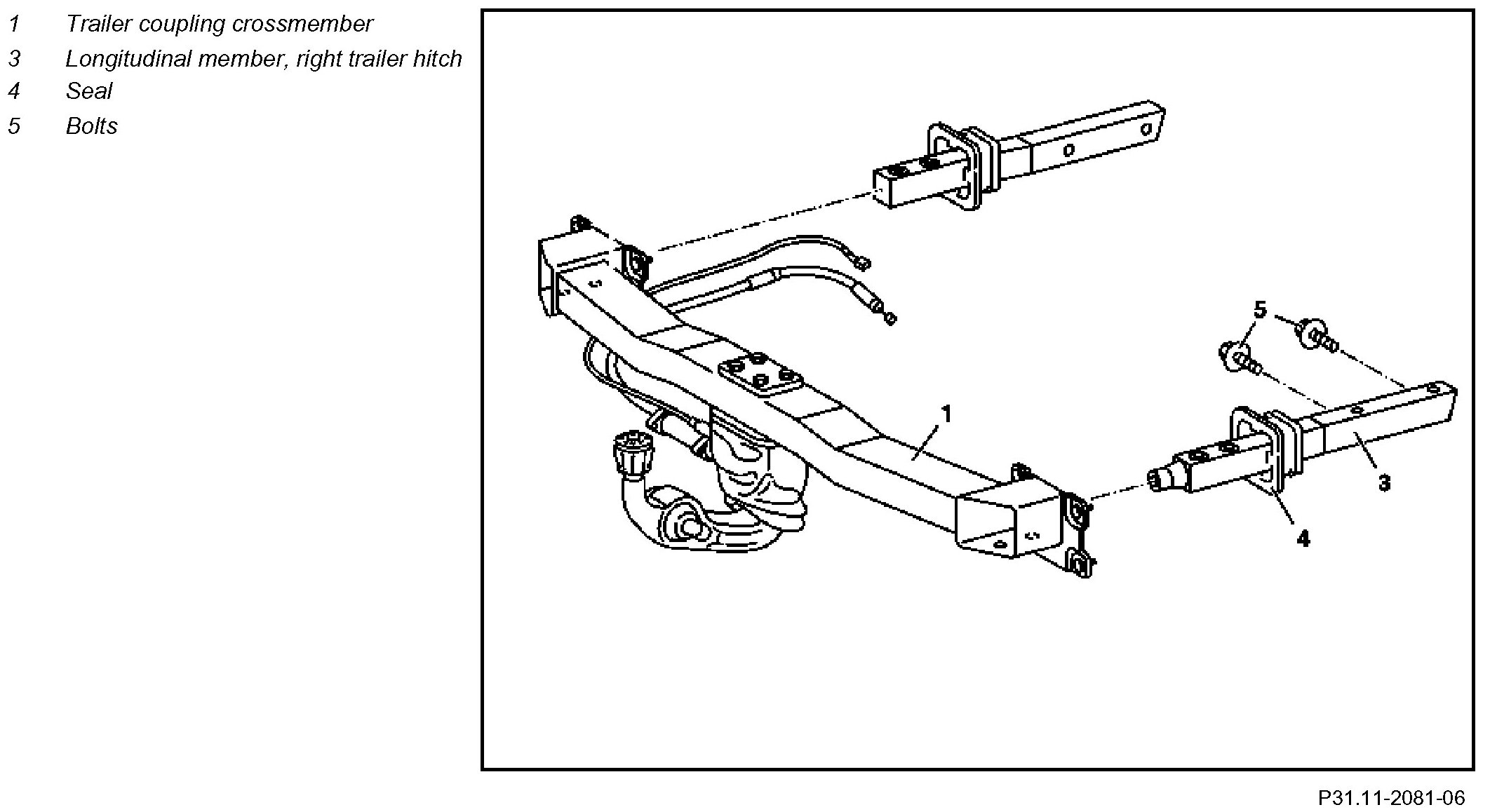

Component Identification:

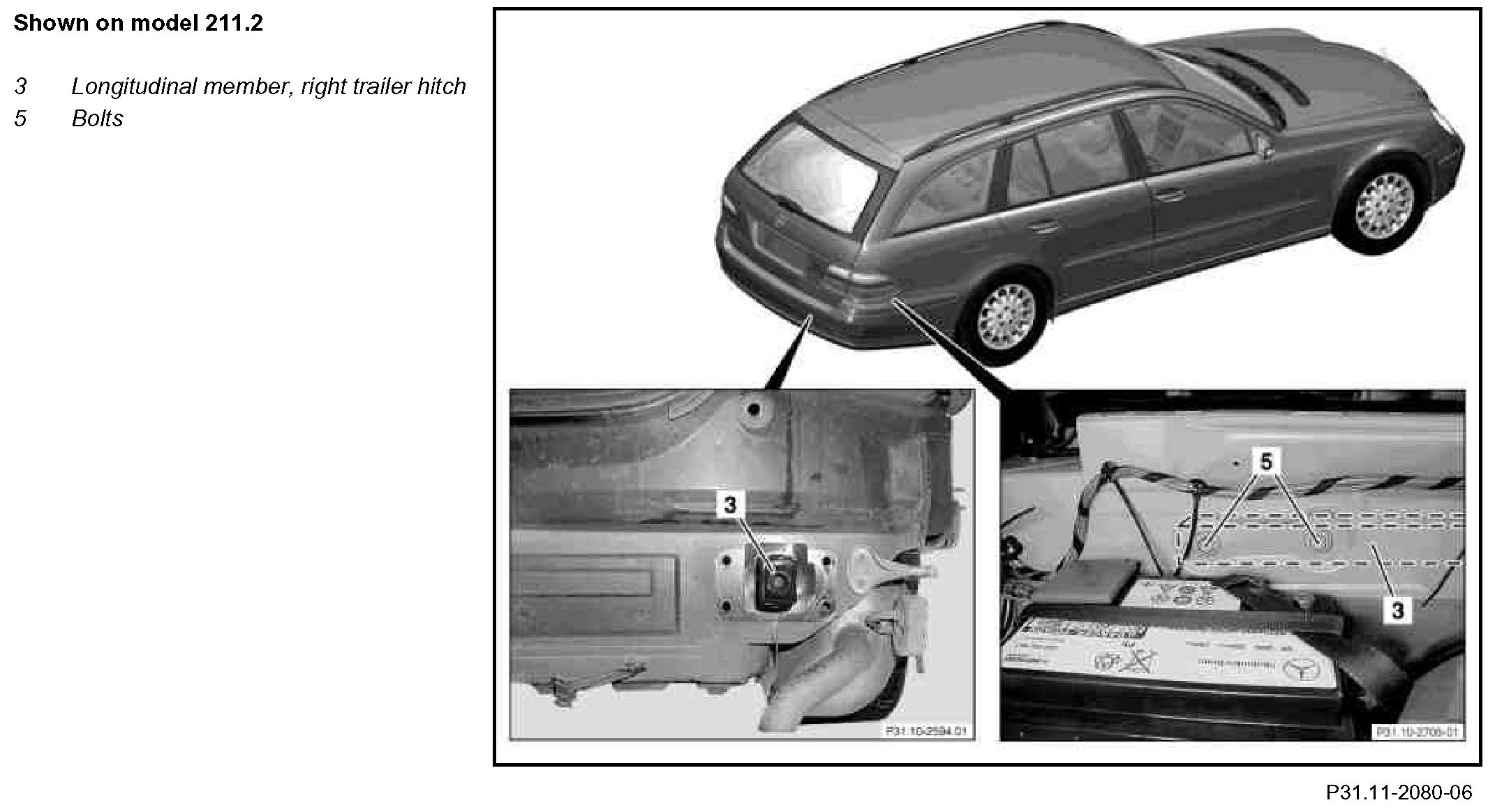

Component Identification:




Modification Notes:

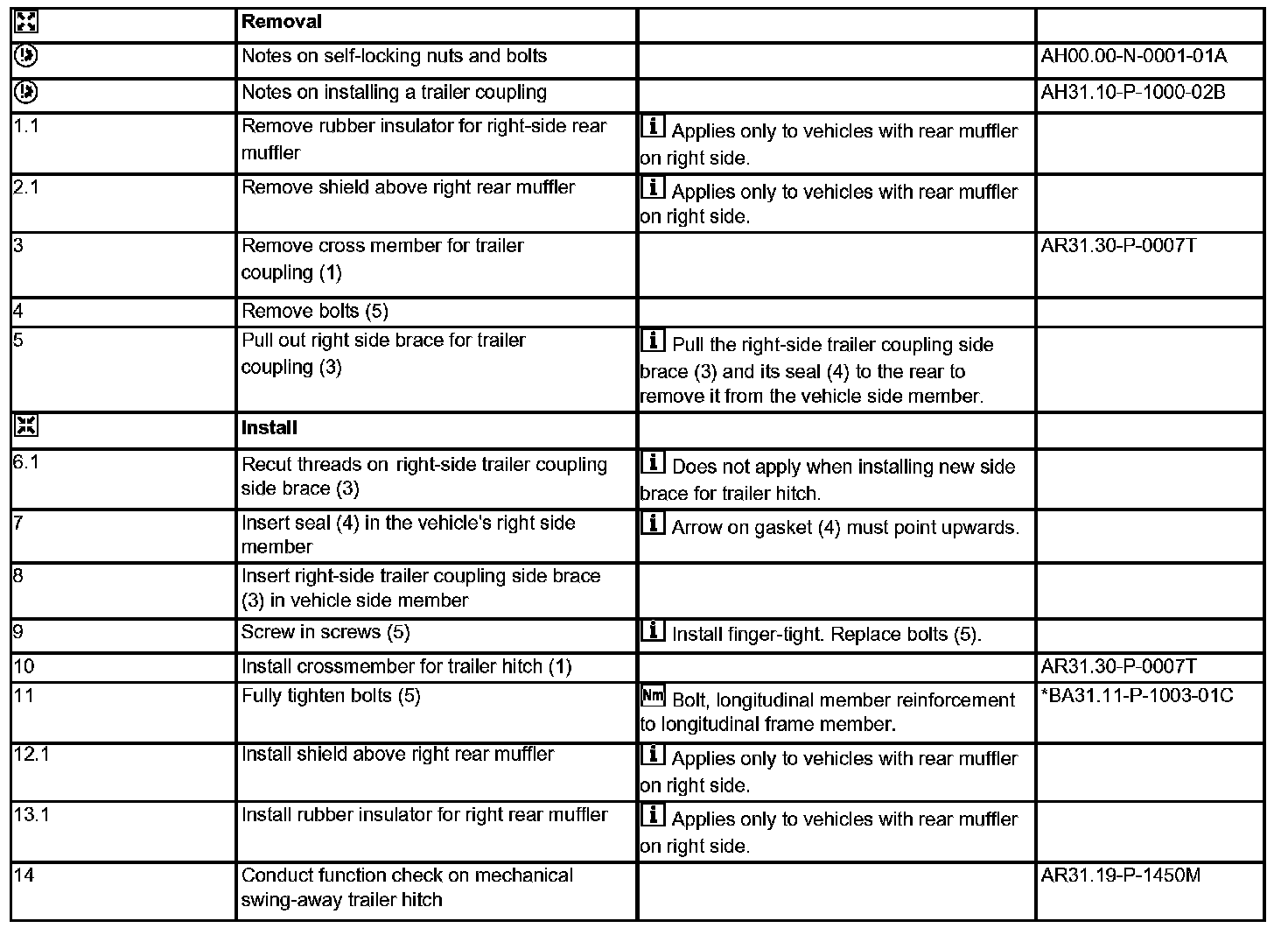

Steps 1.1 - 14:

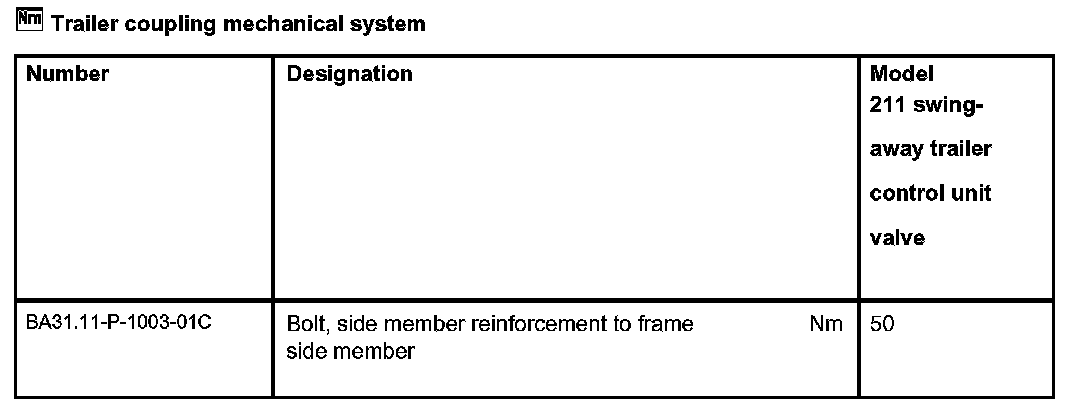

Trailer Coupling Mechanical System:
