AR31.10-P-8000TT Remove/Install Trailer Hitch



AR31.10-P-8000TT Remove/Install Trailer Hitch
- with CODE (550) Trailer hitch
- except CODE (772) AMG styling package - front spoiler, side skirts and rear apron

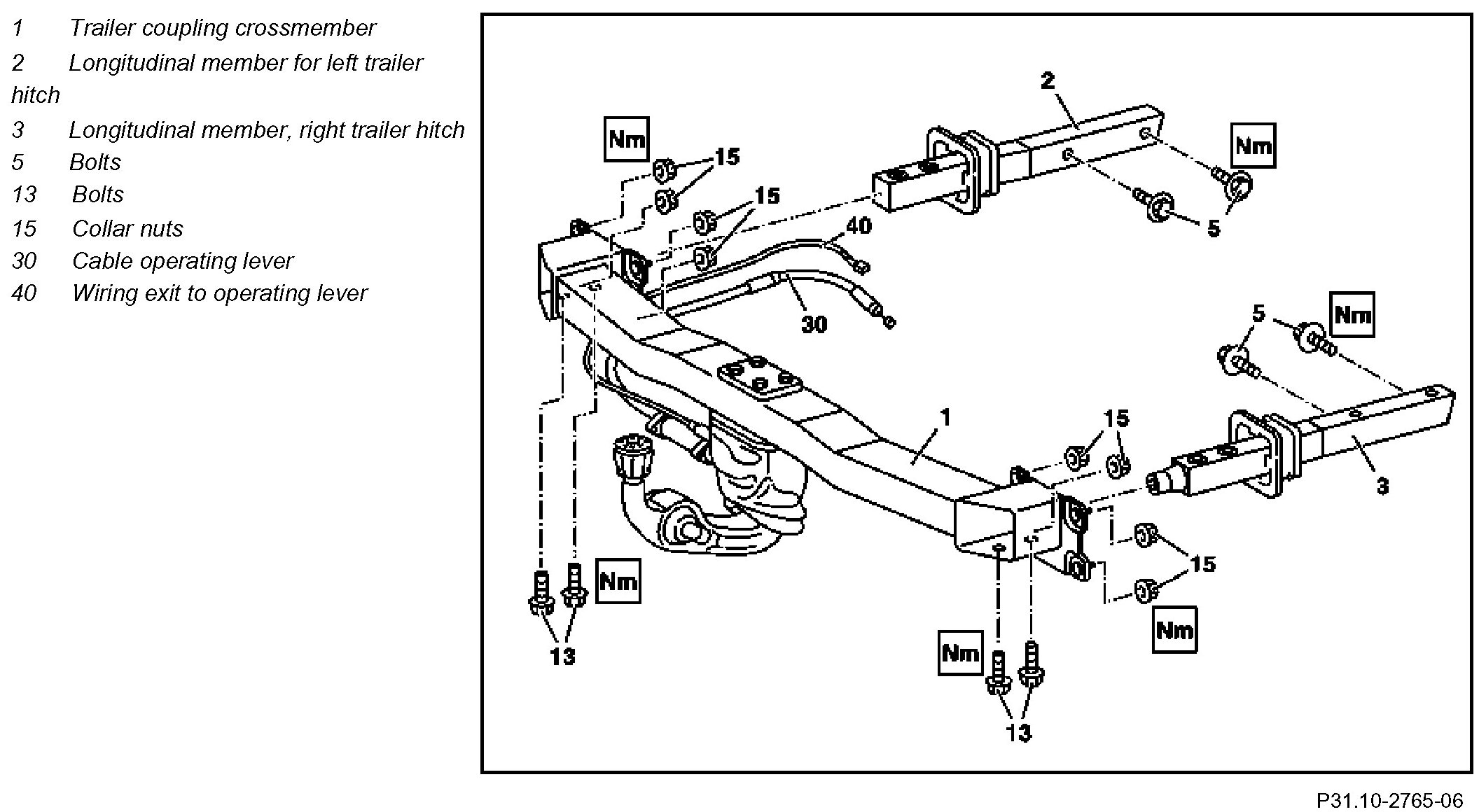

Component Identification:




Modification Notes:

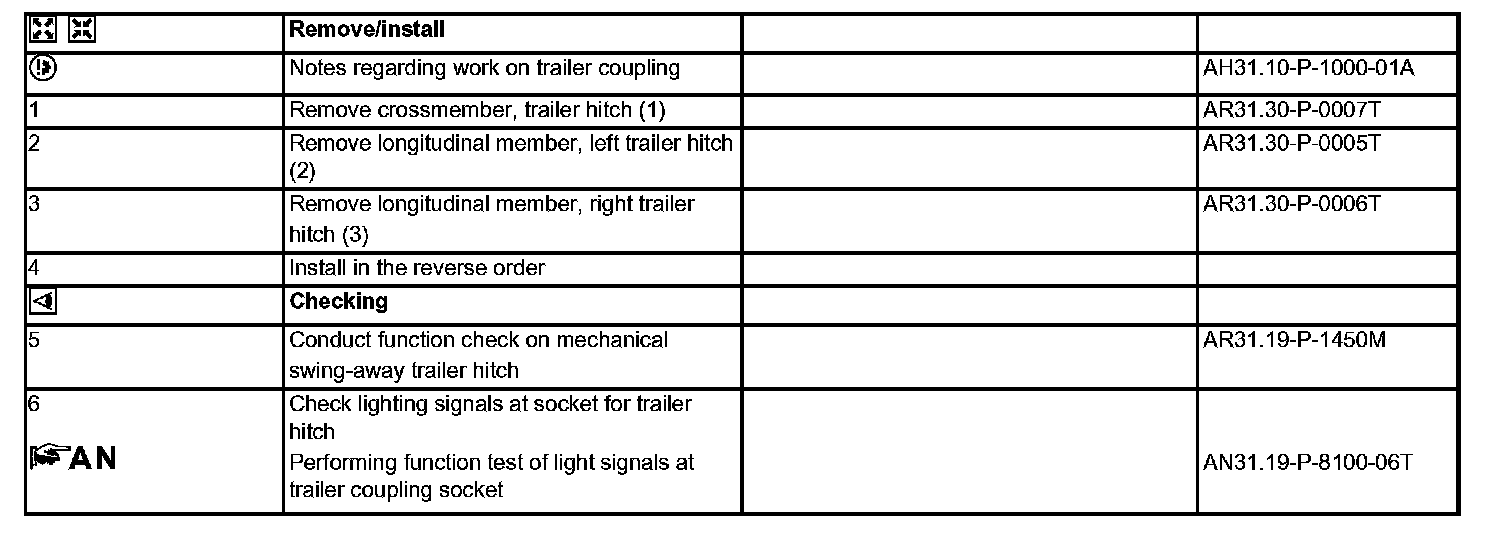

Steps 1 - 6:
