AN31.19-P-8080-05T Retrofit Trailer Coupling Control Unit

AN31.19-P-8080-05T Retrofit Trailer Coupling Control Unit
- 211.0##/0## (except 211.076/077) 1#







1. Remove M6 nut (26) from bracket for rear SAM control unit with fuse and relay module (N10/2).
Only on vehicles without code (220) Parktronic system (PTS), without code (475) Tire pressure monitor (Beru), without code (527) COMAND APS (with navigation), without code (860) TV tuner and without code (889) Keyless Go.

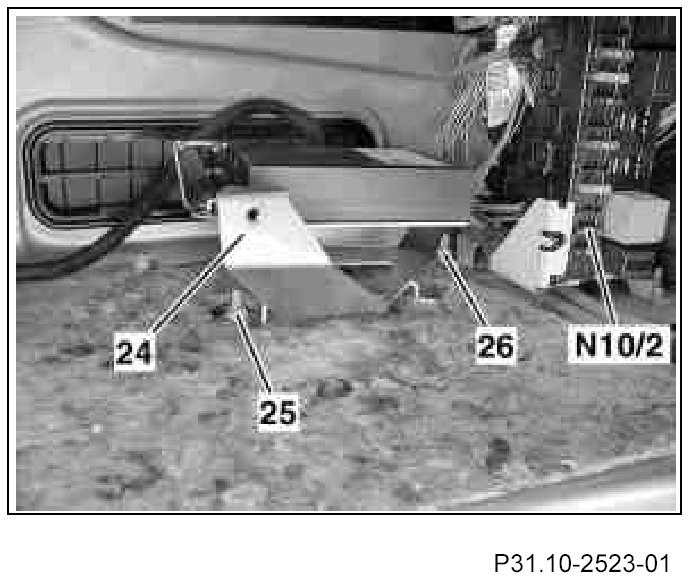

2. Mount bracket (24) on existing body bolts and assemble with nut M6 (26) and a nut M6 (25).
Only on vehicles without code (220) Parktronic system (PTS), without code (475) Tire pressure monitor (Beru), without code (527) COMAND APS (with navigation), without code (860) TV tuner and without code (889) Keyless Go.

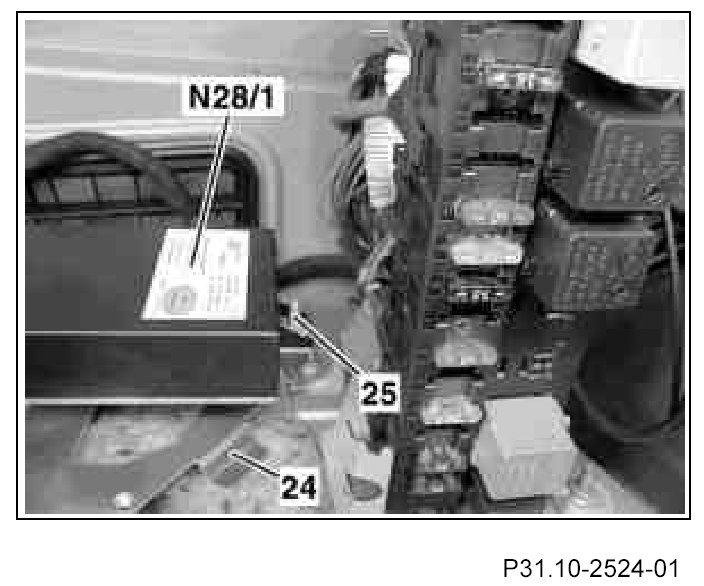

3. Fit the trailer connection unit [AAG] control unit (N28/1) on bracket (24) and secure it with an M6 nut (25).
