AN31.11-P-8080-06T Retrofit Release Lever

AN31.11-P-8080-06T Retrofit Release Lever
- 211.0##/0## (except 211.076/077) 1#

Trailer Hitch Mechanical System:

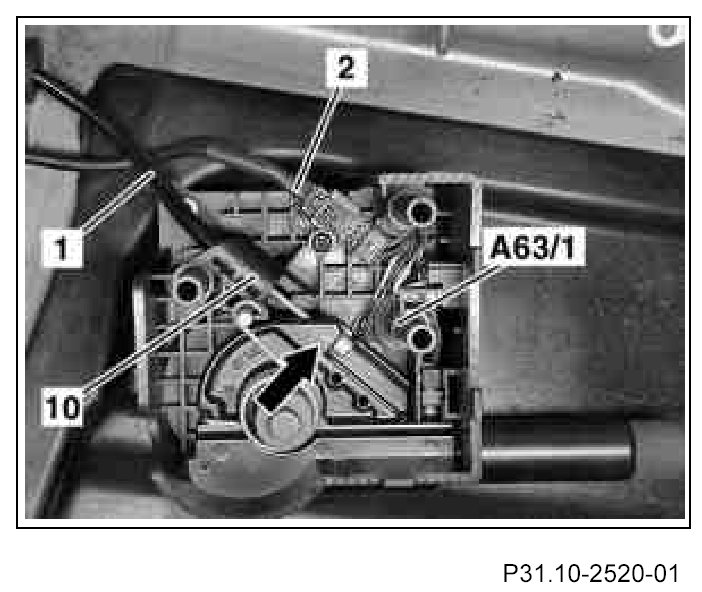

1. Pull out cable (1) as far as the end stop and insert in the cutout (arrow) of the trailer connection unit control panel (A63/1).
2. Guide control cable (1) into bush (10) from behind.
The cable (1) must seat in the bushing as far as the end stop (10).

3. Connect 3-pin connector from release switch wiring harness (2) on rear of trailer connection unit operating unit (A63/1).

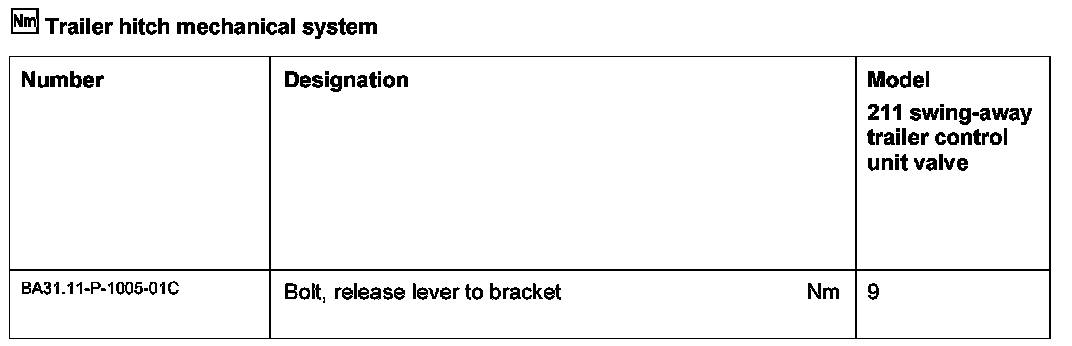

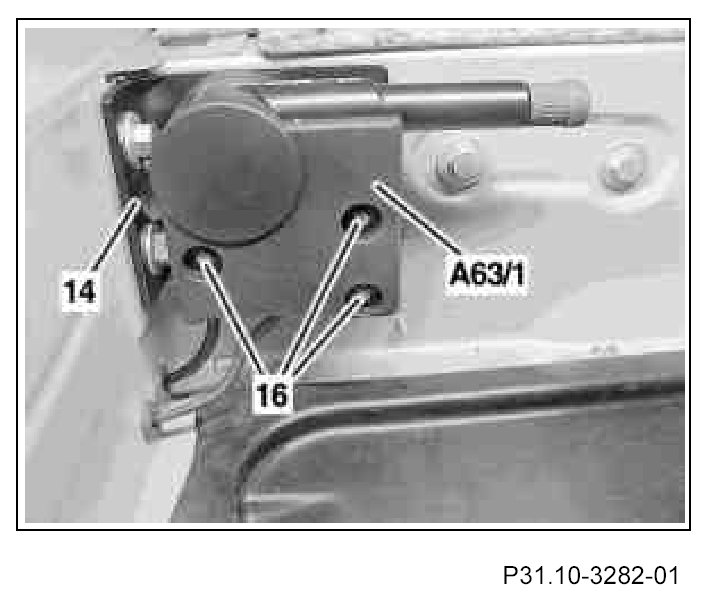

4. Mount trailer connection unit control panel (A63/1) on mounting console (14) as per picture and tighten to the specified torque with three bolts M6 x 55 (16).
The transport lock on the swiveling ball neck can now be removed.
