Home
>>
Mercedes Benz
>>
2007
>>
E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Frame
>>
Subframe
>>
Front Subframe
>>
Service and Repair
>>
Removal and Replacement
>>

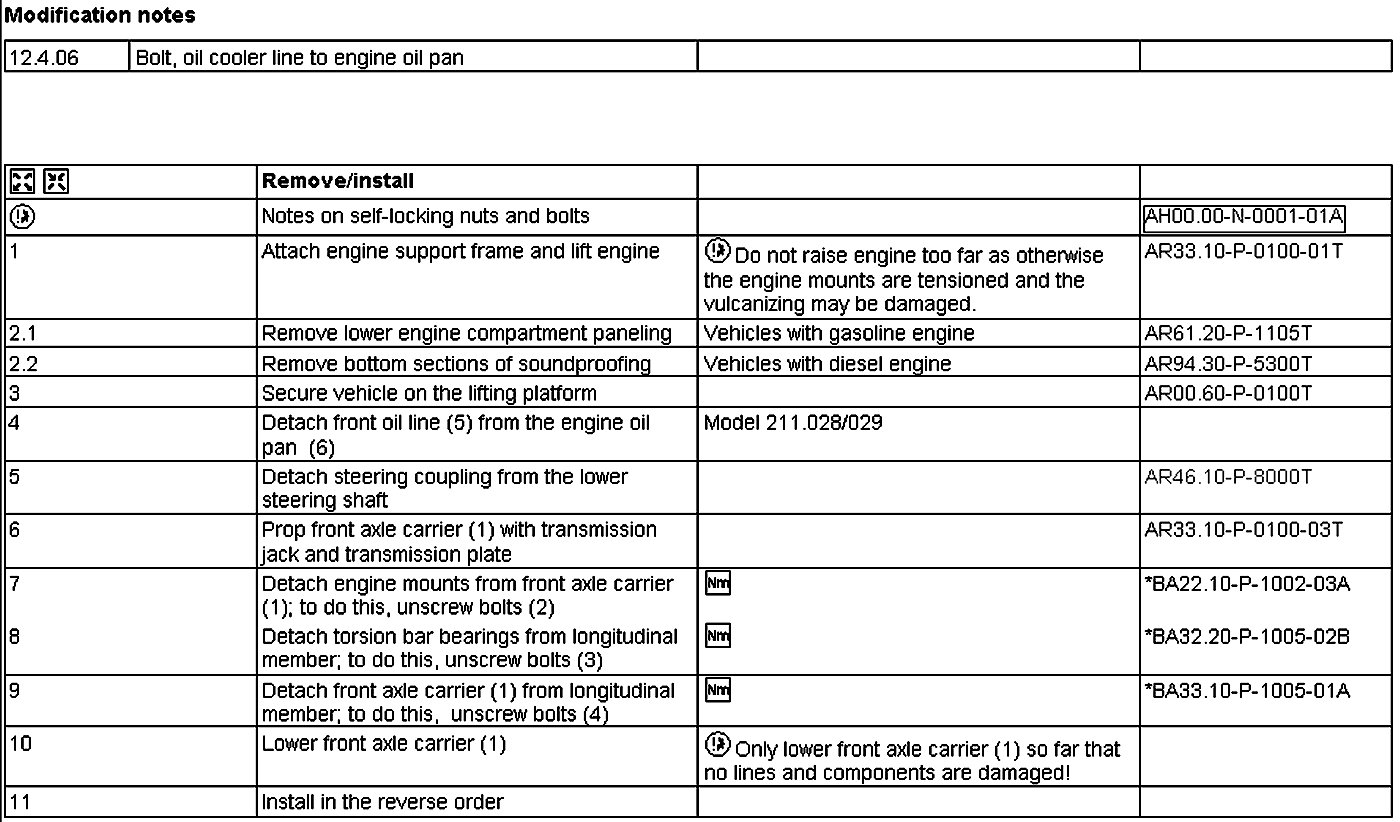

AR33.10-P-0101T Lower Front Axle
AR33.10-P-0101T Lower Front Axle
AR33.10-P-0101T Lower Front Axle
