AR88.10-P-1300T Remove/Install Fender Liner In Front Fender
AR88.10-P-1300T Remove/Install Fender Liner In Front Fender
AR88.10-P-1300T Remove/Install
Fender
Liner In Front Fender

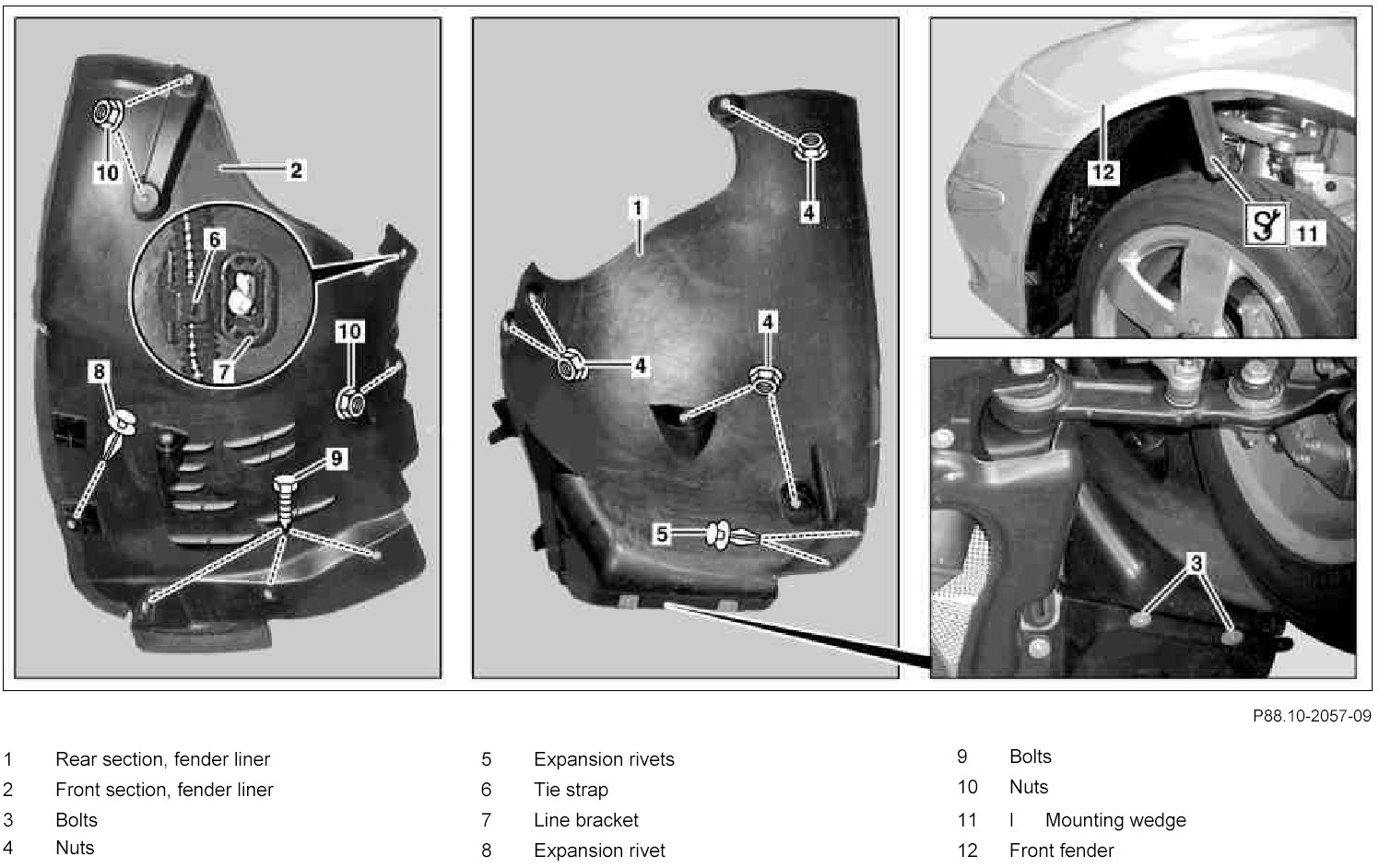

Component Identification:

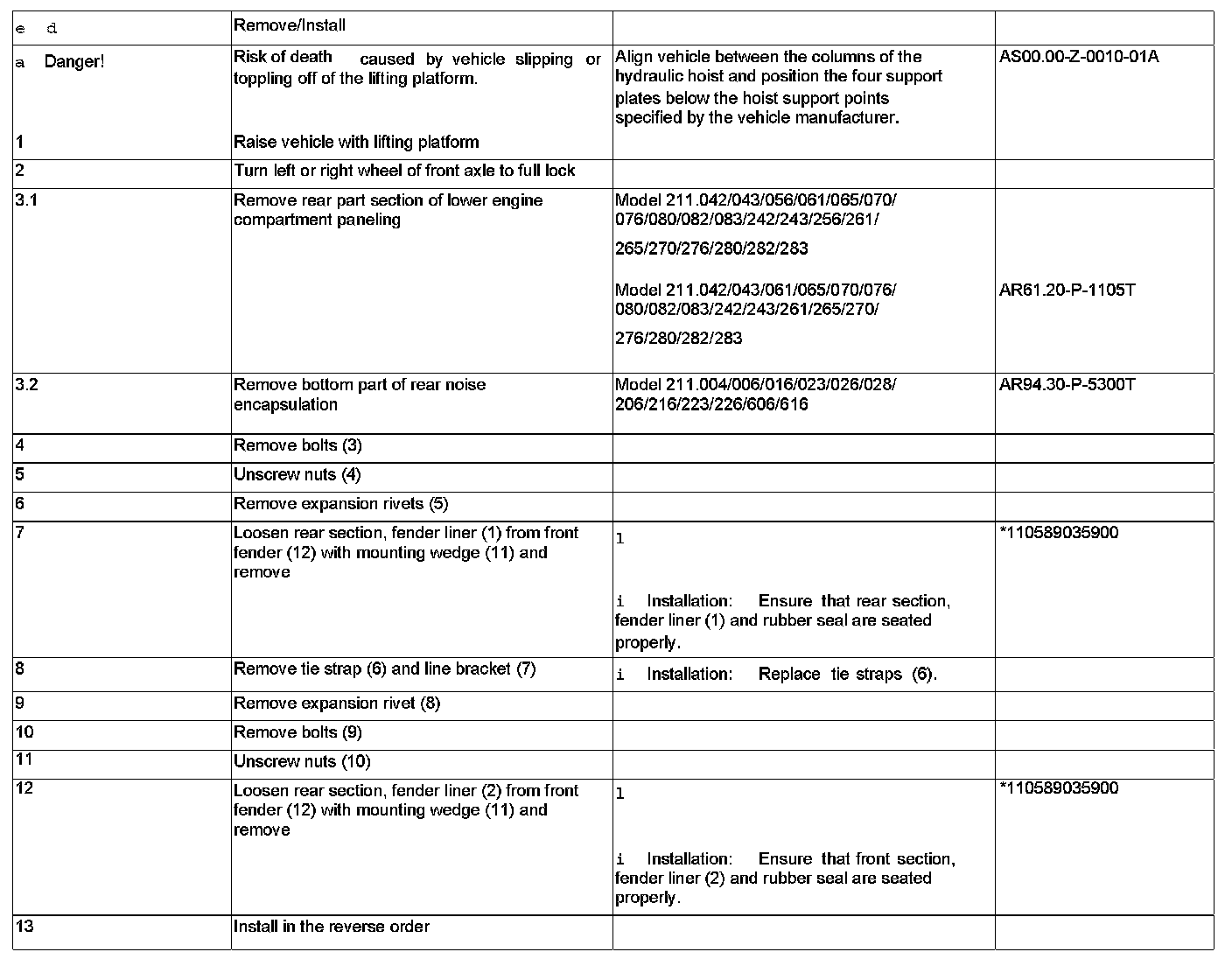

Steps 1 - 13:

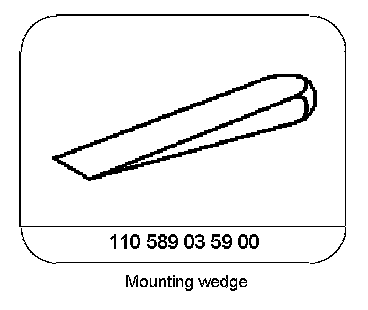

Special Tools:
