Trunk / Liftgate Motor: Service and Repair

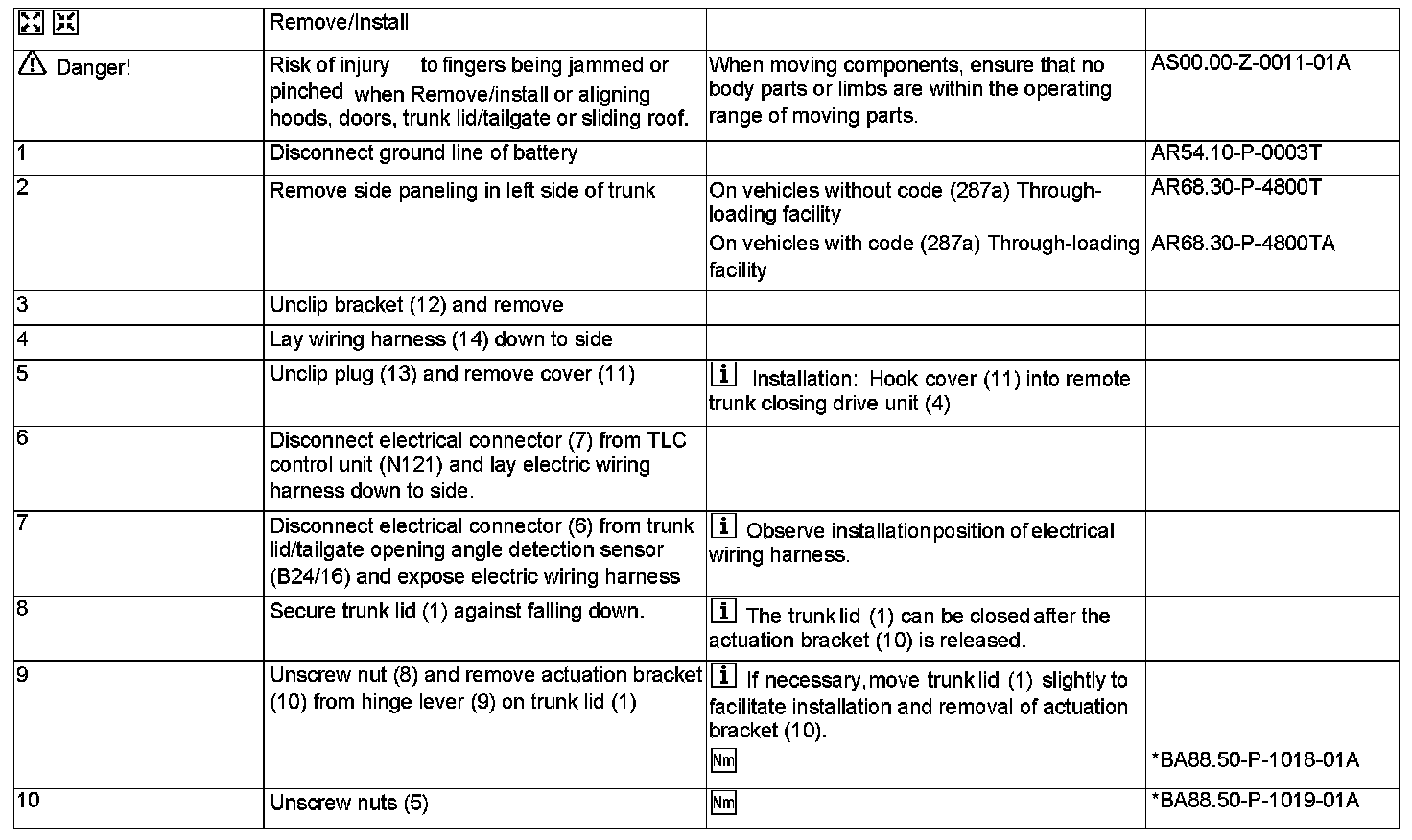

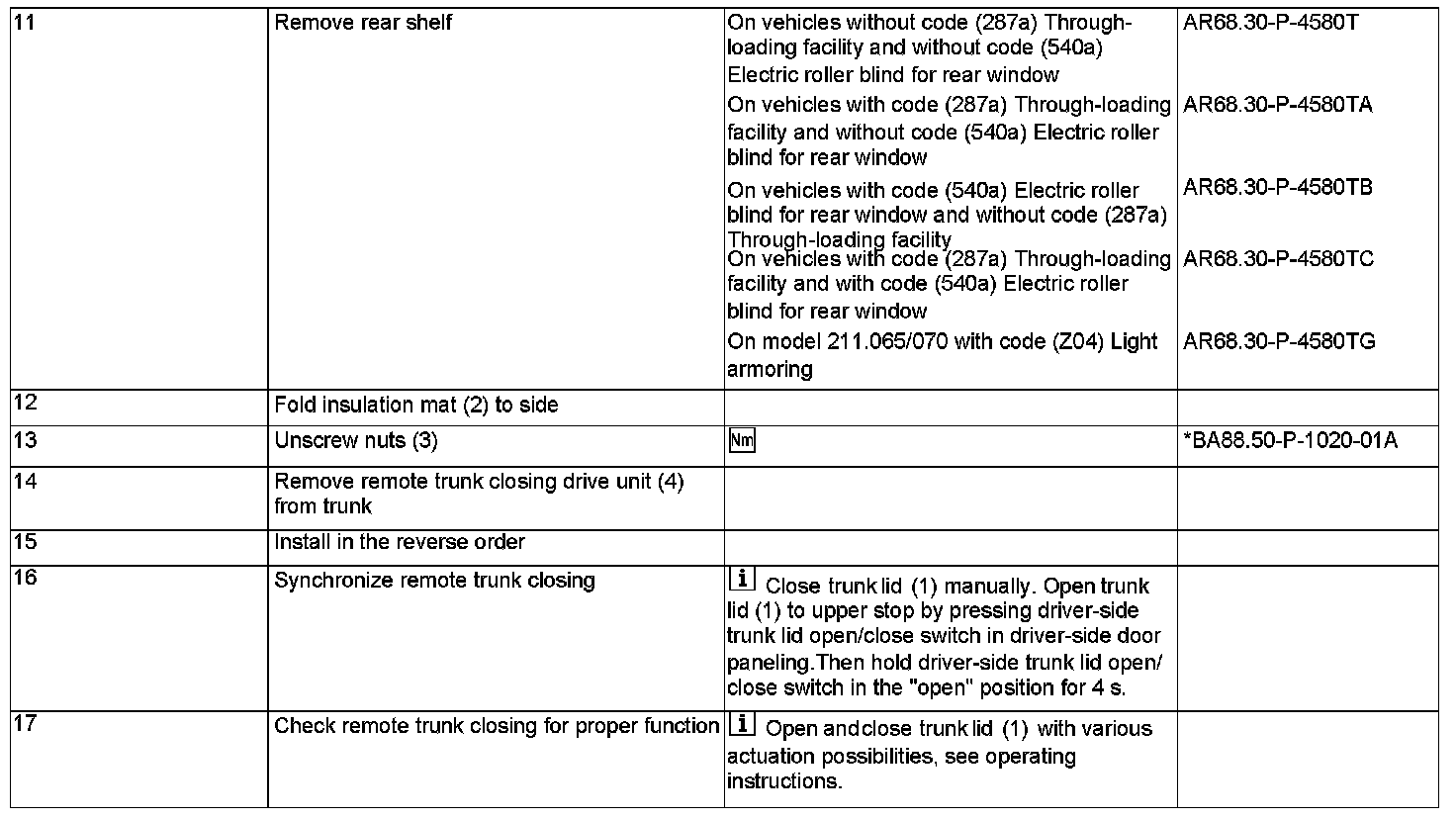

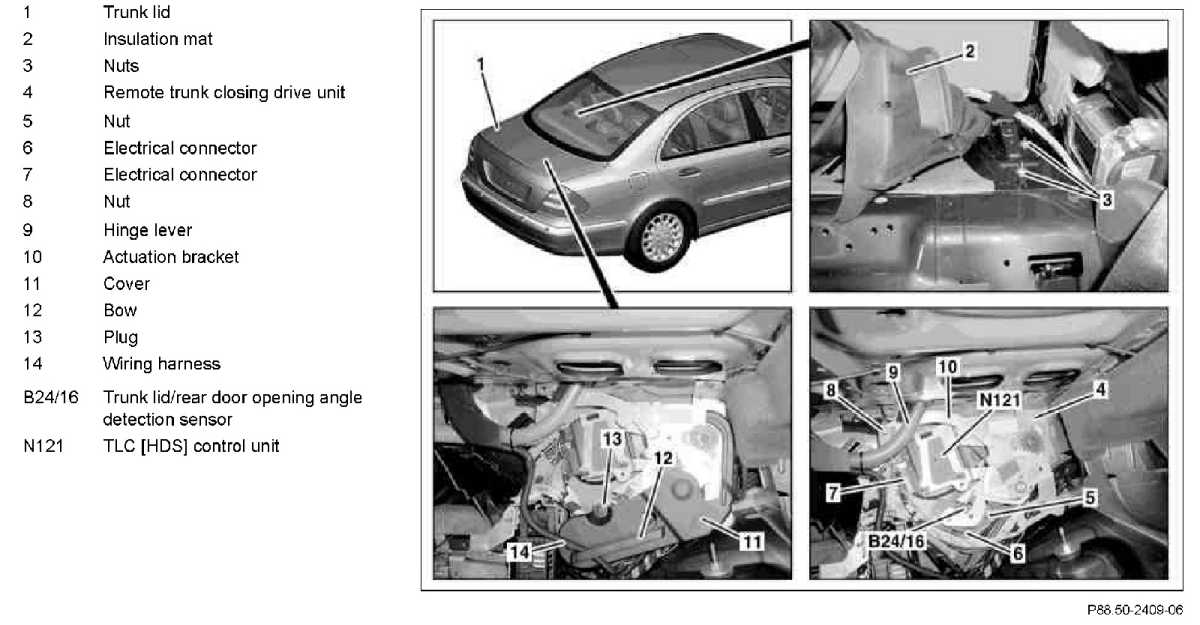

AR88.50-P-5086T Remove/Install Remote Trunk Closing Drive Unit
- with CODE (881) Remote trunk closing (RTC [HDFS])

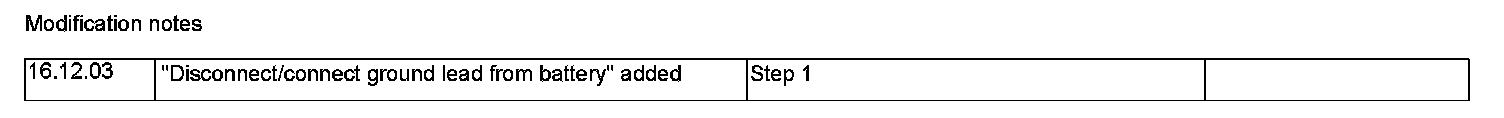

Modification Notes:






Part 1:






Part 2:






Trunk Lid:
