AN88.50-P-0005-01T Machining Trunk Lid Lock

AN88.50-P-0005-01T Machining Trunk Lid Lock

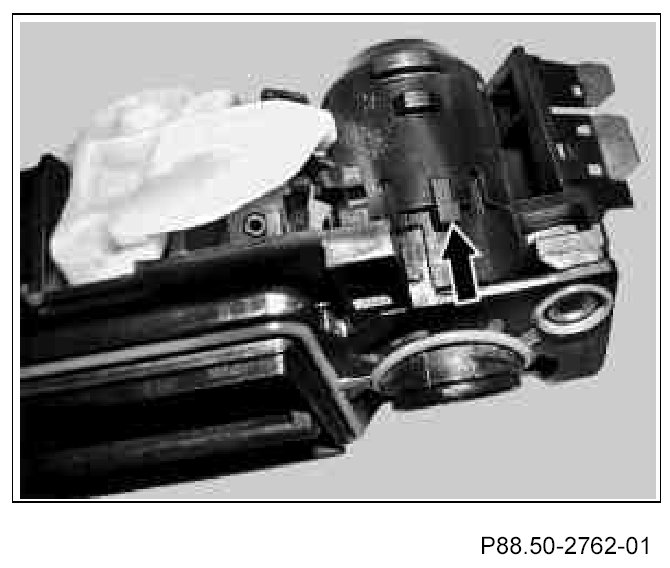

1. Cut off lug (see arrow) flush with pneumatic saw.

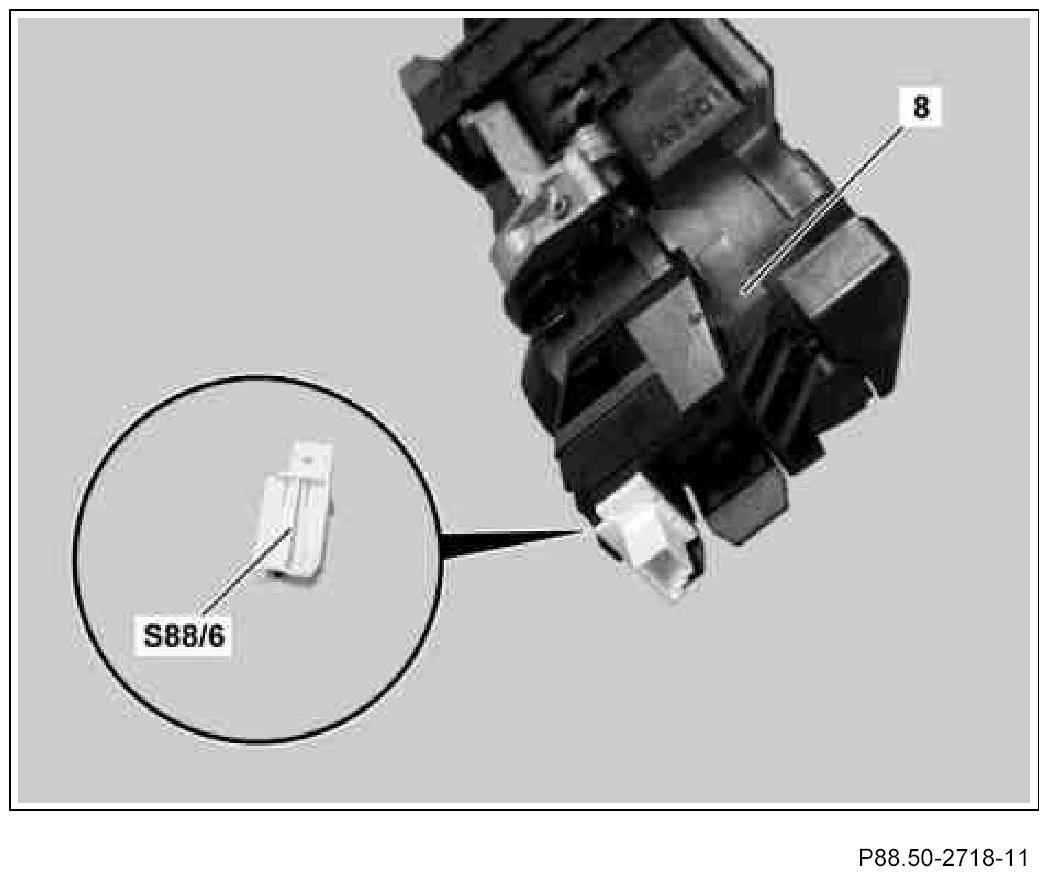

2. Install trunk lid contact switch (S88/6) in trunk lid lock (8).

The socket on the trunk lid lock (8) as well as the trunk lid contact switch (S88/6) are coded mechanically and can only be installed in one position.

3. Check mechanical key for proper function.

Lock can now be turned an additional 90° to the right.
