AR88.50-P-5061T Remove/Install Trunk Lid Lock Cylinder
AR88.50-P-5061T Remove/Install Trunk Lid Lock Cylinder
AR88.50-P-5061T Remove/Install Trunk Lid Lock Cylinder

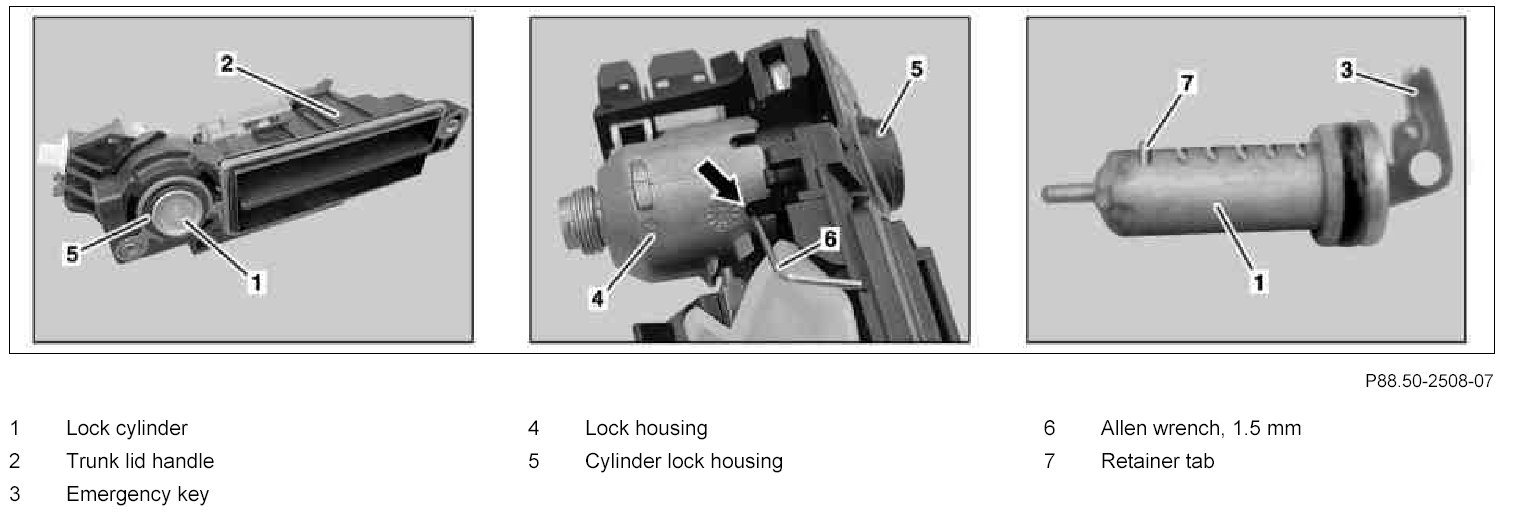

Component Identification:

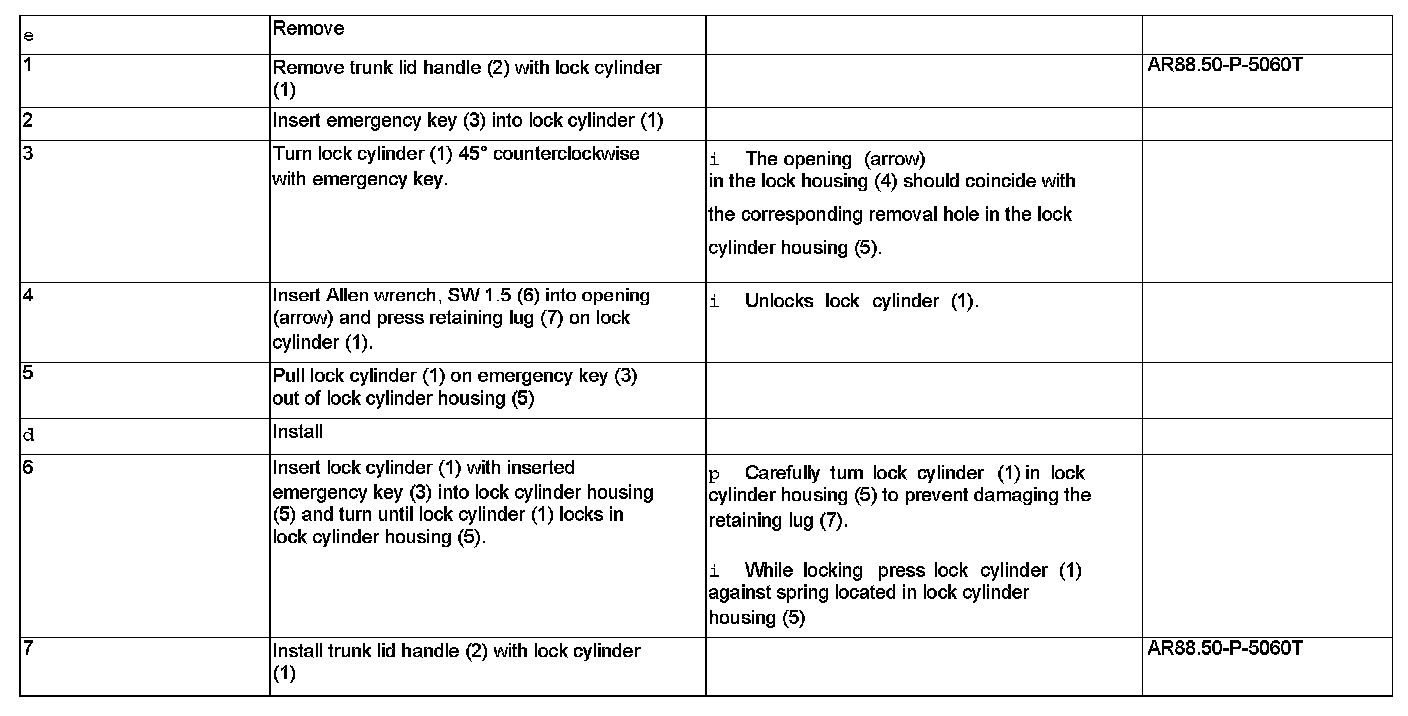

Steps 1 - 7:
