AR88.50-P-5022T Remove/Install Trunk Lid Auxiliary Locks



AR88.50-P-5022T Remove/Install Trunk Lid Auxiliary Locks
- with CODE (884) Trunk lid auxiliary lock

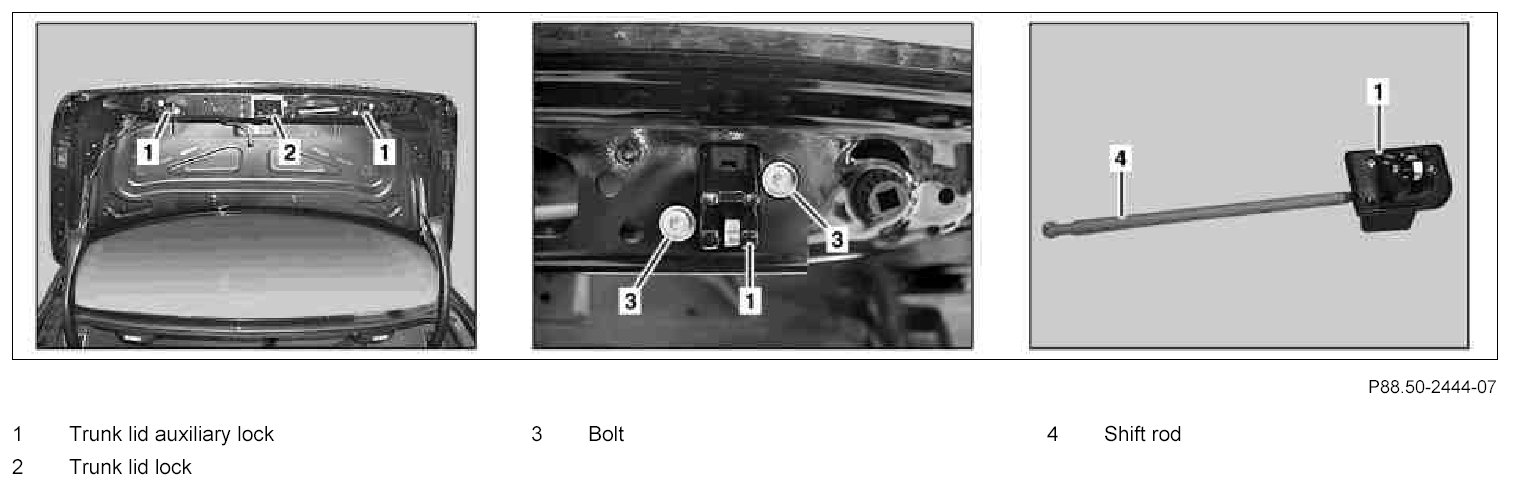

Component Identification:

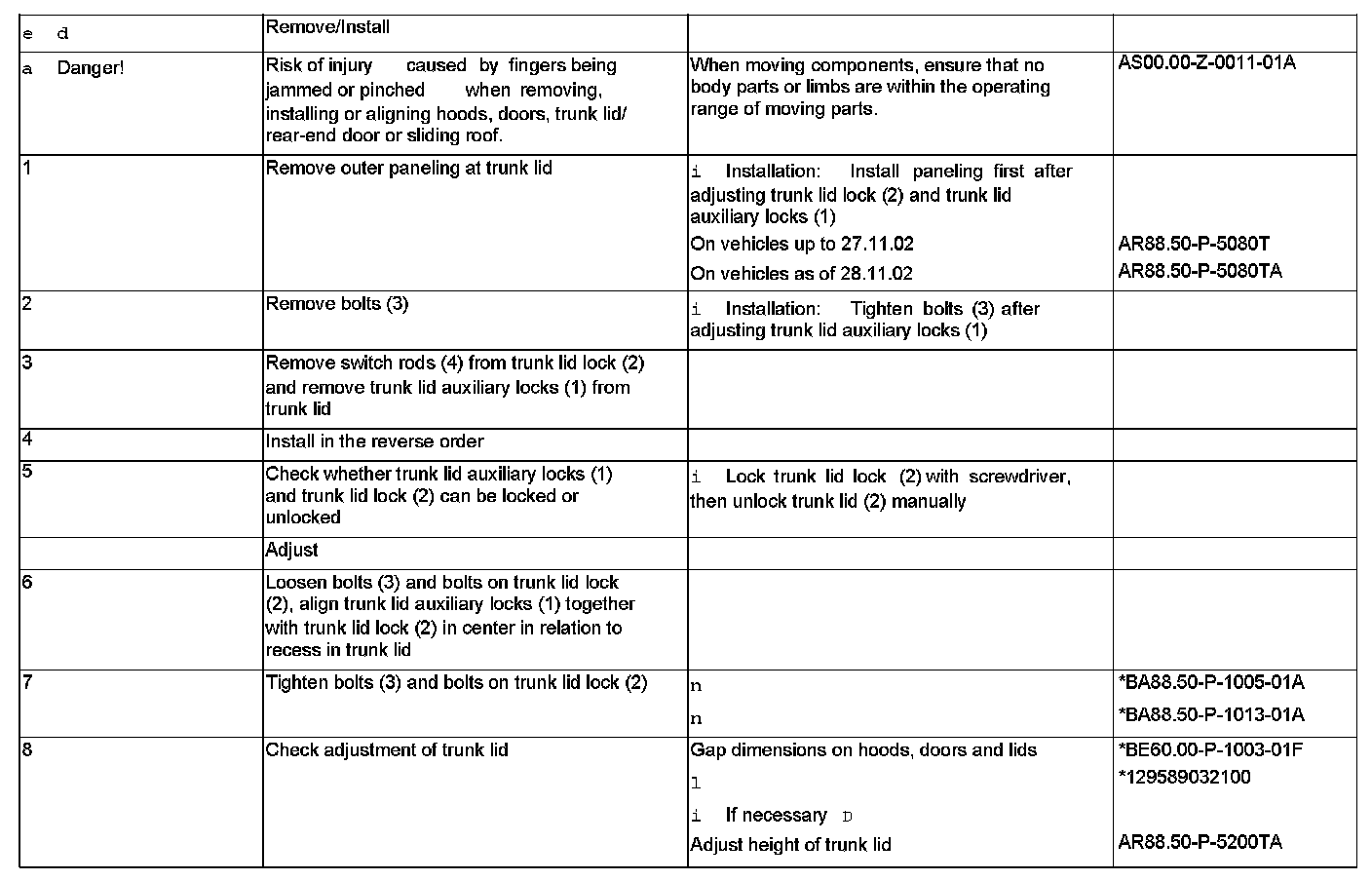

Steps 1 - 8:

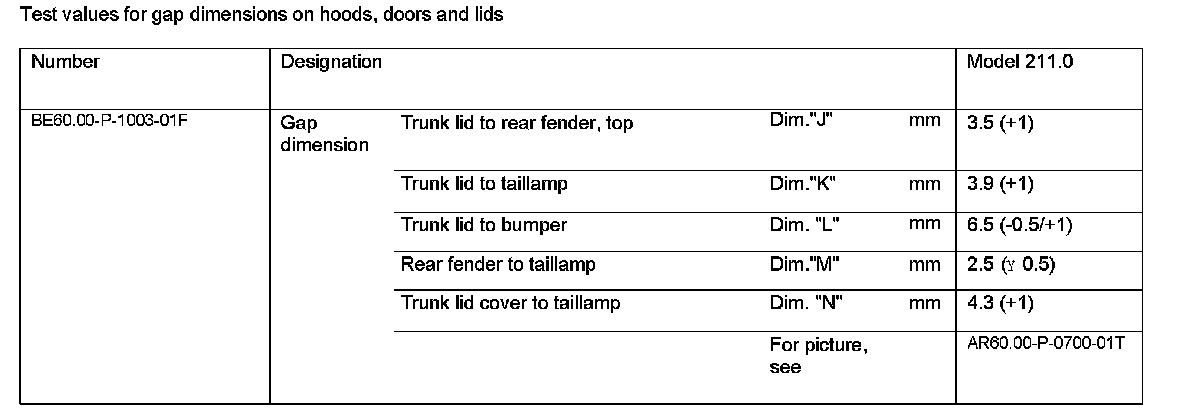

Test Values For Gap Dimensions On Hoods, Doors And Lids:

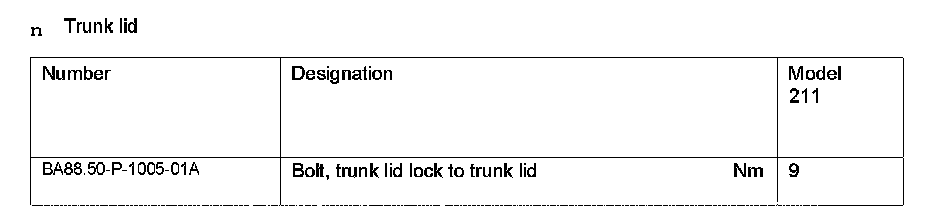

Trunk Lid:




Special Tools:
