AR88.50-P-5020T Remove/Install and Adjust Trunk Lid Lock and Striker Eye



AR88.50-P-5020T Remove/Install and Adjust Trunk Lid Lock and Striker Eye

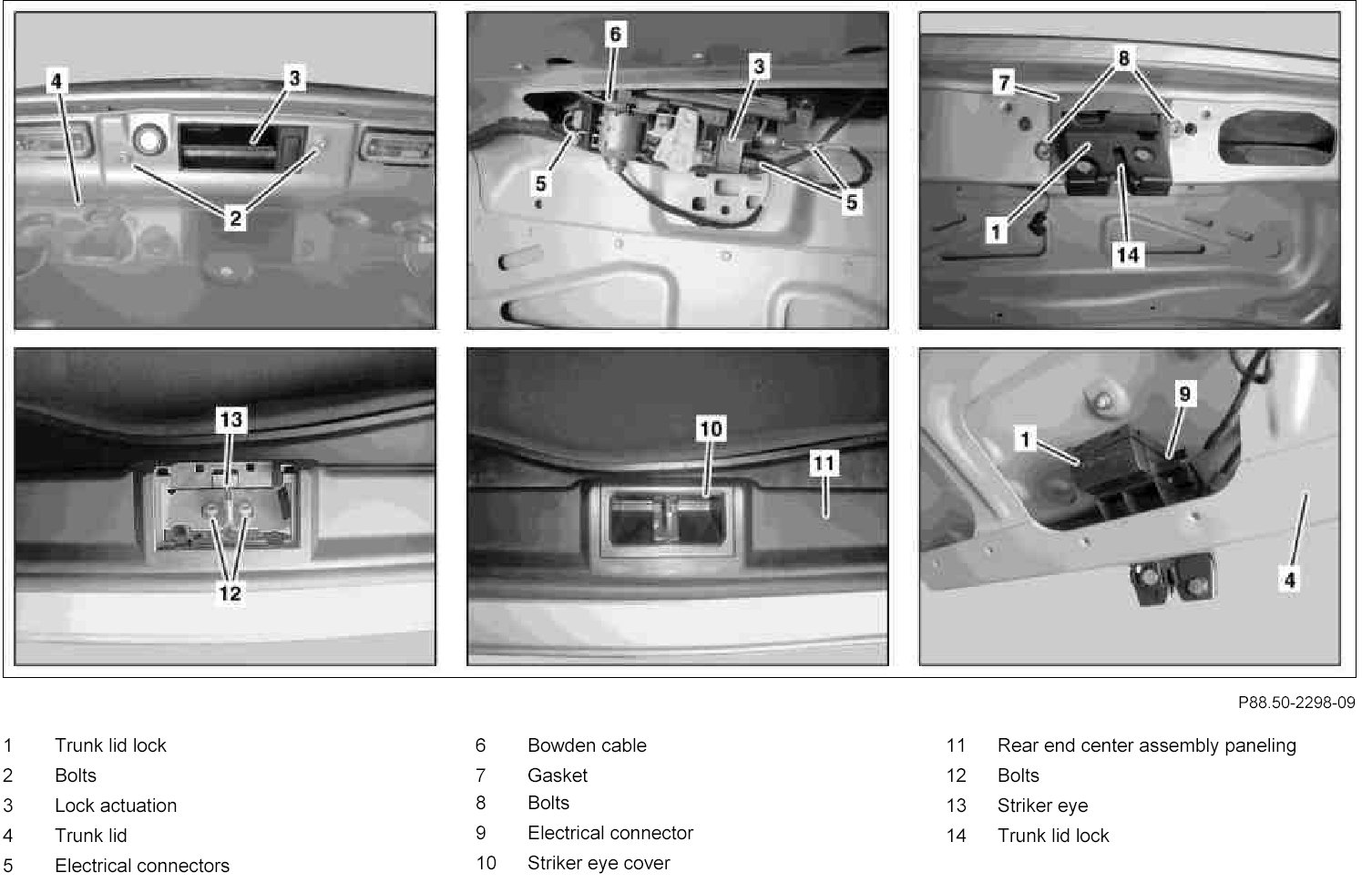

Component Identification:

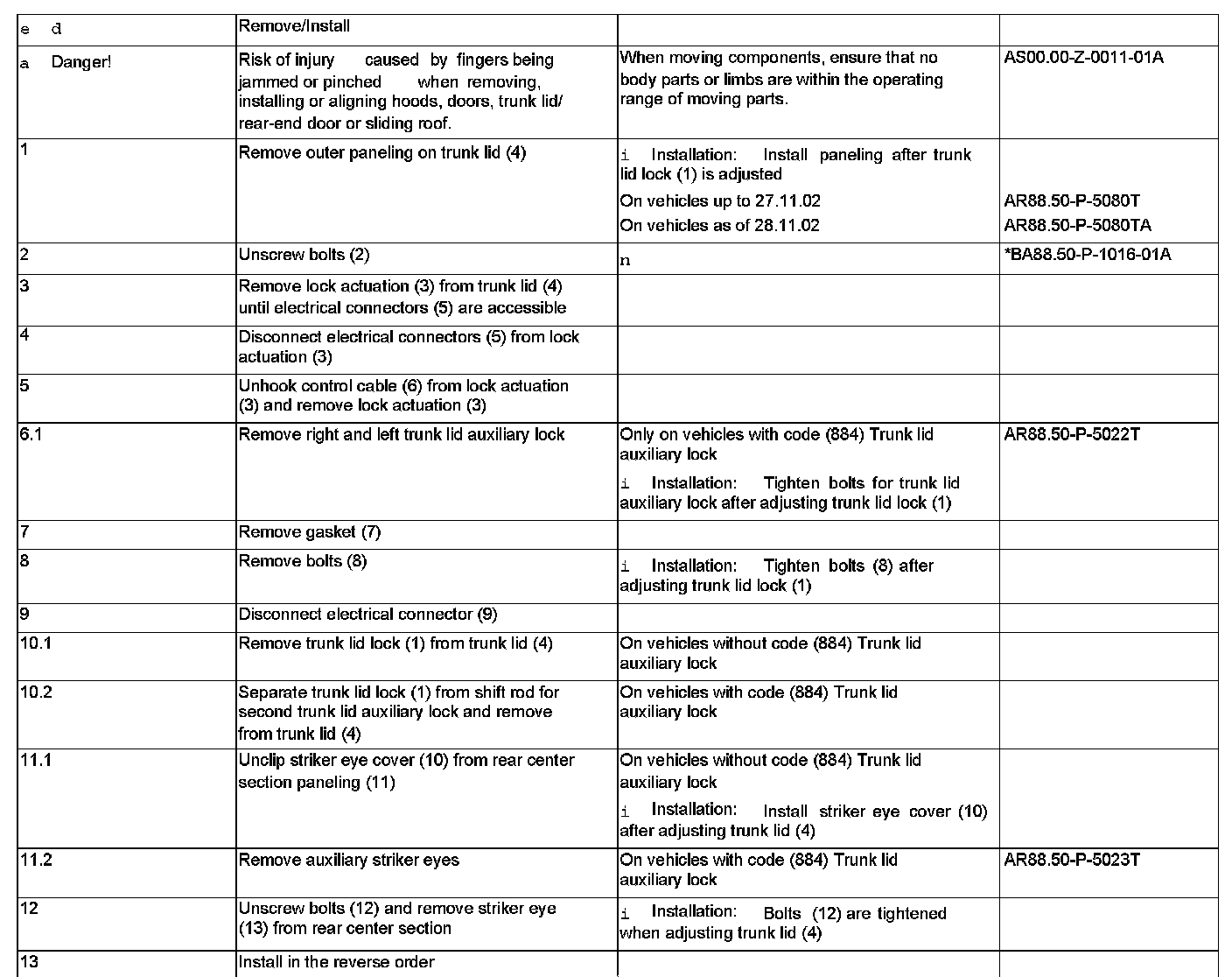

Steps 1 - 13:

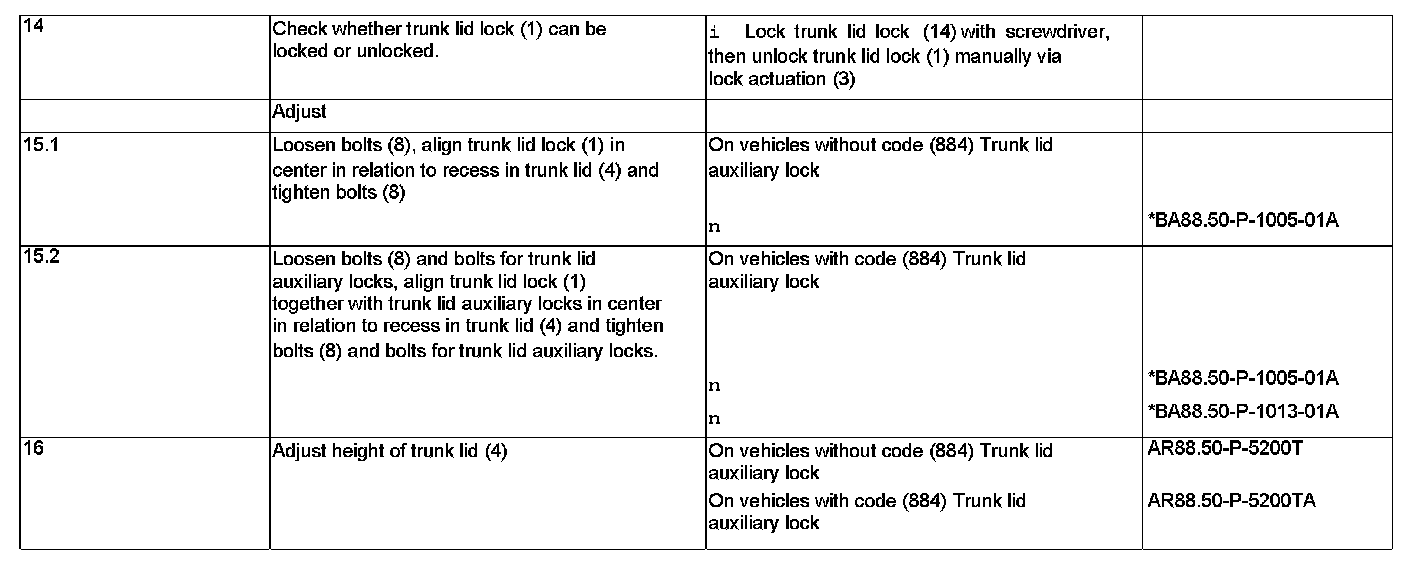

Steps 14 - 16:

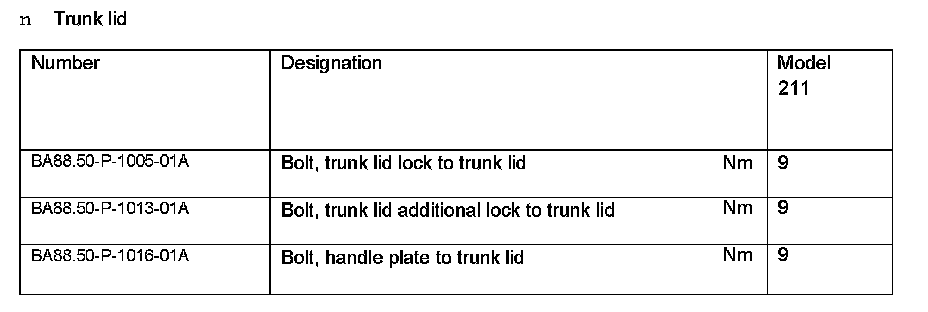

Trunk Lid:
