AR88.50-P-5000T Remove/Install Trunk Lid
AR88.50-P-5000T Remove/Install Trunk Lid
AR88.50-P-5000T Remove/Install Trunk Lid
Component Identification:

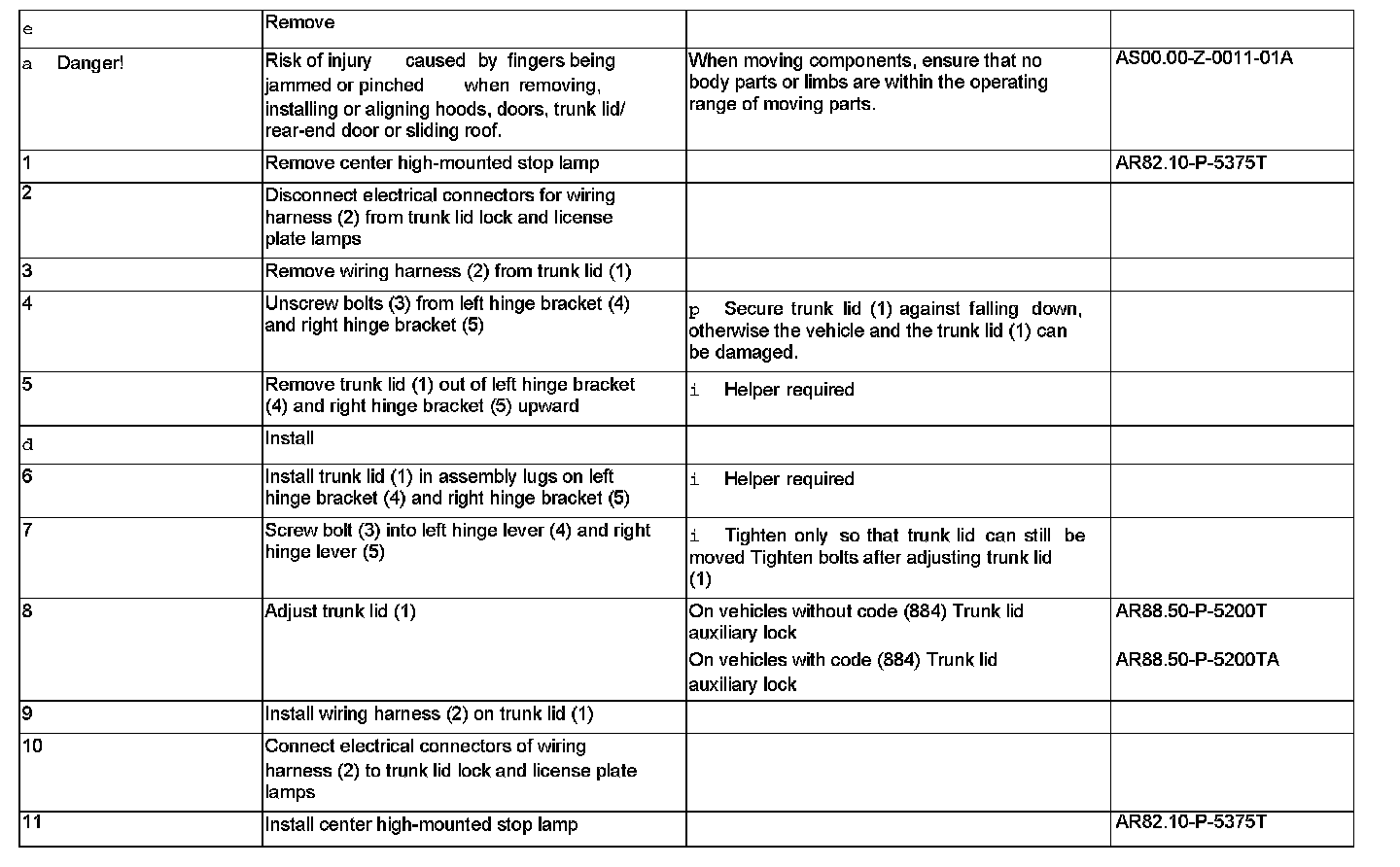

Steps 1 - 11:
