AR80.40-P-1000T Remove/Install Trunk Lid Power Closing Unit
AR80.40-P-1000T Remove/Install Trunk Lid Power Closing Unit
- with CODE (881b) Remote trunk locking (RTL)
Remove
DANGER:
- Risk of injury to fingers being jammed or squeezed when removing and installing or aligning hoods, doors, trunk lid/tailgate or sliding roof.
- When moving components, ensure that no body parts or limbs are within the operating range of moving parts.

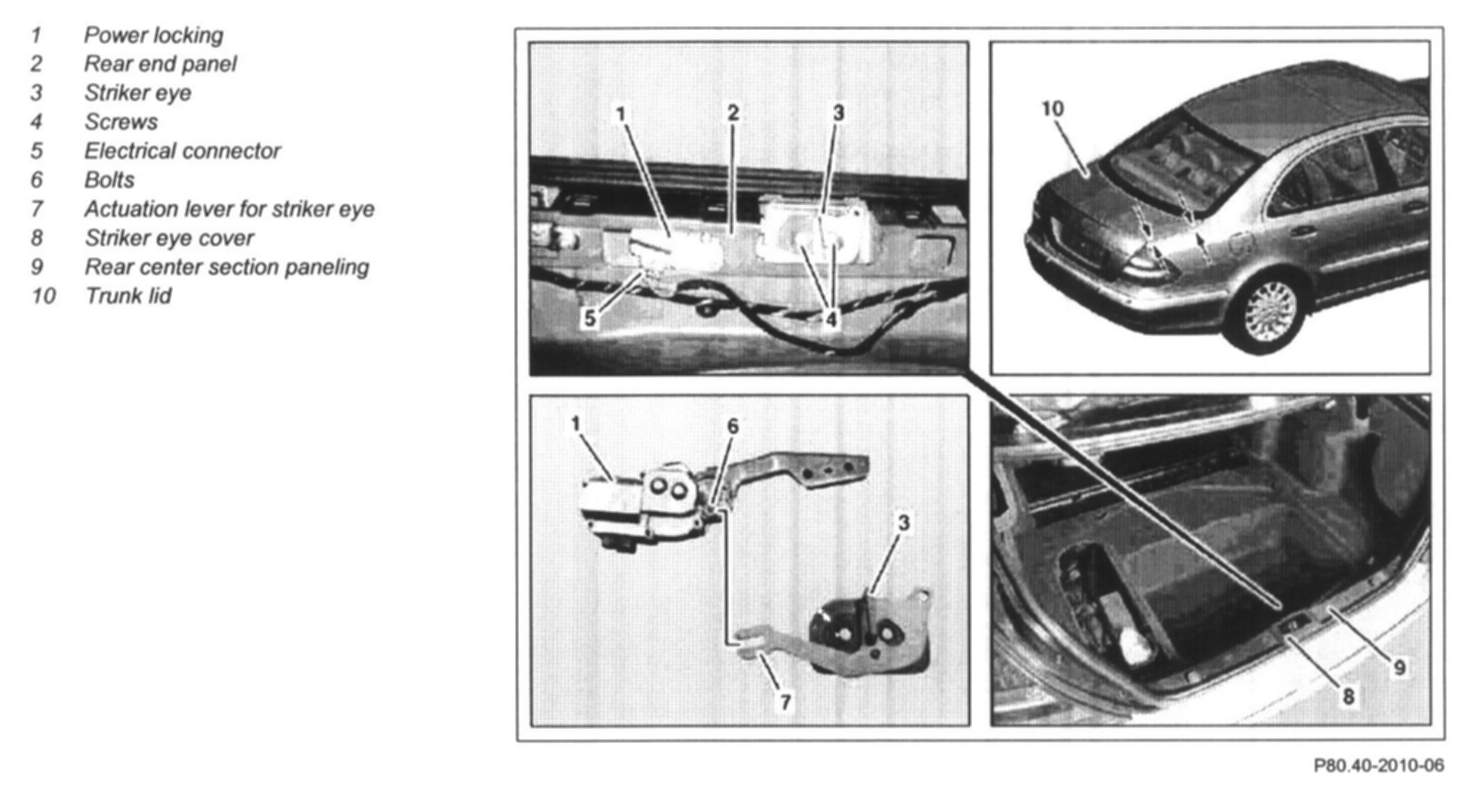

1 Open trunk lid (10)
2 Unclip striker eye cover (8)
3 Remove rear center section paneling (9)
4 Mark installation position of carrier plate for striker eye (2) on rear end panel (2)
NOTE: Facilitates installation and adjustment.
5 Disconnect electrical plug (5).
6 Remove screws (4)
7 Remove striker eye (3)
8 Remove power locking (1)
Install
9 Grease power locking mechanism (1) and insert power locking (1) into rear end panel (2)
10 Insert striker eye actuation lever (7) into bolts (6) of power locking (1) and position striker eye (3) on rear end panel (2)
11 Loosely screw screws (4) into power locking (1) through striker eye (3)
12 Align striker eye (3) according to marking and tighten screws (4)
NOTE: Top edge of carrier plate of striker eye (3) should be parallel to upper edge of rear end panel (2).
13 Connect electrical connector (5)
14 Install rear center section paneling (9)
NOTE: Do not install striker eye cover (8).
Adjusting
15 Close trunk lid (10) by actuating remote trunk locking
NOTE: This causes the power locking mechanism to move to the end position.
16 Check adjustment of trunk lid (10)
NOTE: Ensure that trunk lid (10) gap is the same at the left and right rear fenders (arrows). Observe trunk lid (10) extension at left and right rear fenders.
Gap size
- Trunk lid to top of rear fender Dimension J: 3.5(+1) mm
- Trunk lid to taillamp Dimension K: 3.9 (+1) mm
- Trunk lid to bumper Dimension L: 6.5(-0.5/+1) mm
- Rear fender to taillamp Dimension M: 2.5 (±0.5) mm
- Trunk lid cover to taillamp Dimension 7: 4.3 (+1) mm
17 Open trunk lid (10)
NOTE: If necessary, readjust striker eye.
18 Tighten screws (4)
- Screw to striker eye: 9 N.m
19 Install striker eye cover (8)
20 Close trunk lid (10)
