Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Service and Repair >> AR68.30-P-4800TB Remove/Install Side Paneling In Trunk

AR68.30-P-4800TB Remove/Install Side Paneling In Trunk



AR68.30-P-4800TB Remove/Install Side Paneling In Trunk
- with CODE (924) Bivalent natural gas drive

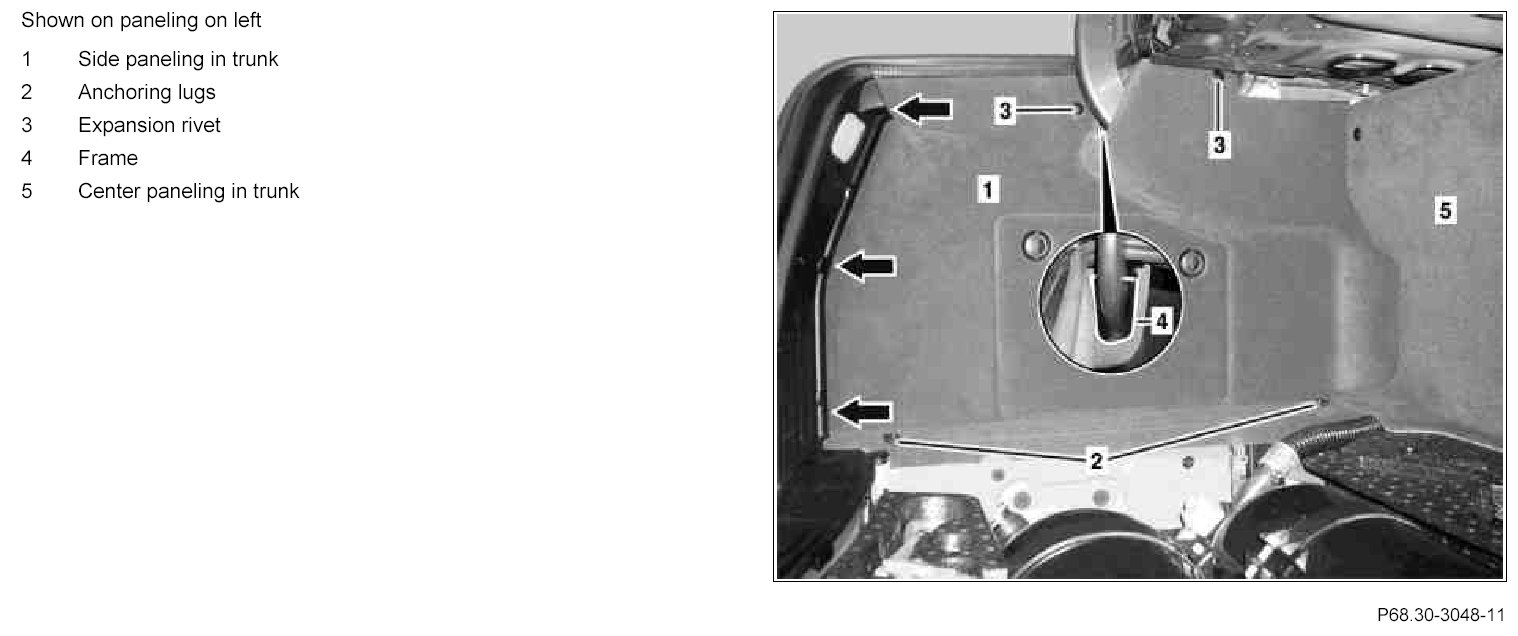

Component Identification:

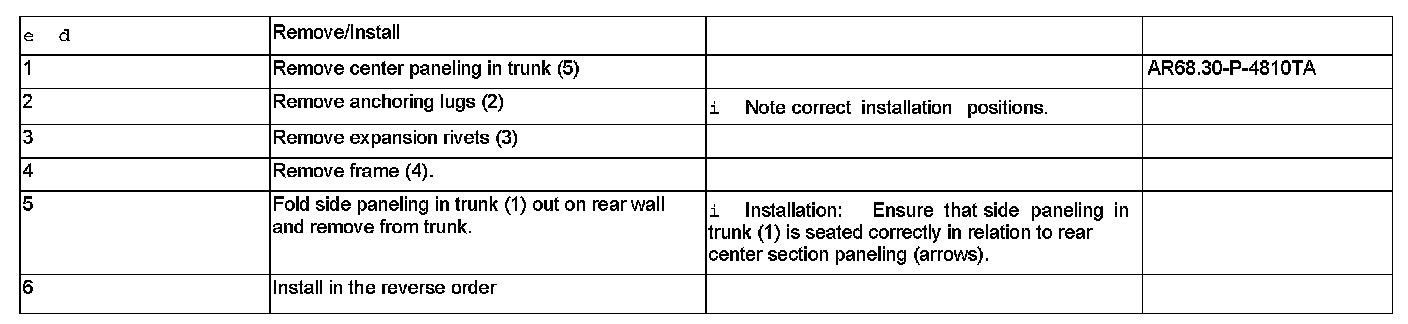

Steps 1 - 6:
