AR88.50-P-5200T Adjust Trunk Lid



AR88.50-P-5200T Adjust Trunk Lid
- except CODE (884) Trunk lid auxiliary lock

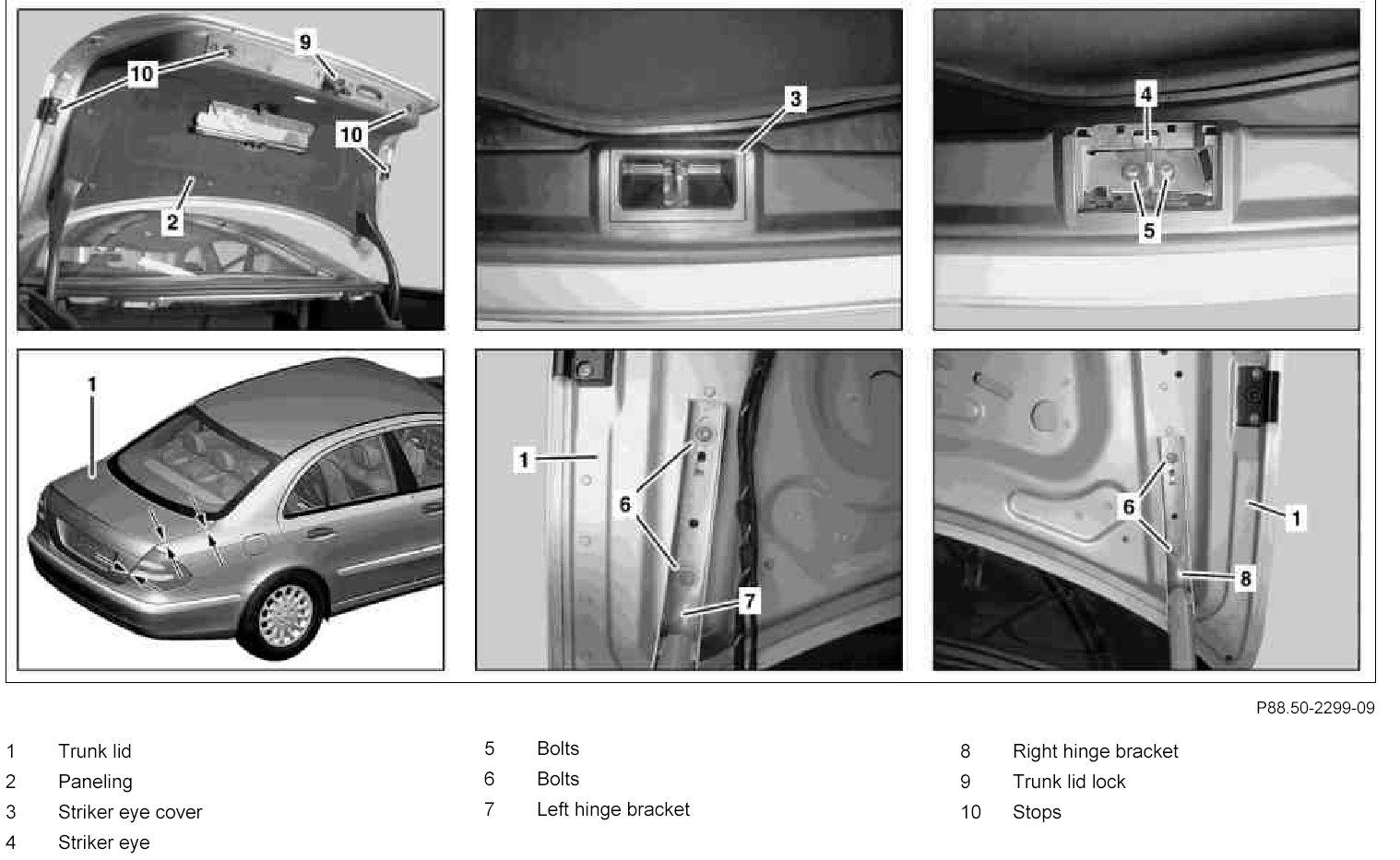

Component Identification:

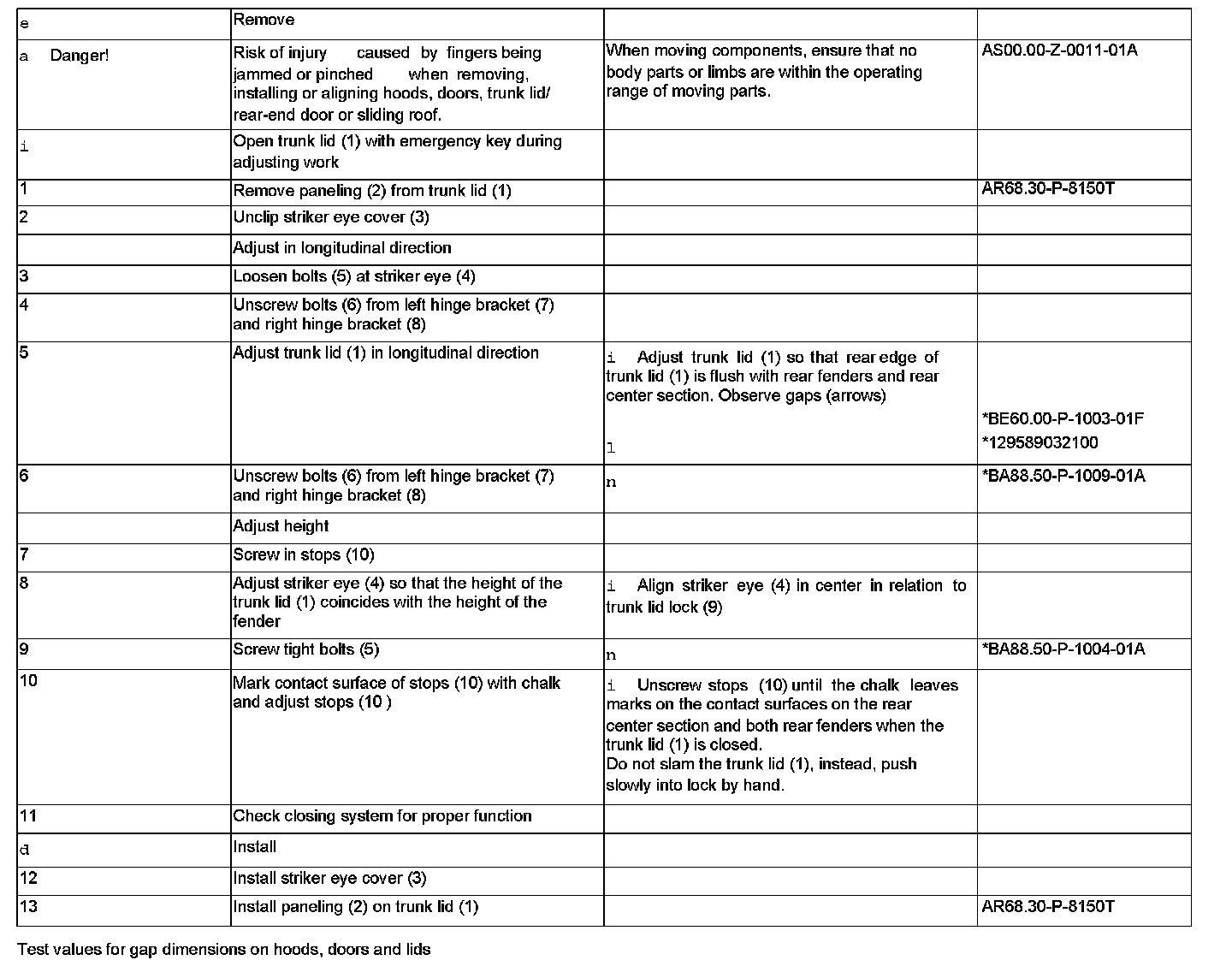

Steps 1 - 13:

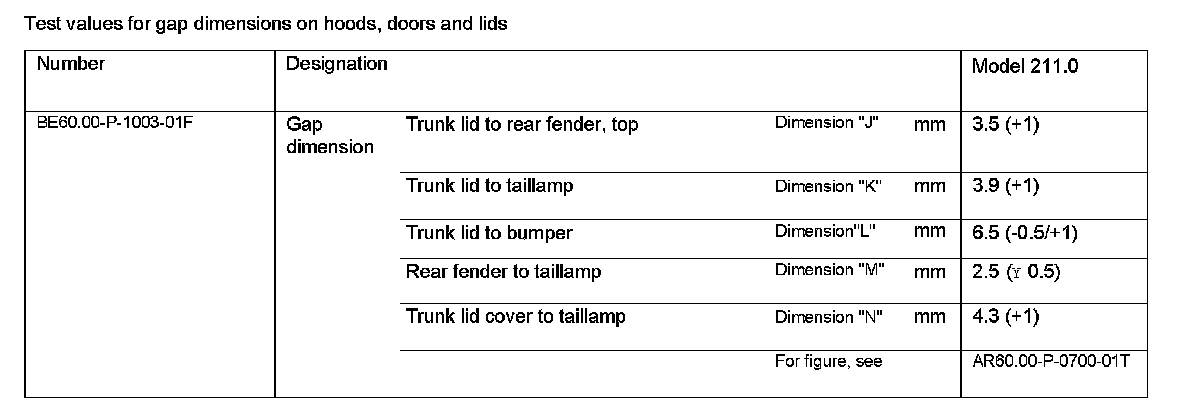

Test Values For Gap Dimensions On Hoods, Doors And Lids:

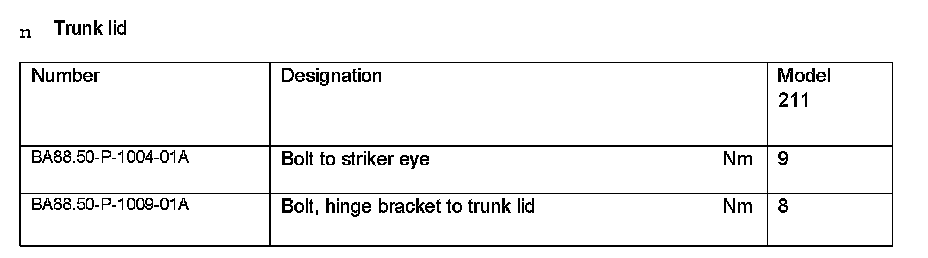

Trunk Lid:

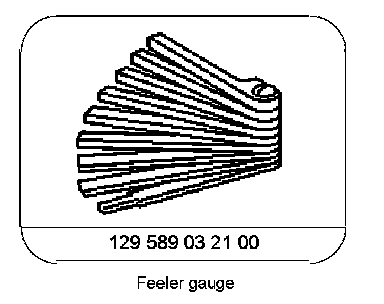

Special Tools:
