Hood Latch: Service and Repair
AR88.40-P-3200T Remove/Install Engine
Hood
Catch

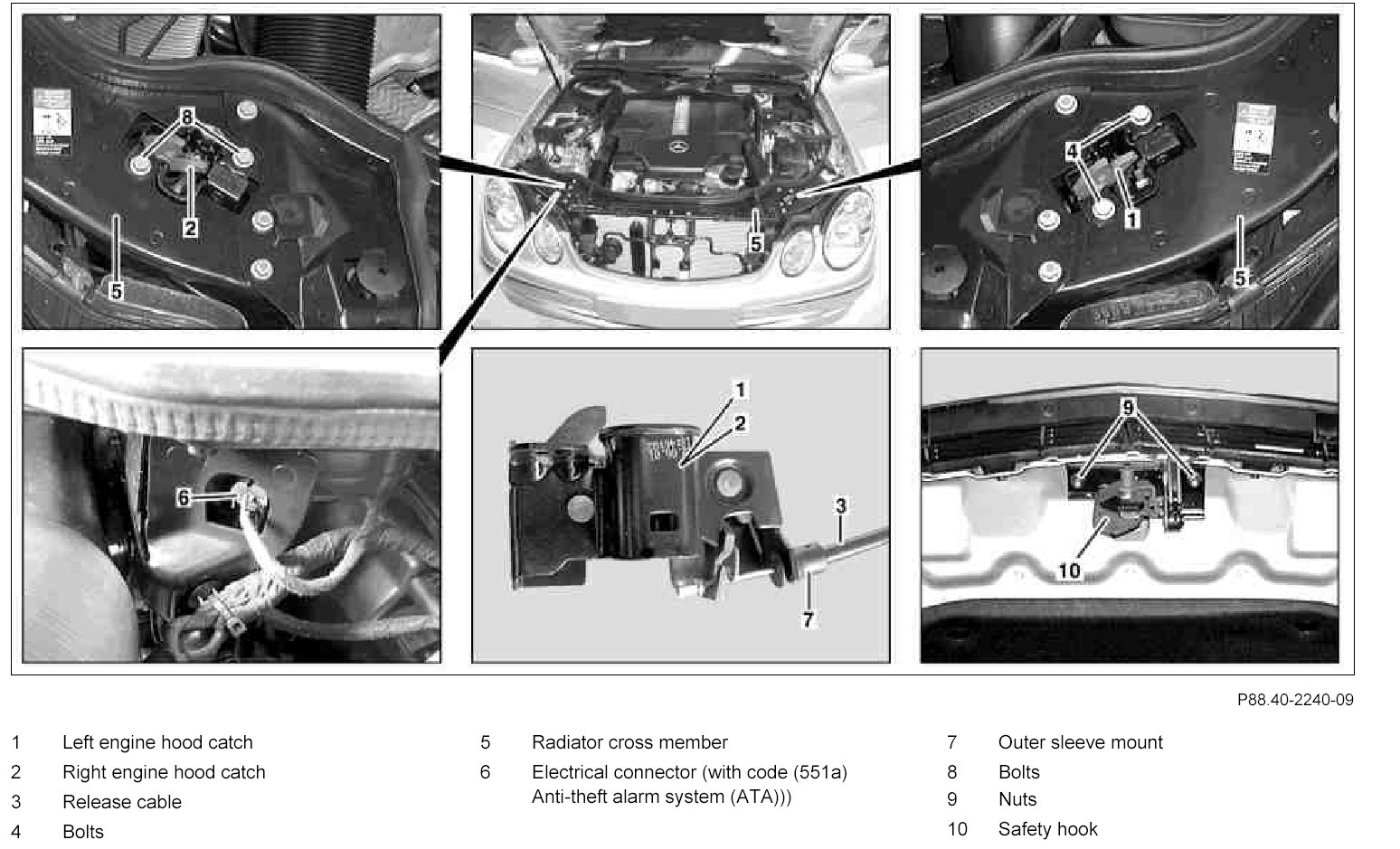

Component Identification:

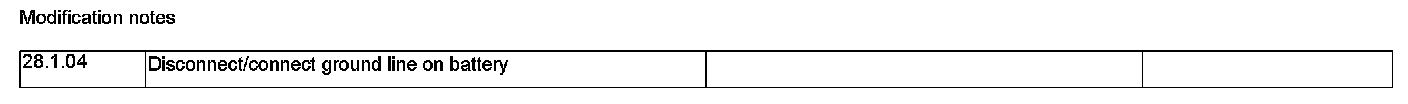

Modification Notes:

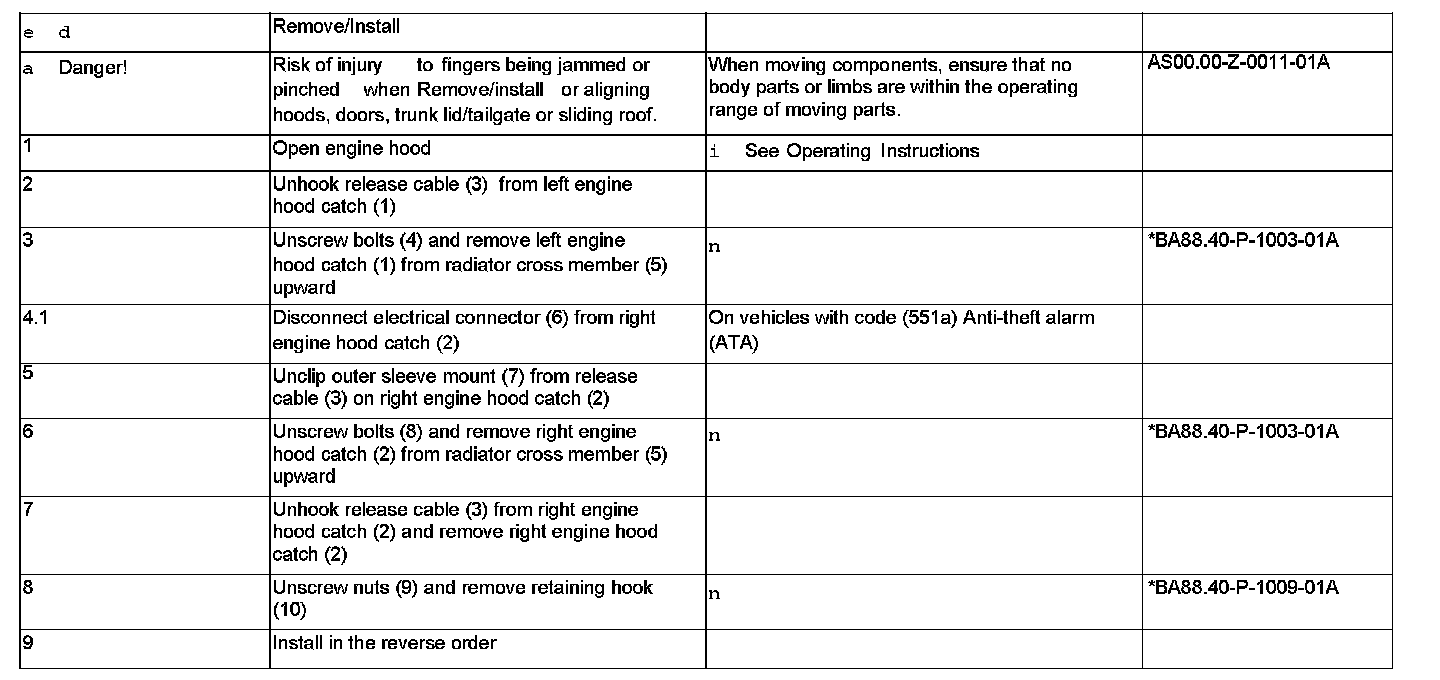

Steps 1 - 9:

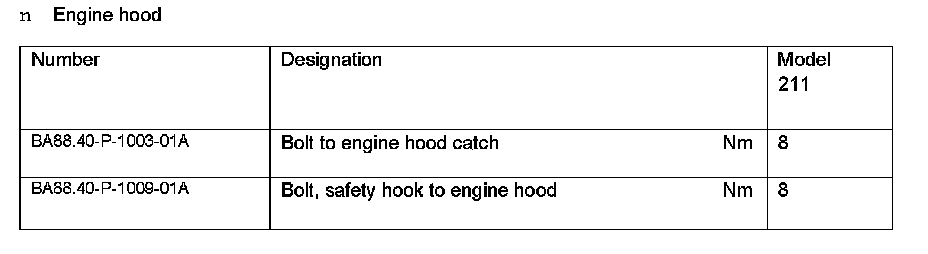

Engine Hood:
