Hood Hinge: Service and Repair



AR88.40-P-3060T Remove/Install Engine Hood Hinge

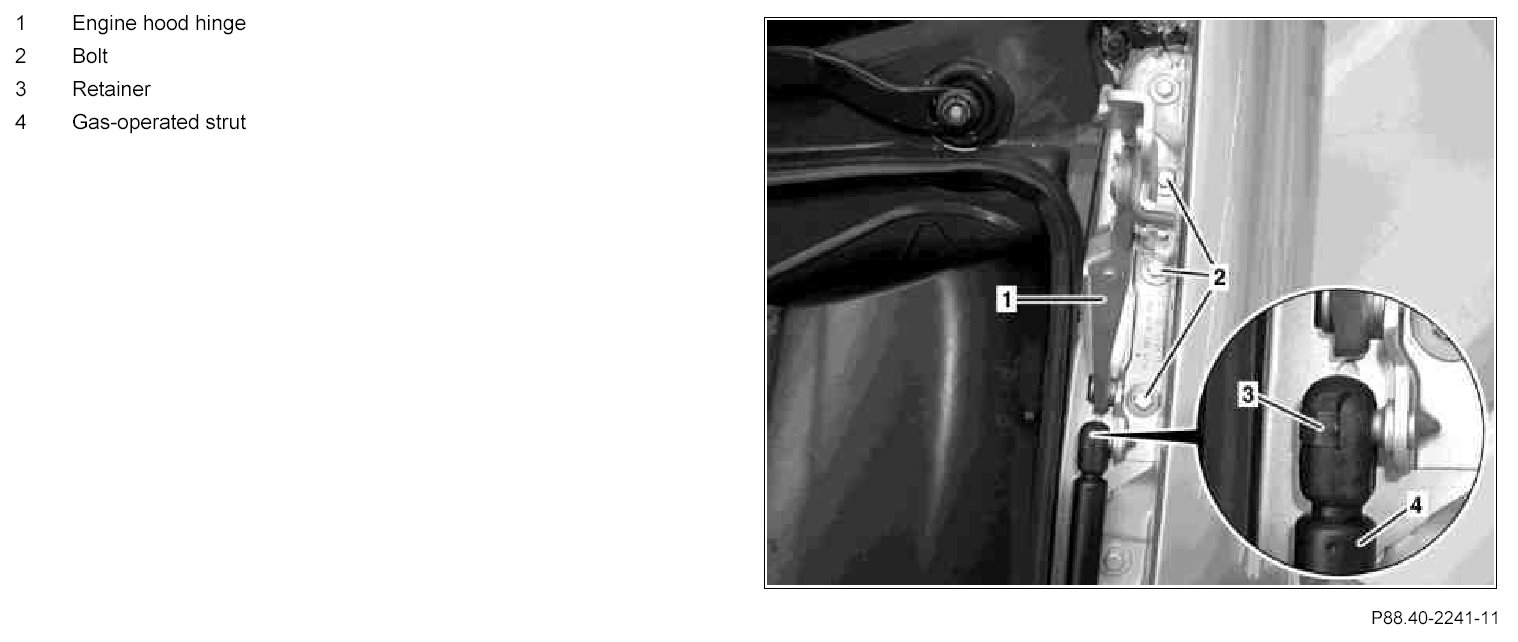

Component Identification:

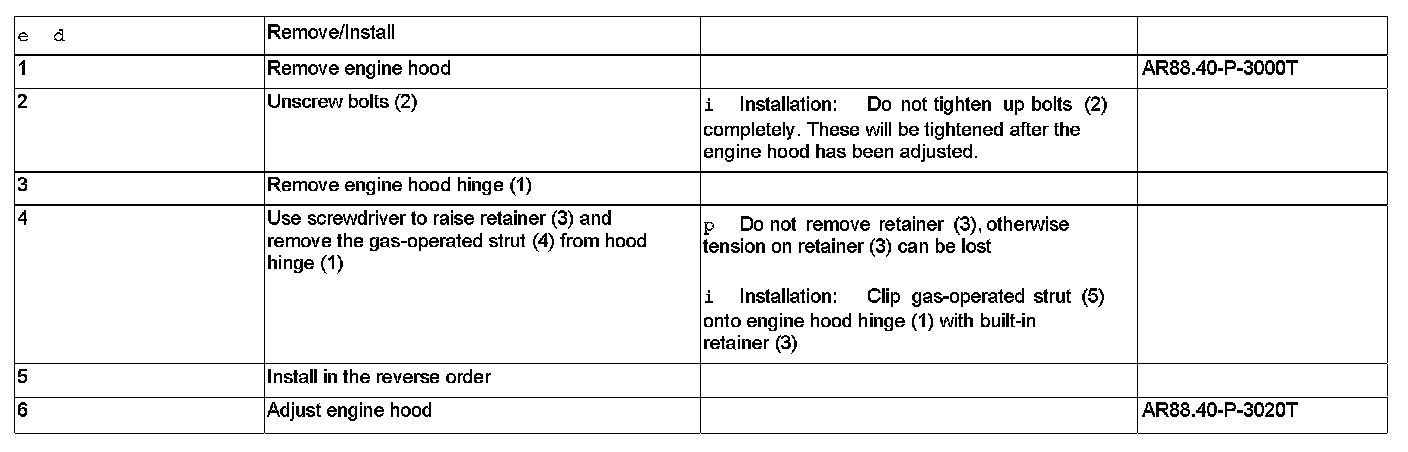

Steps 1 - 6:
