AR88.20-P-2000T Remove/Install Front
Bumper

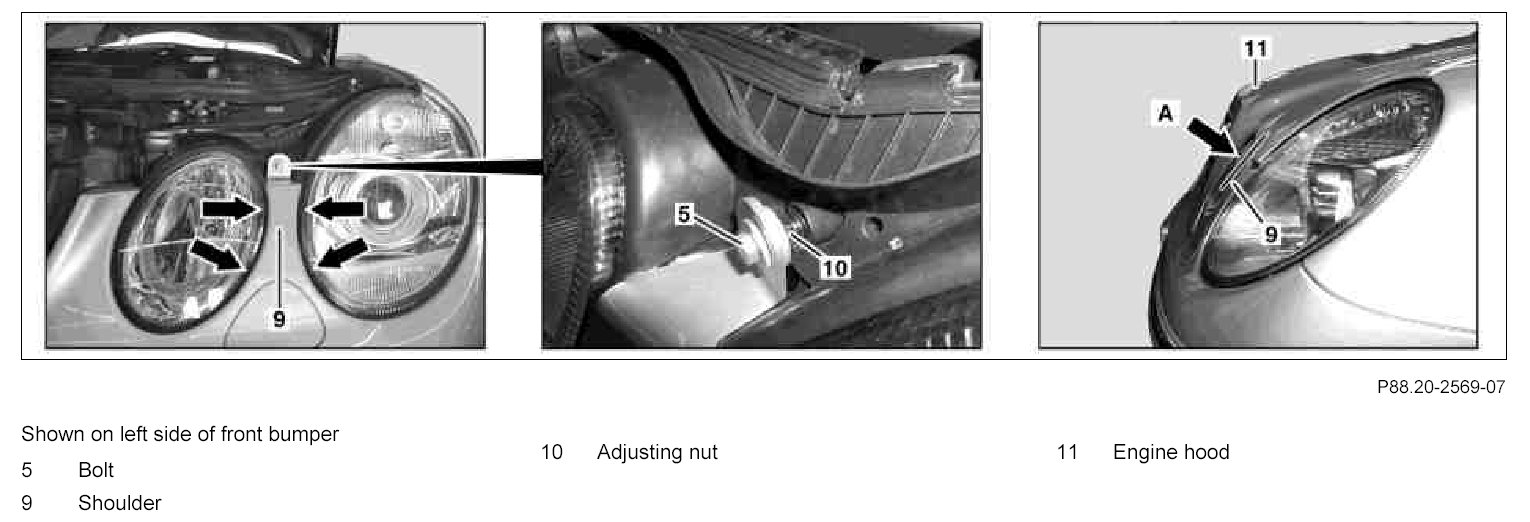

Component Identification:

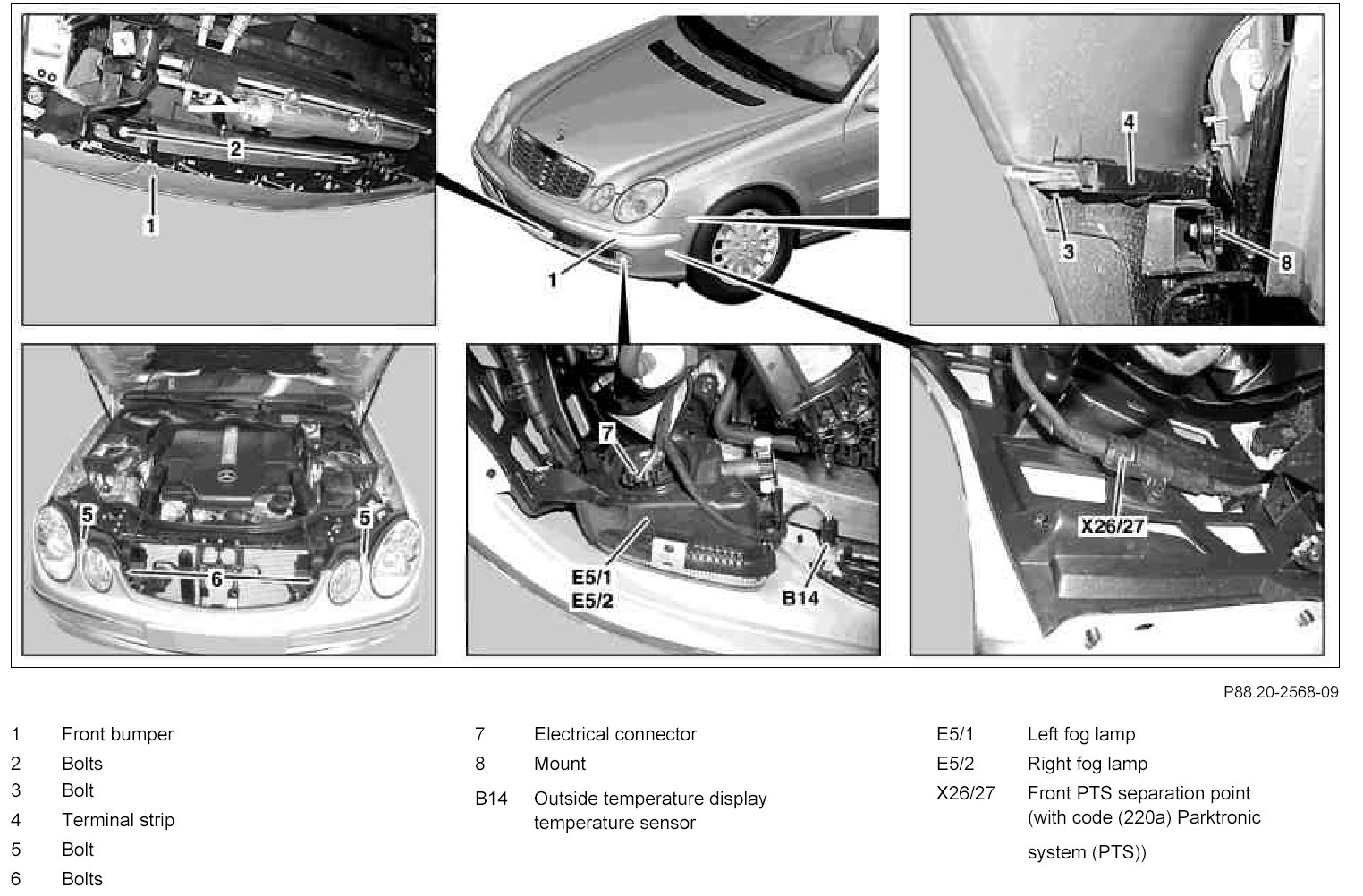

Component Identification:

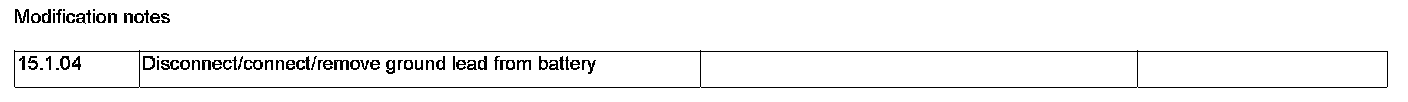

Modification Notes:

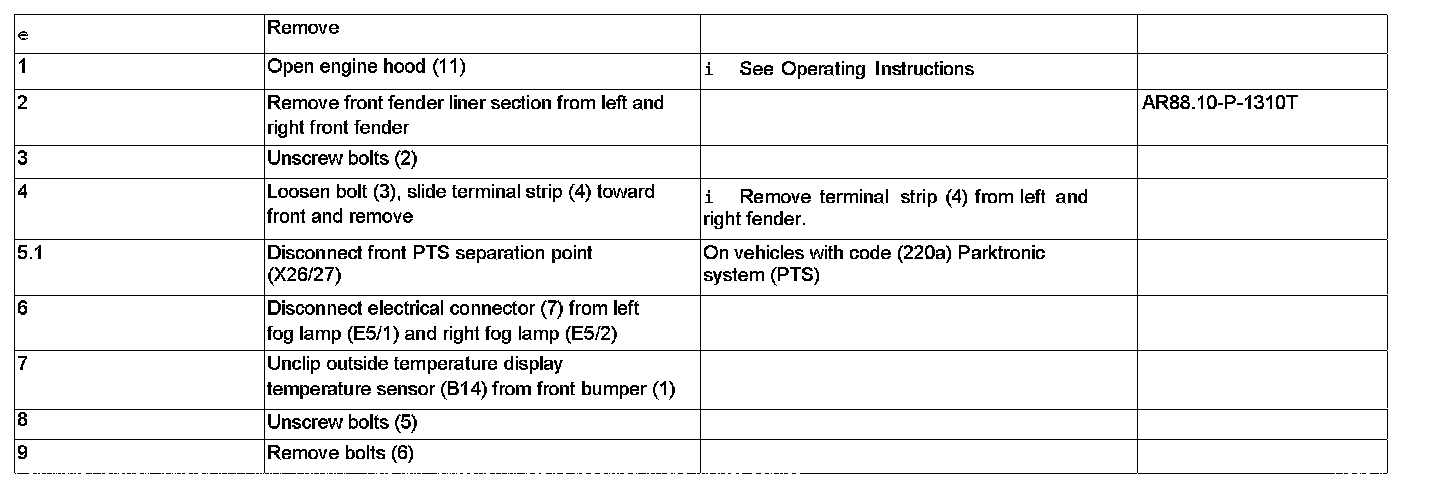

Steps 1 - 9:

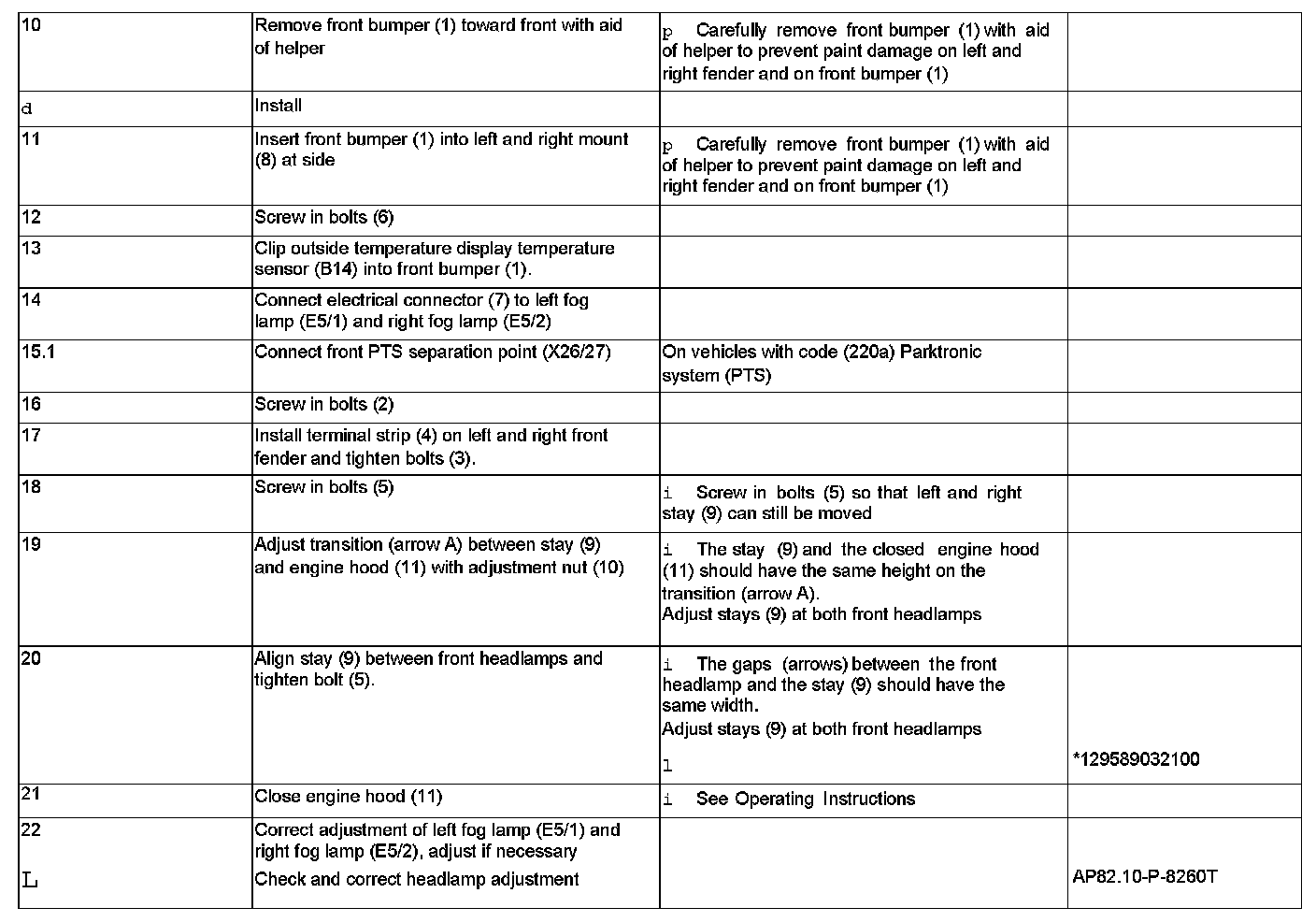

Steps 10 - 22:

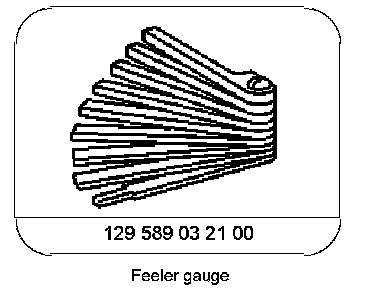

Special Tools:
