Wiring Diagram of Driver-Side SAM With Fuse and Relay Module PE54.21-U-2109DG

Wiring Diagram Of Driver-Side SAM Control Module With Fuse And Relay Module PE54.21-U-2109DG

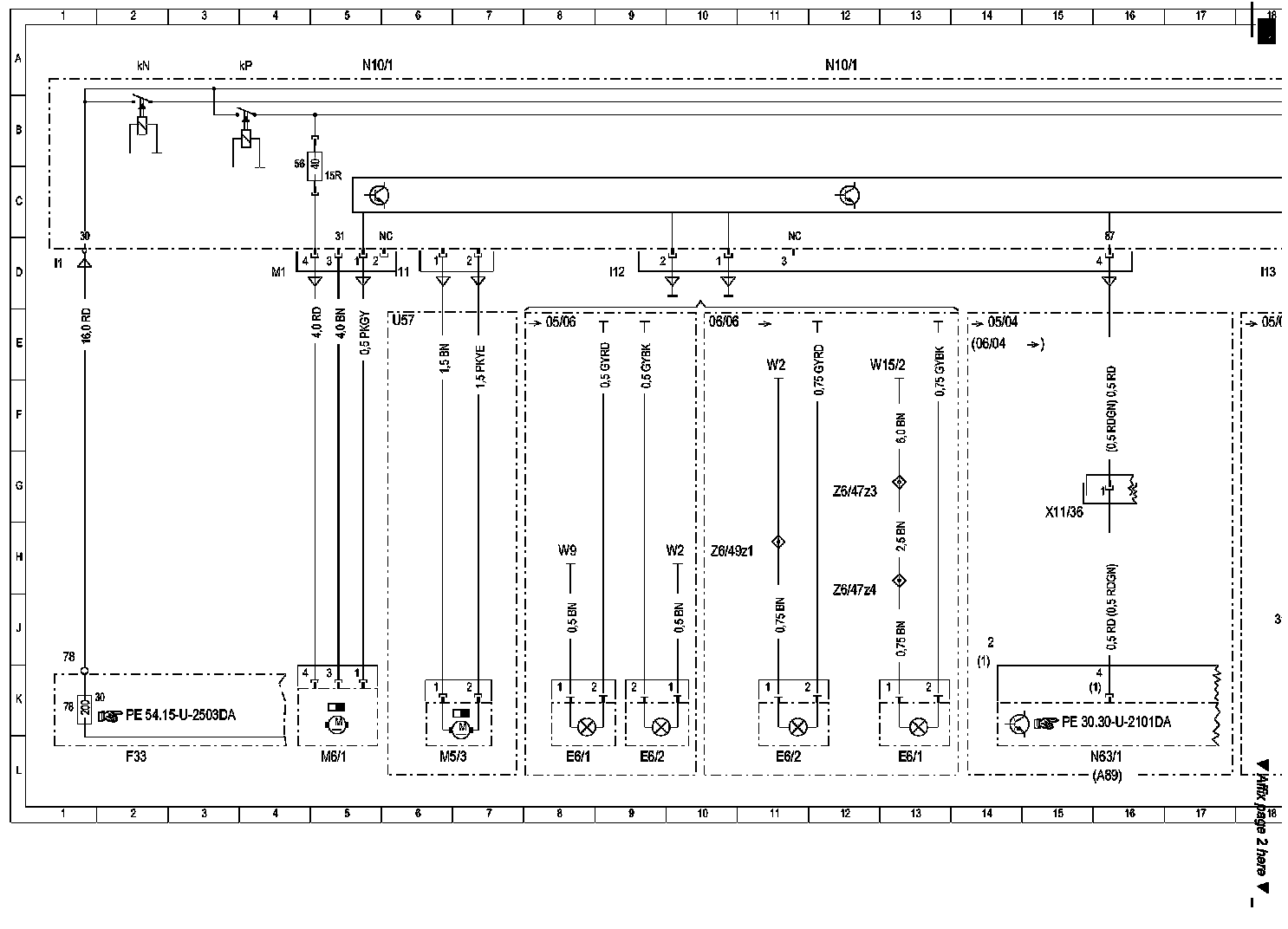

Wiring Diagram (Part 1):

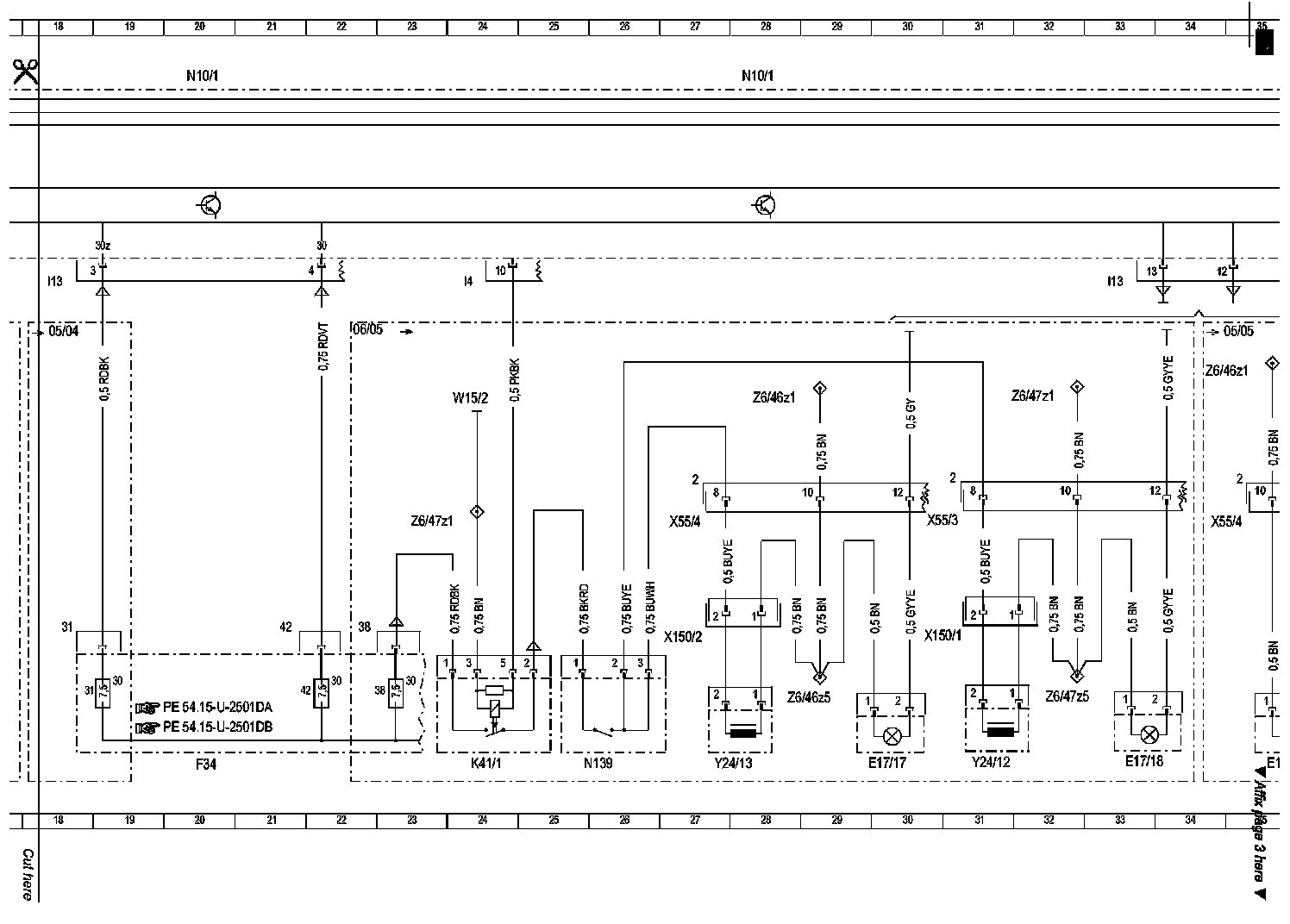

Wiring Diagram (Part 2):

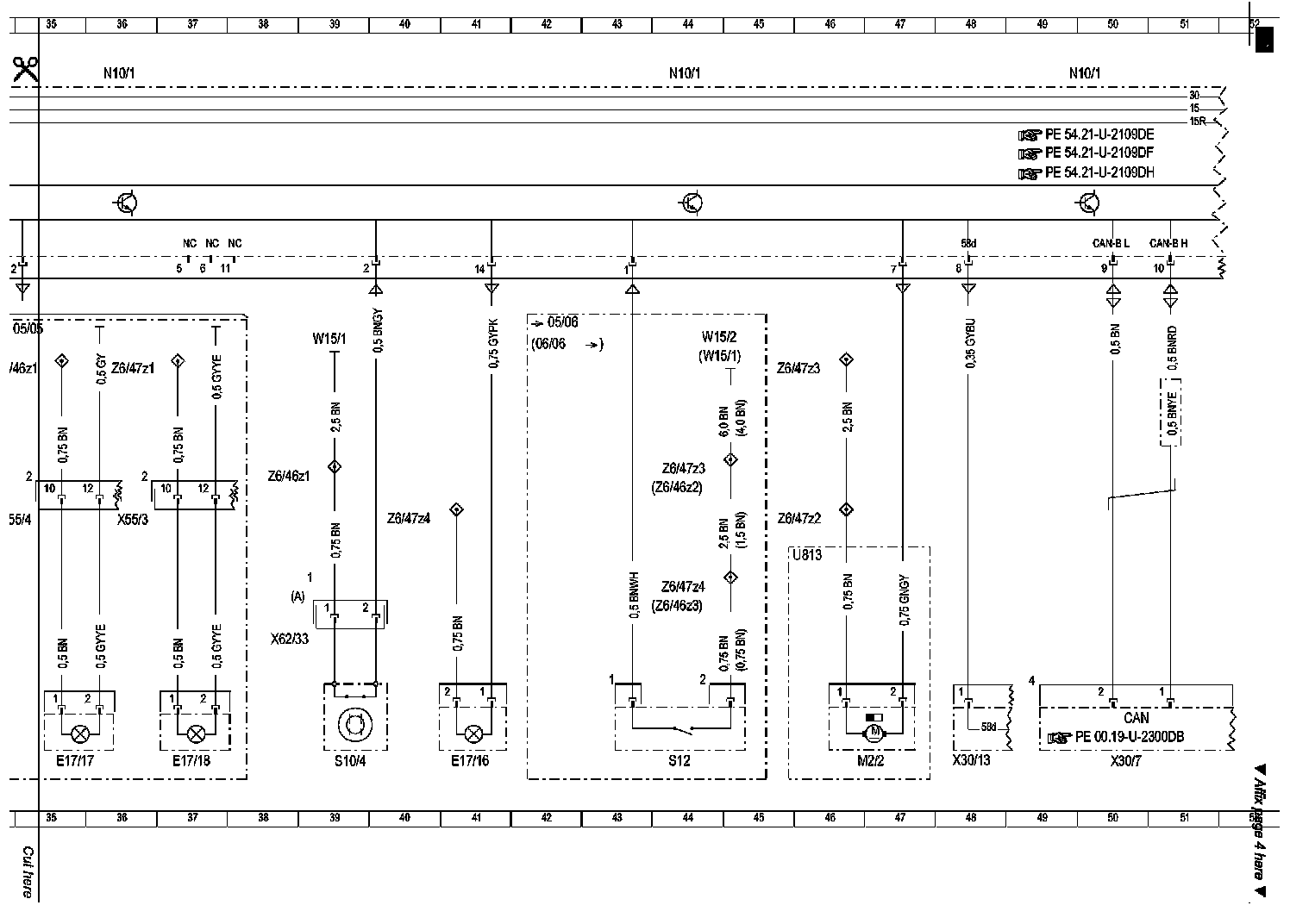

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

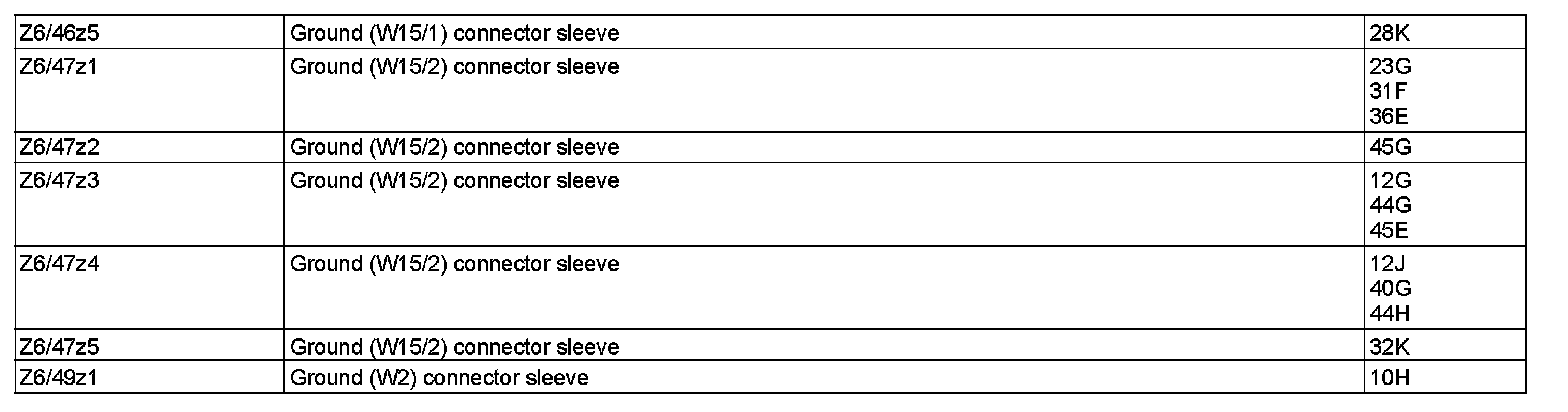

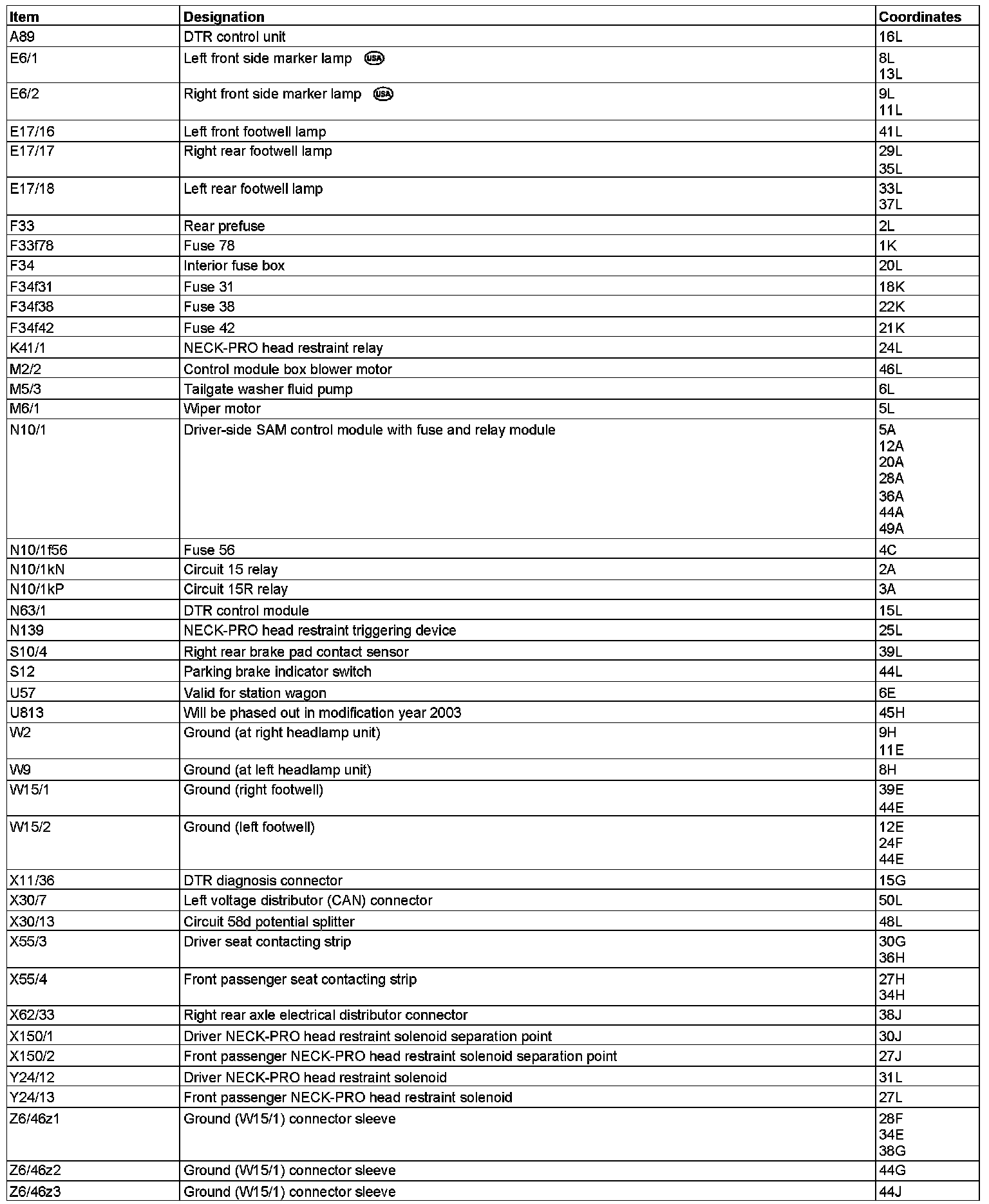

Component Description/Coordinates, A89 To Z6/46z3:

Component Description/Coordinates, Z6/46z5 To Z6/49z1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
