Wiring Diagram SAM With Rear Fuse and Relay Module (N10/2) PE54.21-U-2108DA

Wiring Diagram SAM Control Module With Rear Fuse And Relay Module (N10/2) PE54.21-U-2108DA

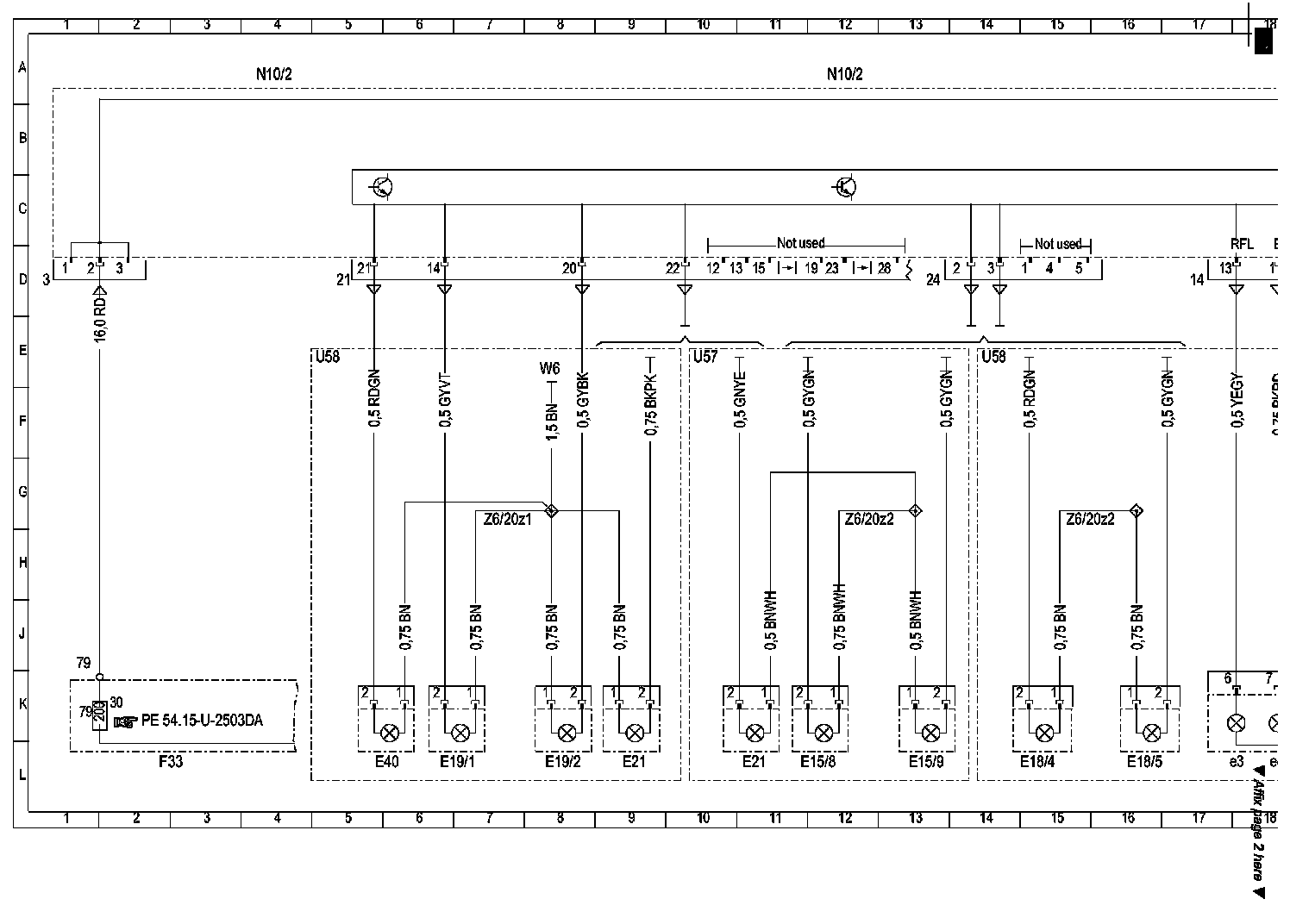

Wiring Diagram (Part 1):

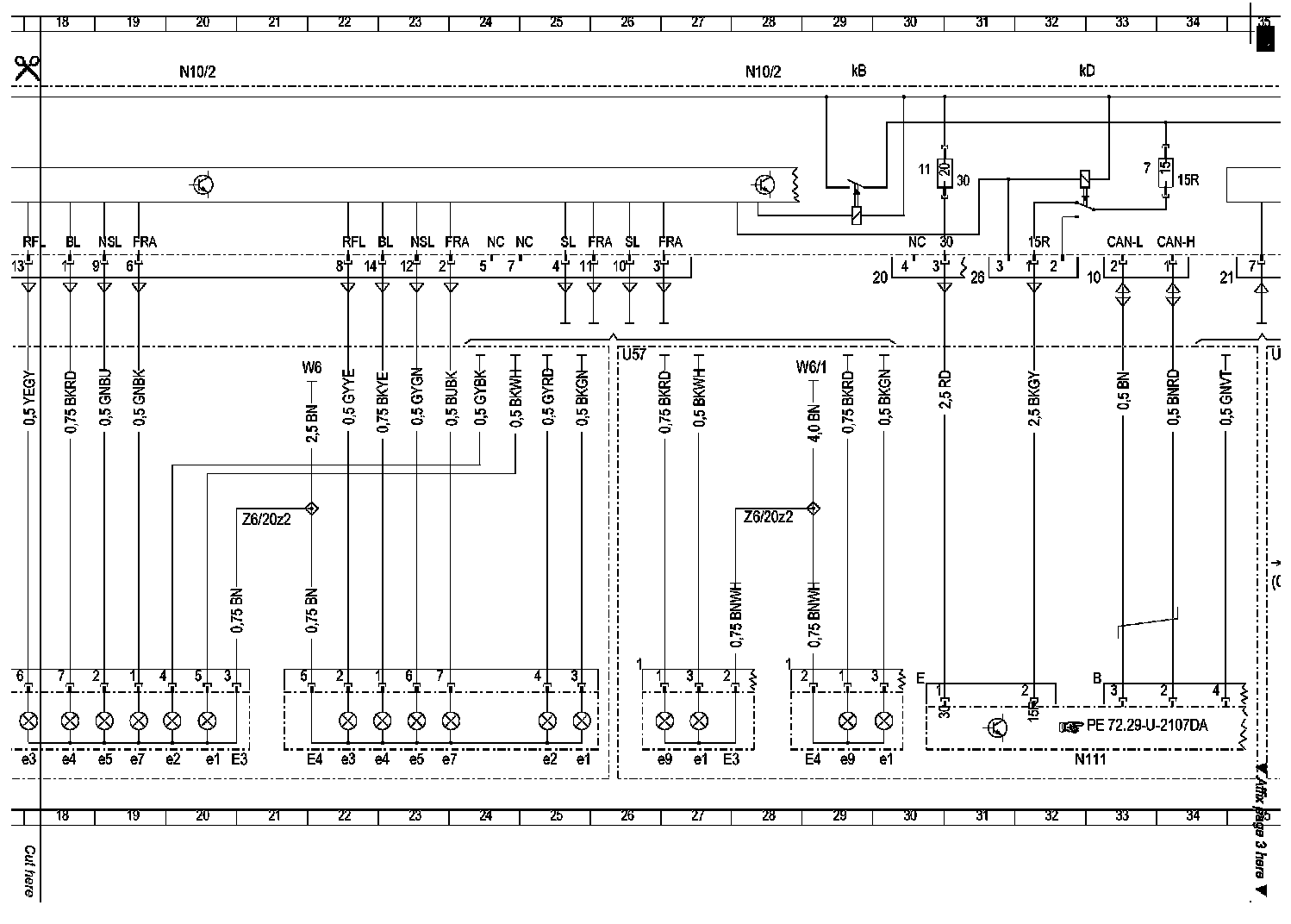

Wiring Diagram (Part 2):

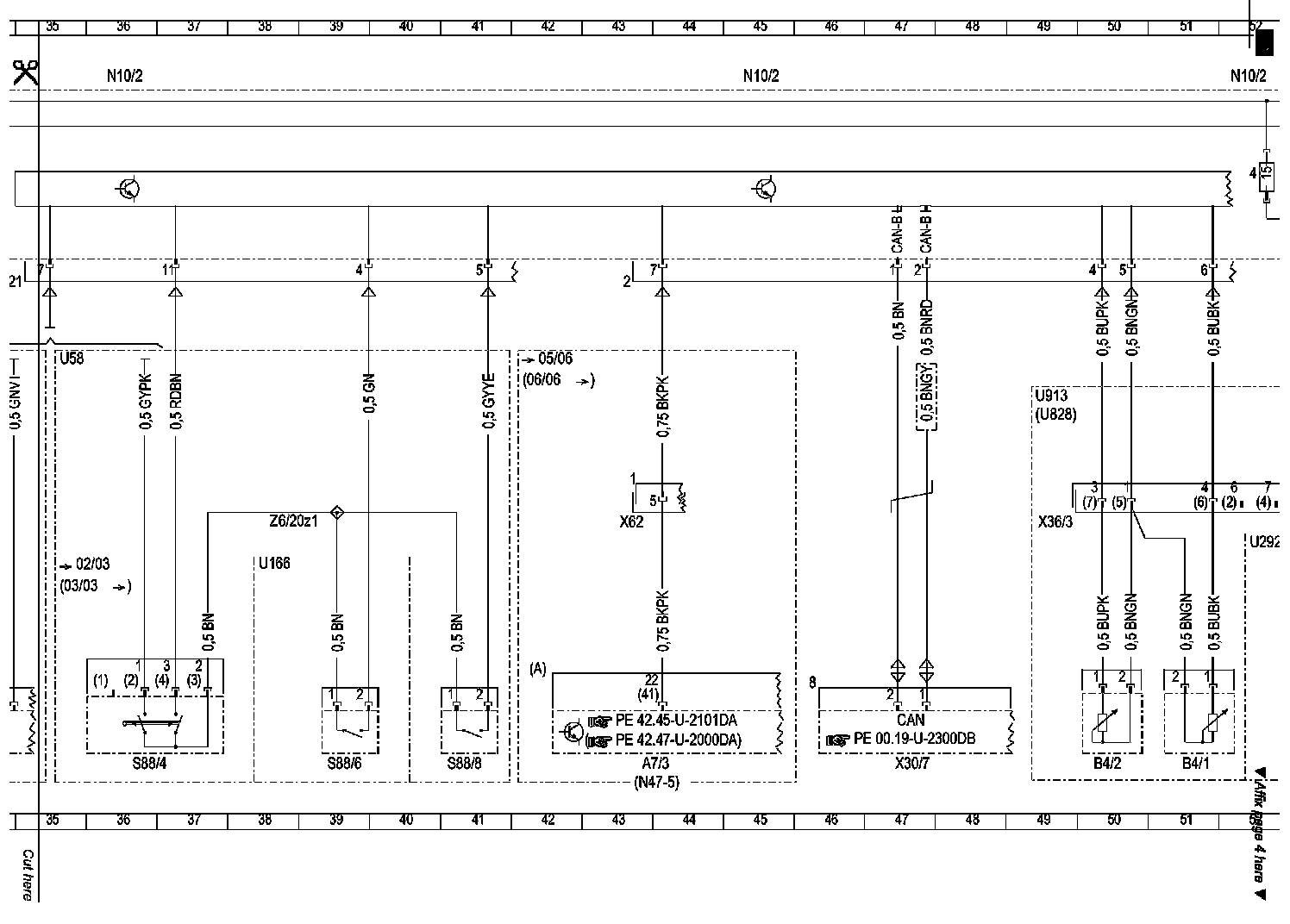

Wiring Diagram (Part 3):

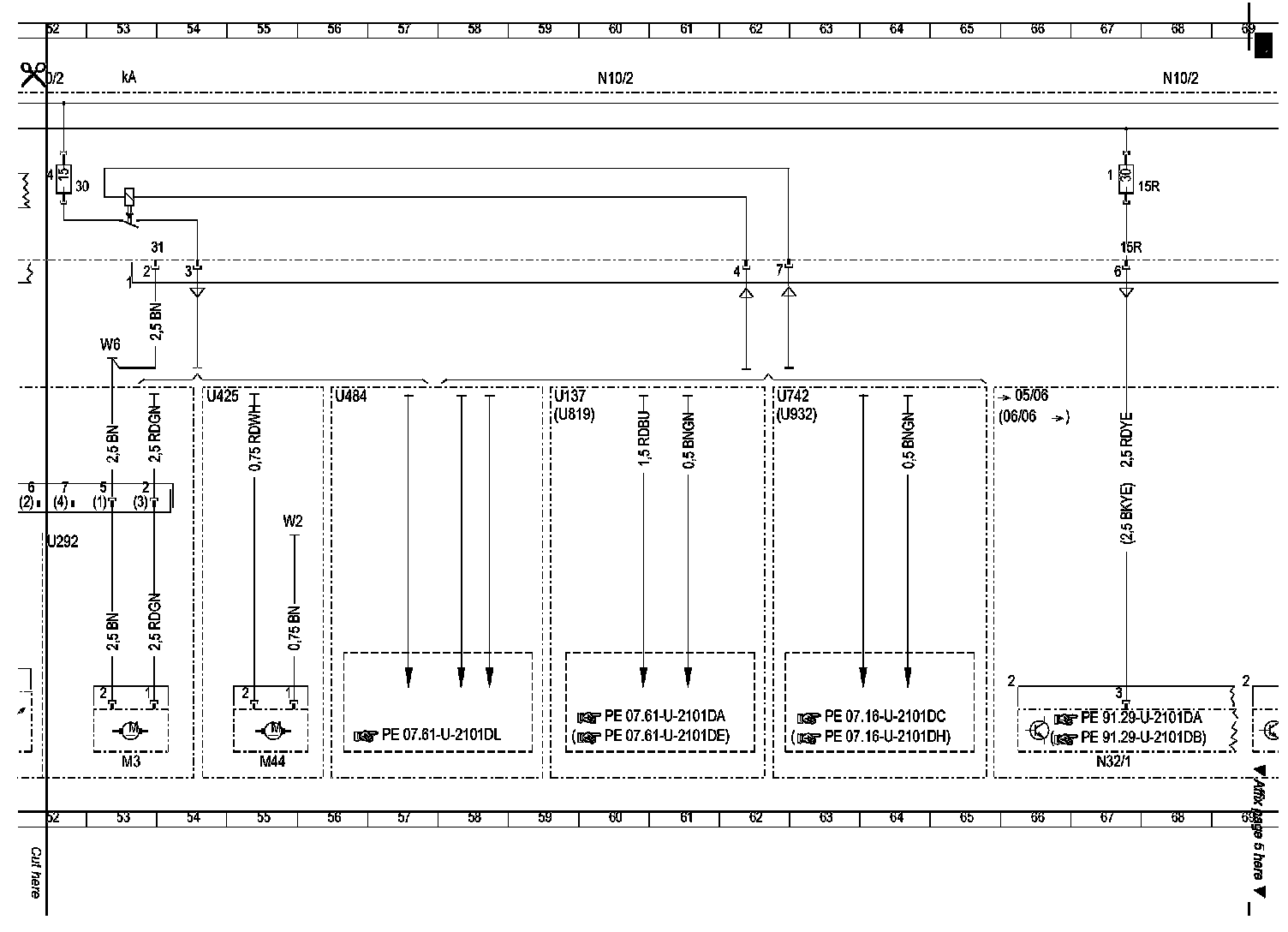

Wiring Diagram (Part 4):

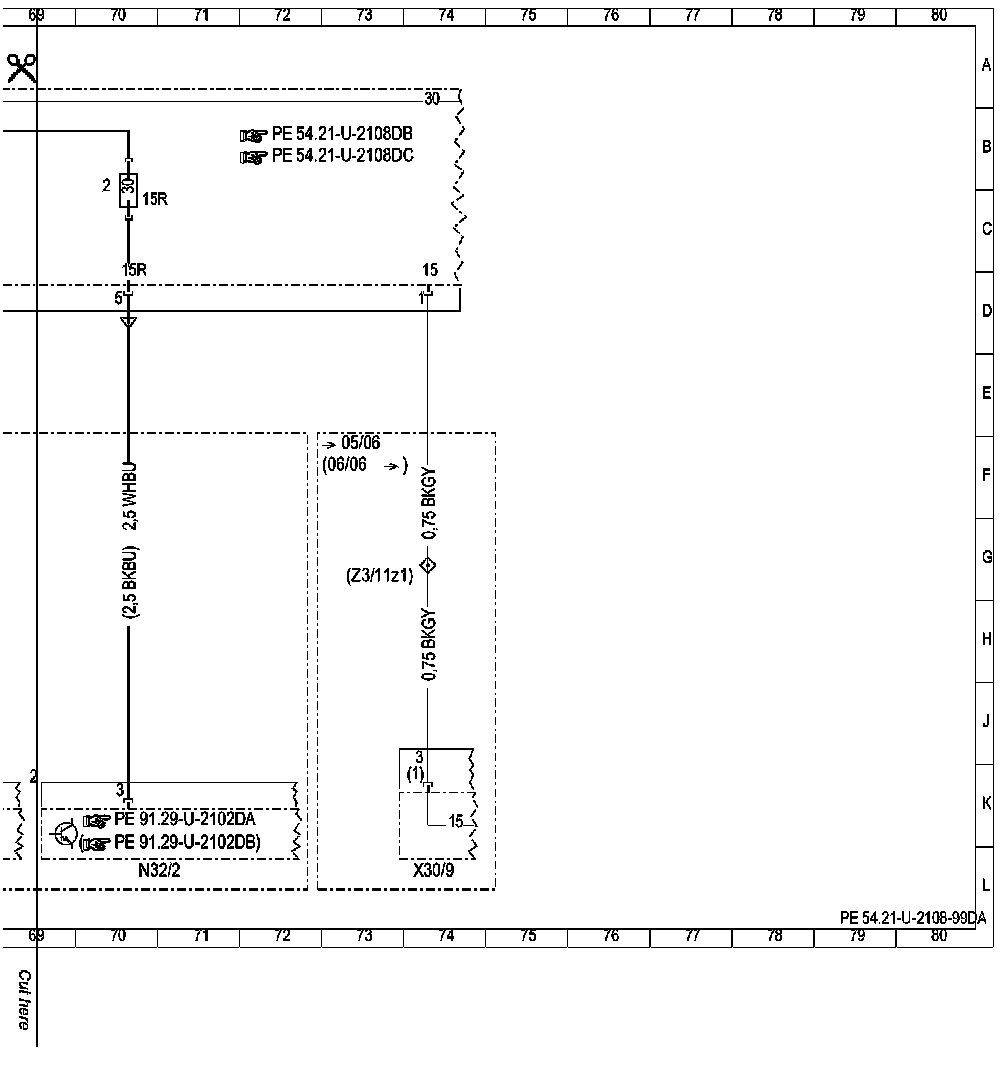

Wiring Diagram (Part 5):

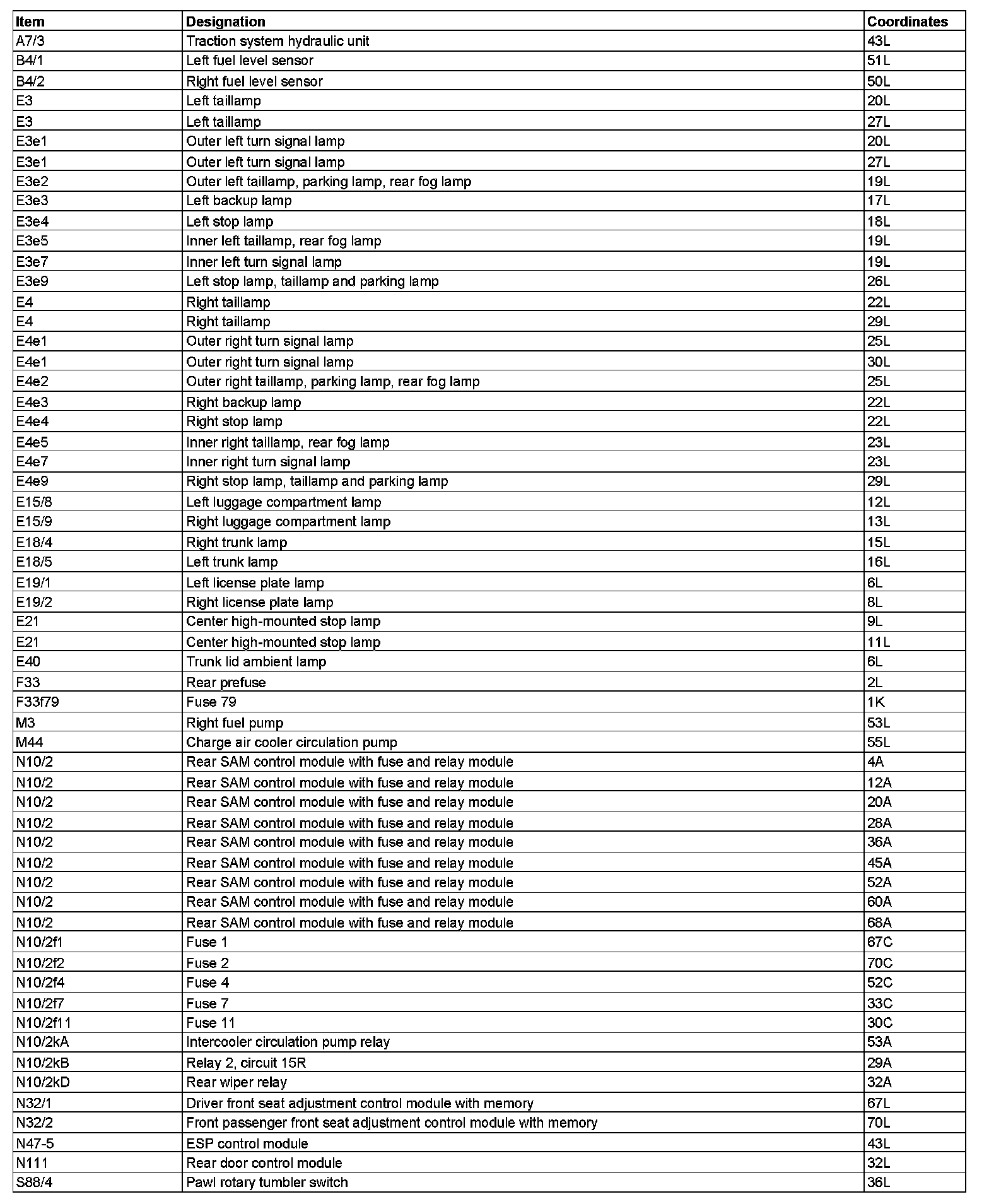

Component Description/Coordinates, A7/3 To S88/4:

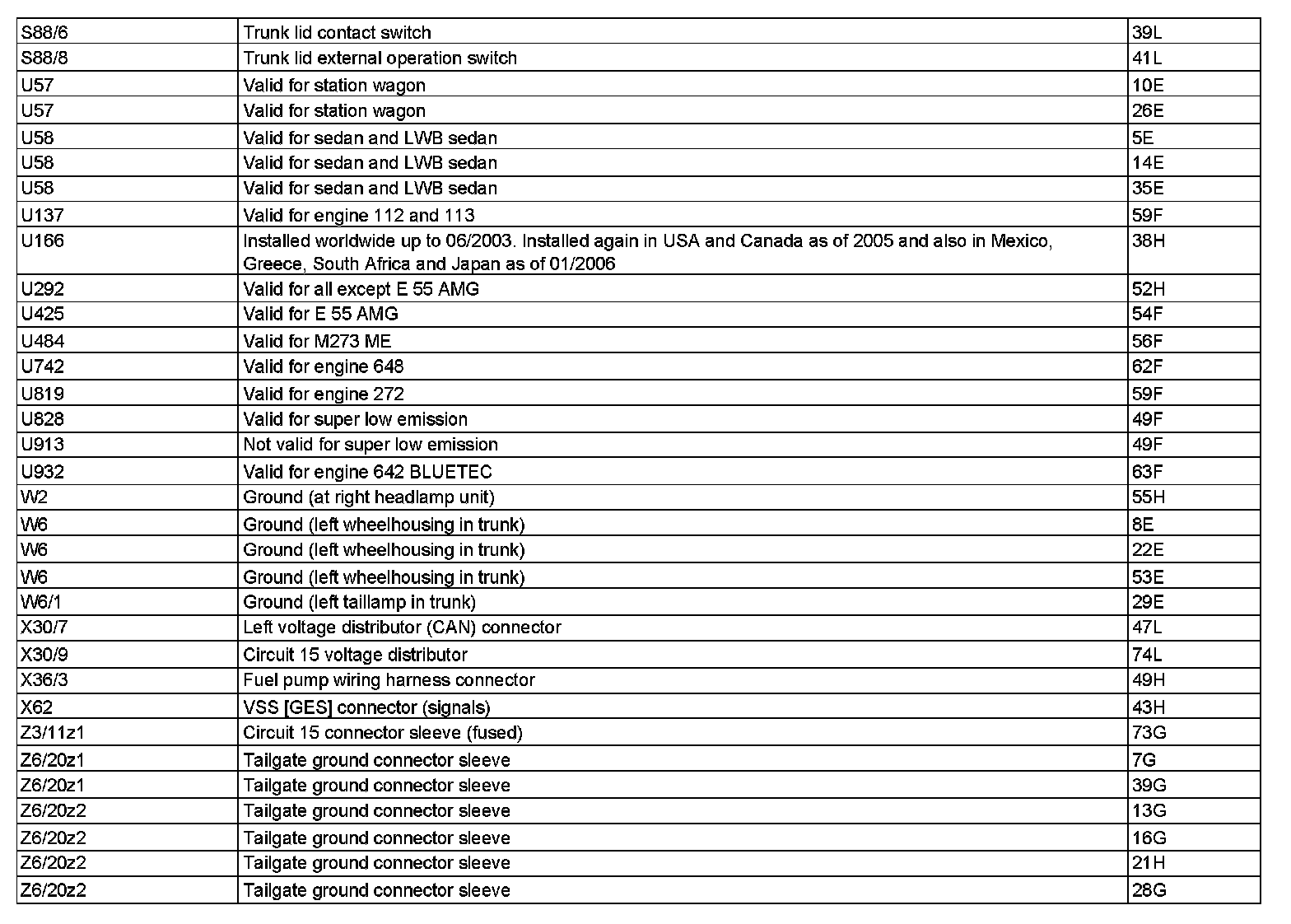

Component Description/Coordinates, S88/6 To Z6/20z2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
