Wiring Diagram Overhead Control Panel (OCP) PE54.21-U-2107DA

Wiring Diagram Overhead Control Panel (OCP) Control Module PE54.21-U-2107DA

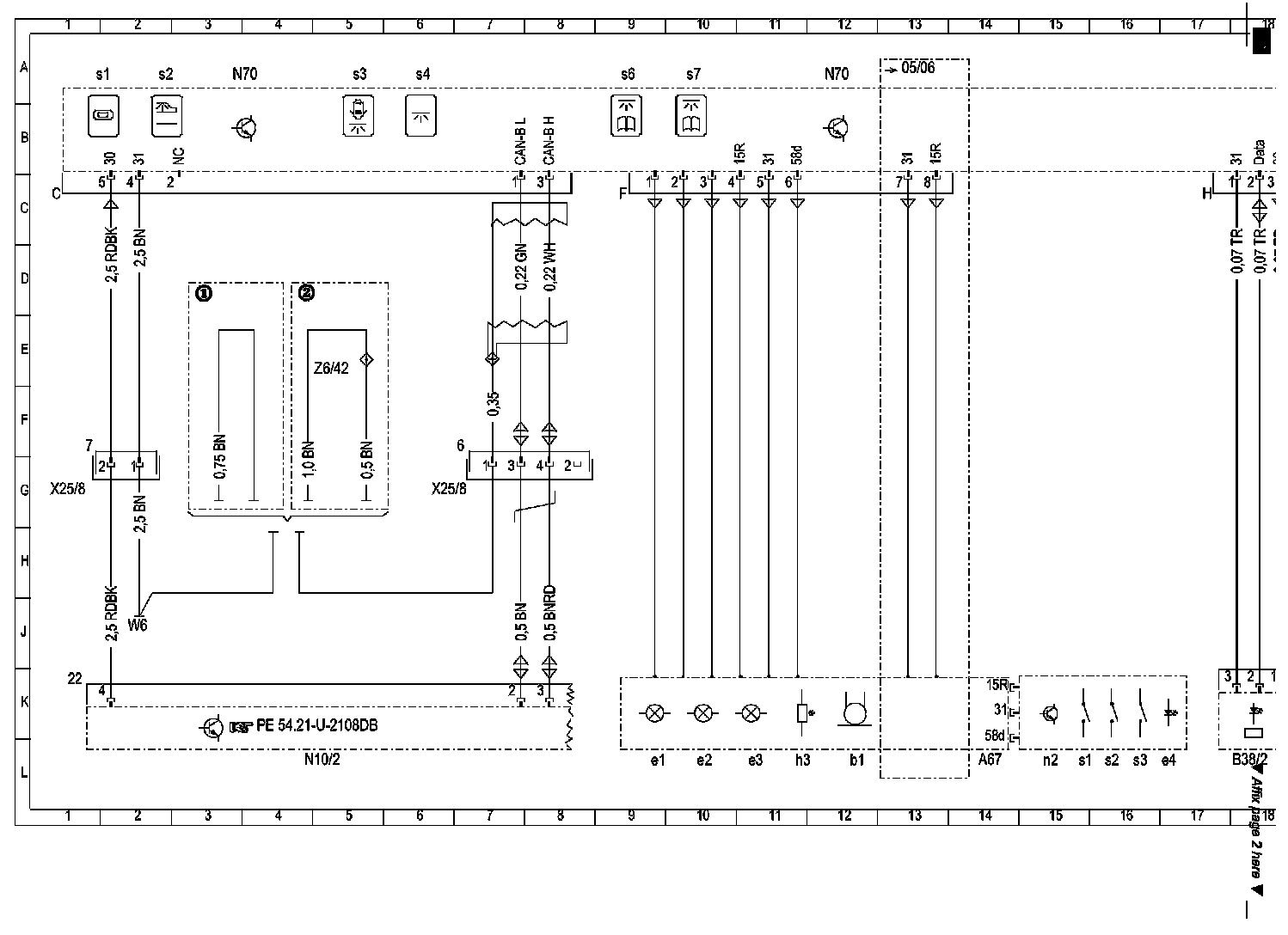

Wiring Diagram (Part 1):

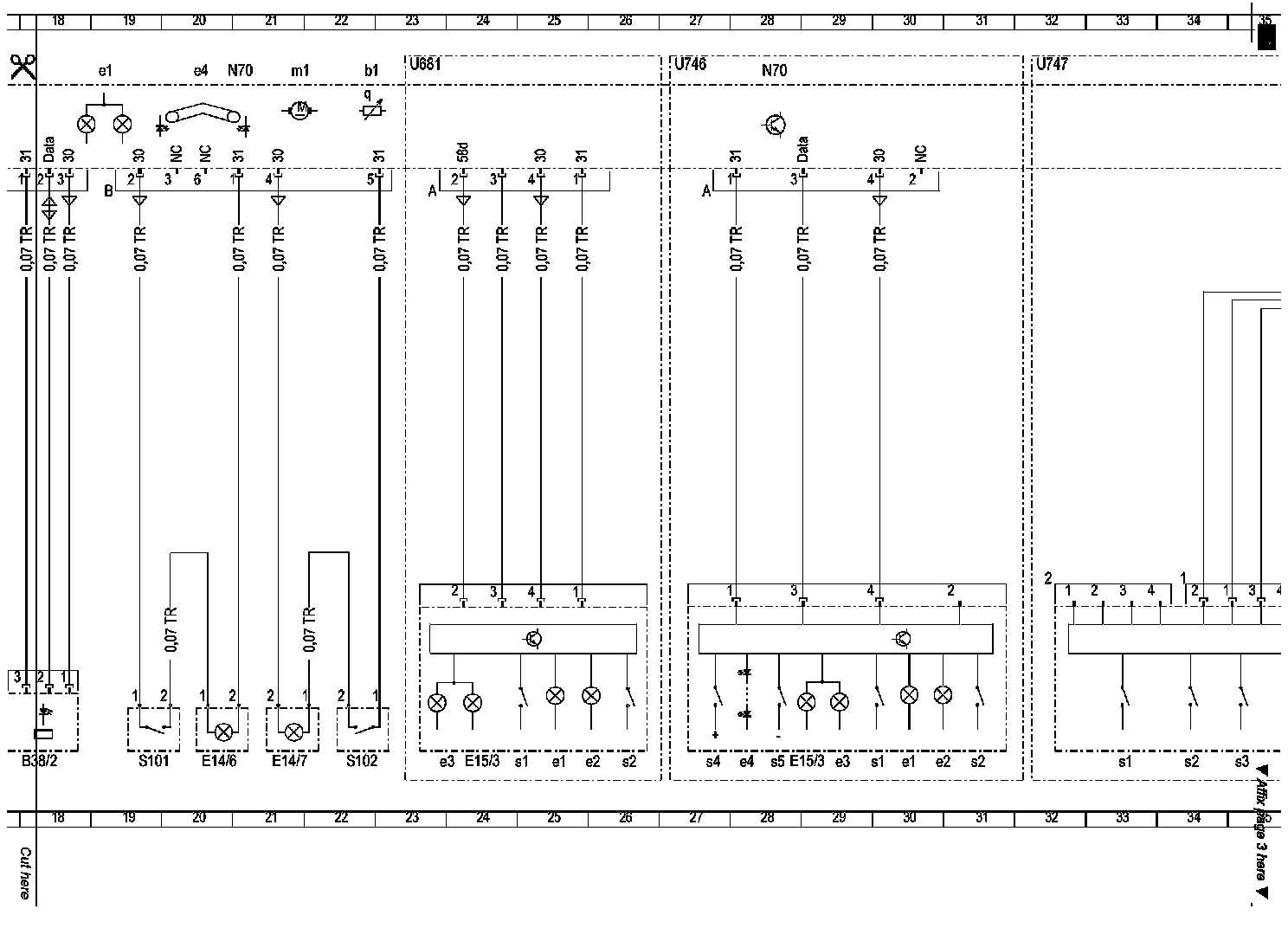

Wiring Diagram (Part 2):

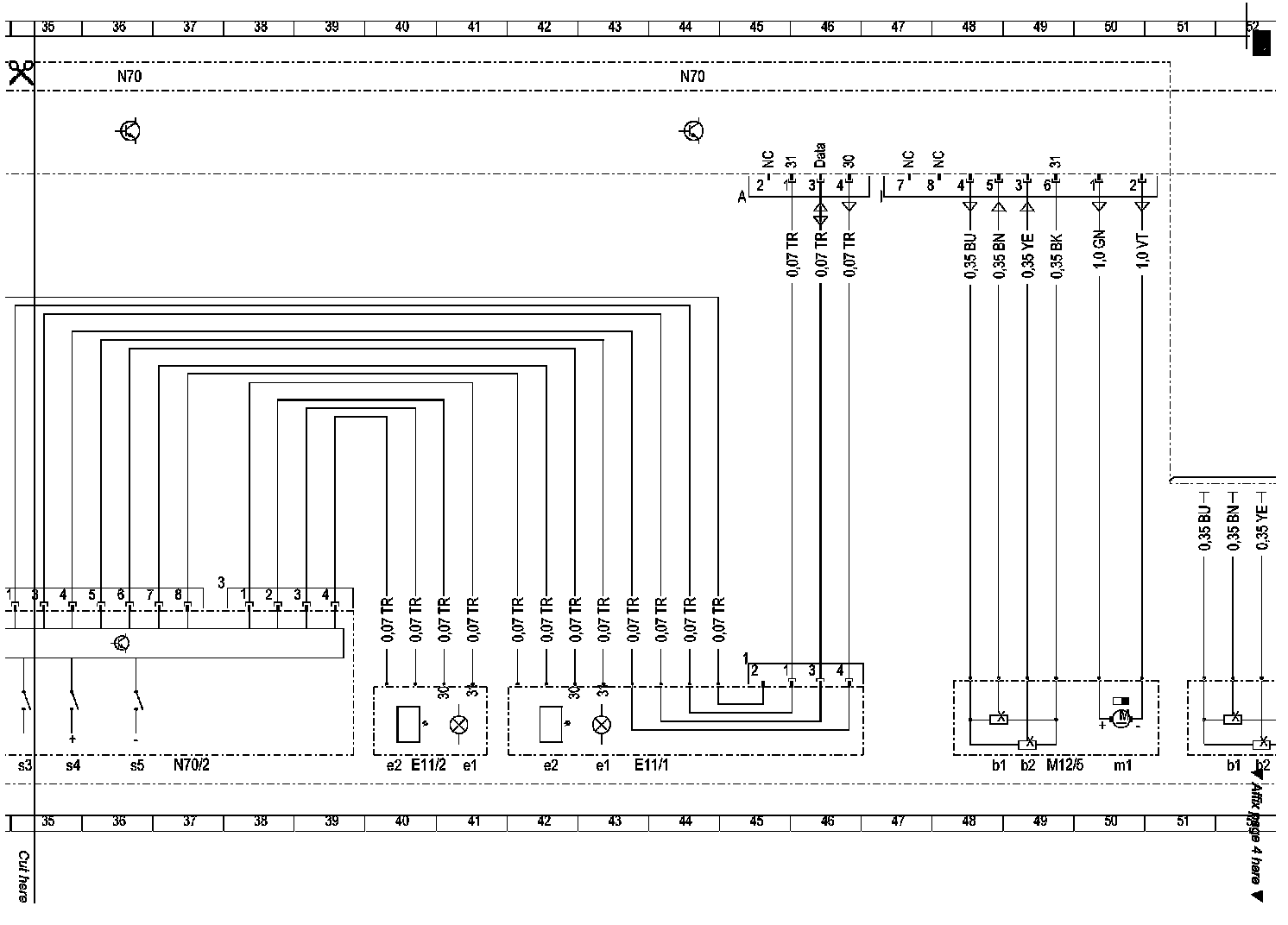

Wiring Diagram (Part 3):

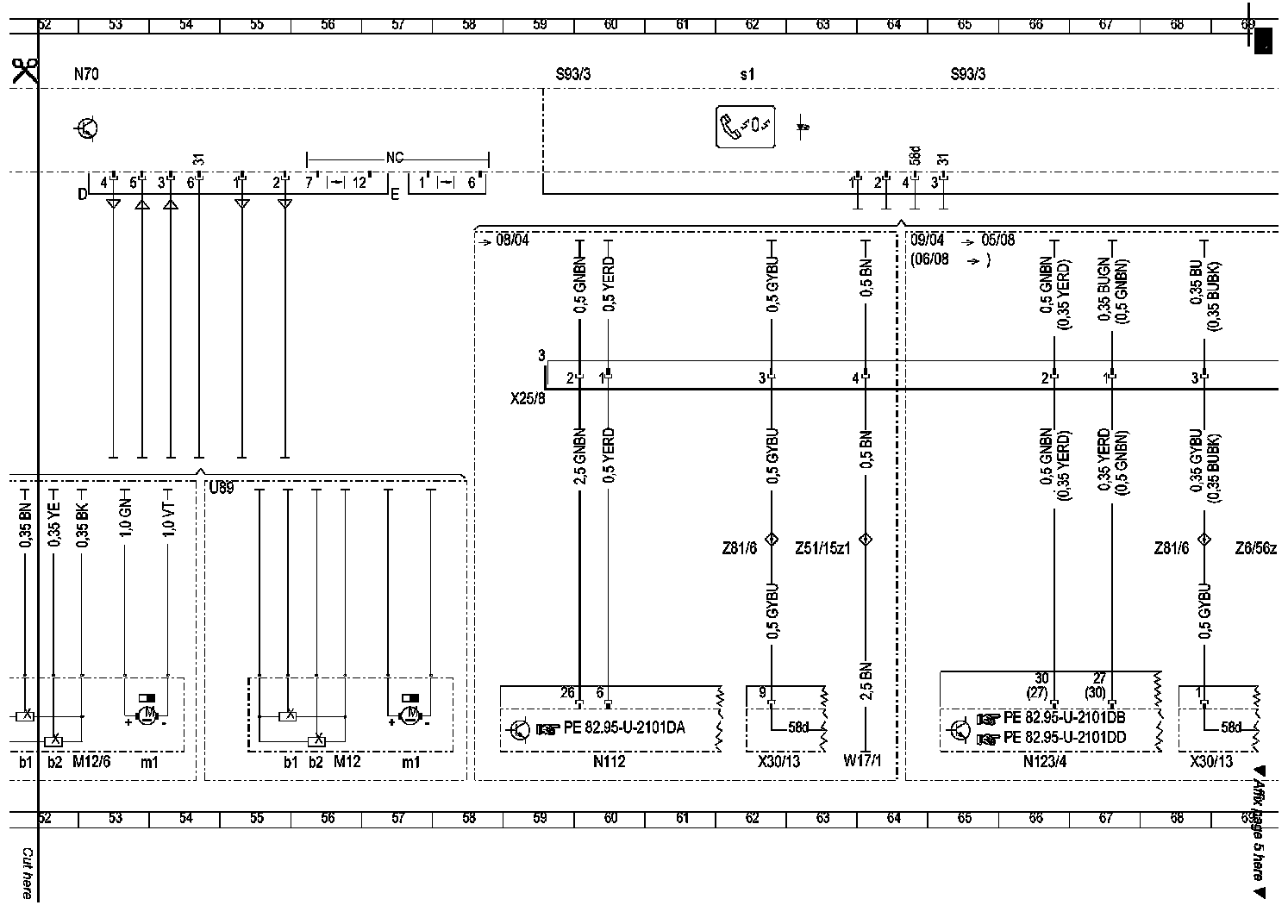

Wiring Diagram (Part 4):

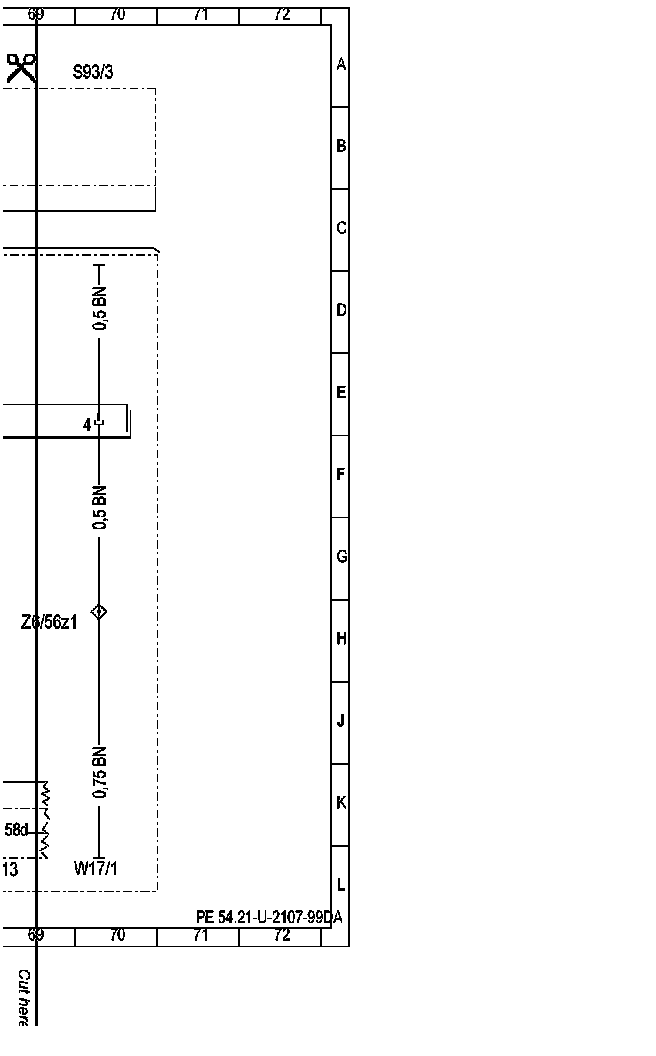

Wiring Diagram (Part 5):

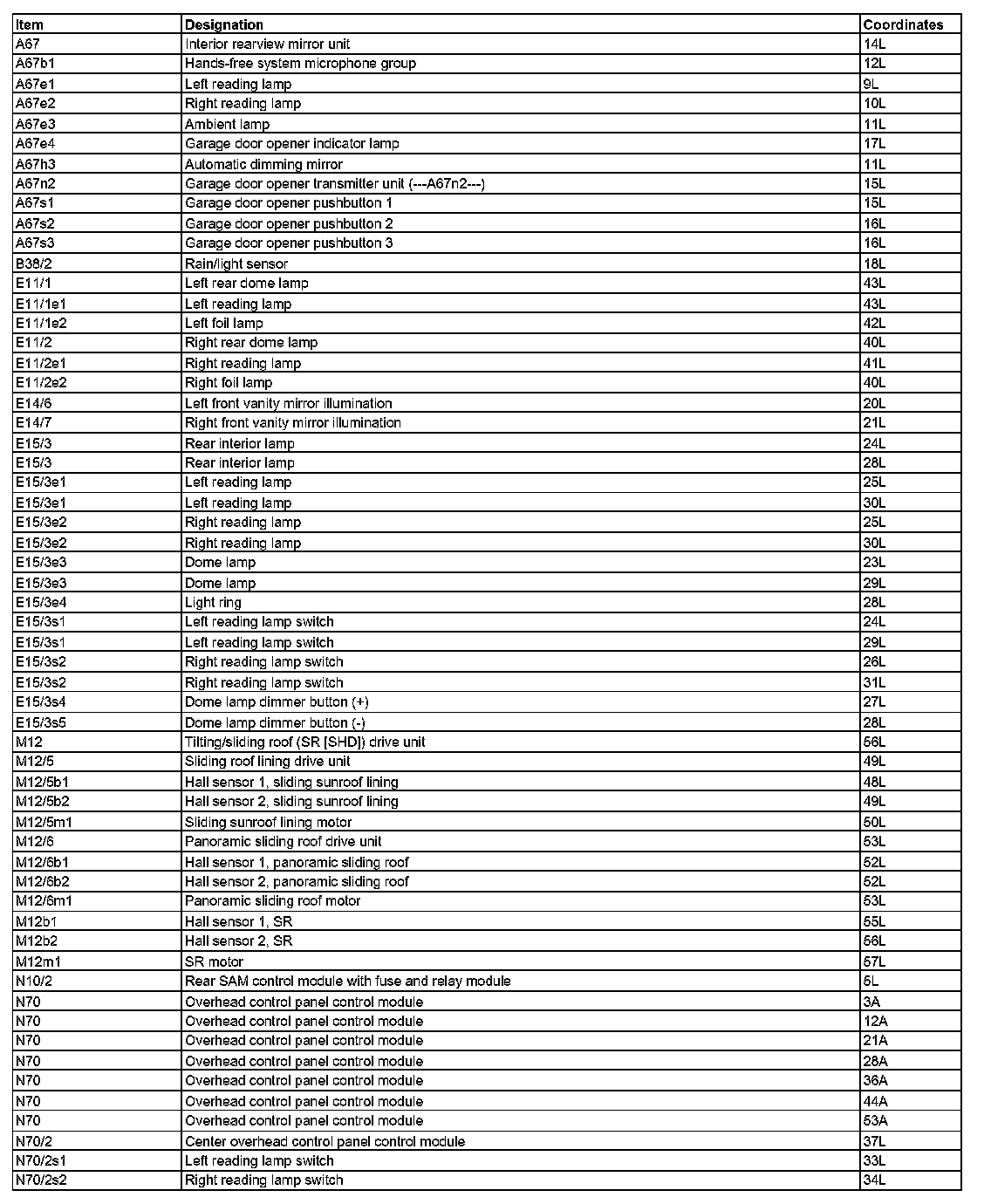

Component Description/Coordinates, A67 T0 N70/2s2:

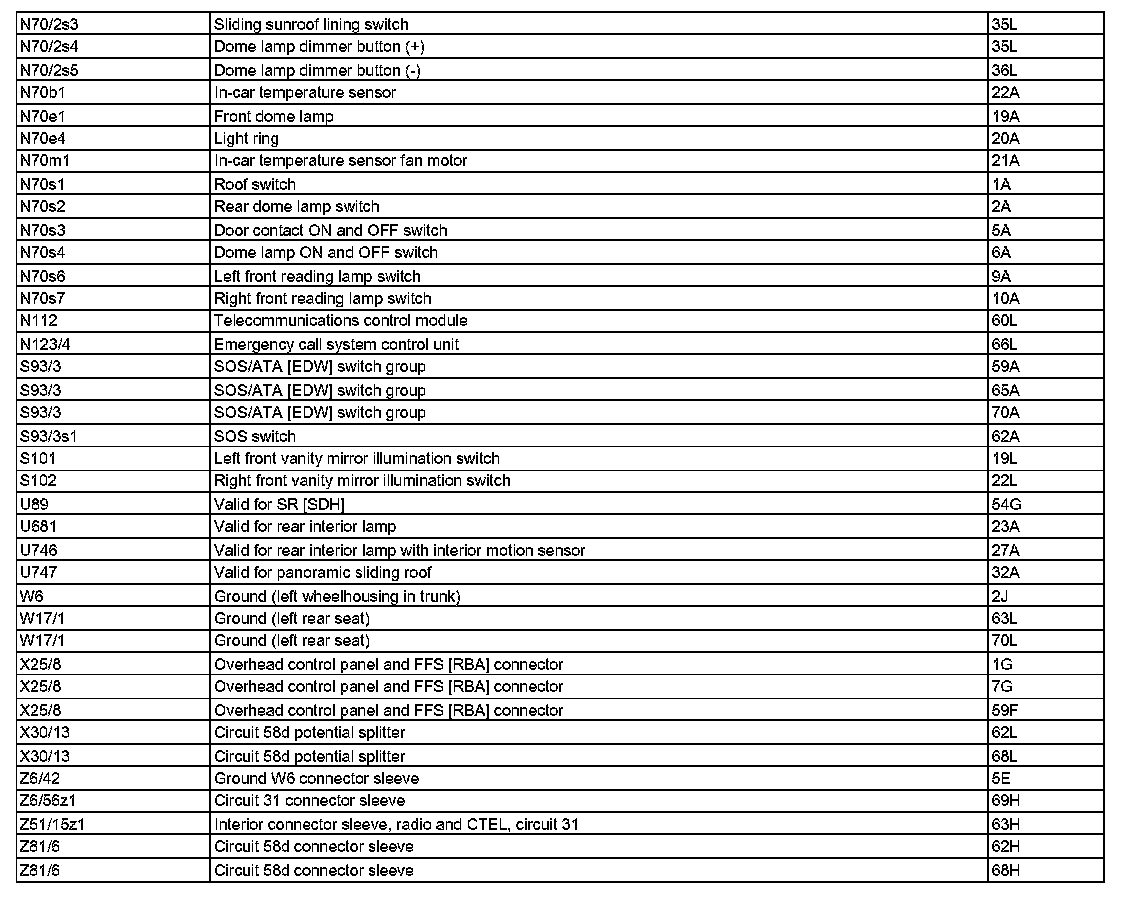

Component Description/Coordinates, N70/2s3 To Z81/6:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
