Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Towing / Trailer System >> Trailer Connector >> Service and Repair >> Removal and Replacement >> AR31.19-P-1350TA Remove/Install Trailer Hitch Socket Housing

AR31.19-P-1350TA Remove/Install Trailer Hitch Socket Housing



AR31.19-P-1350TA Remove/Install Trailer Hitch Socket Housing
- with CODE (550) Trailer hitch
- except CODE (772) AMG styling package - front spoiler, side skirts and rear apron

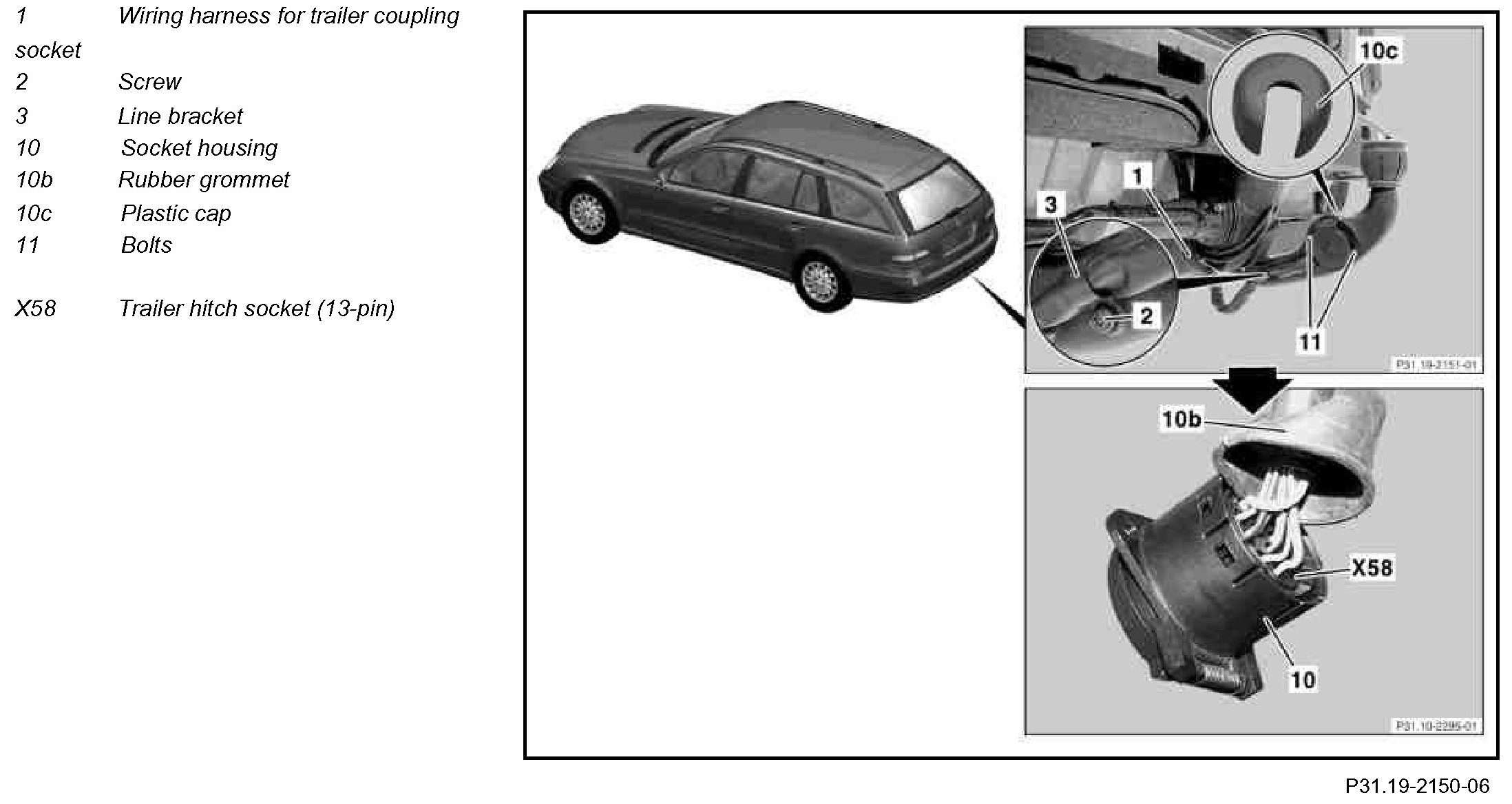

Component Identification:

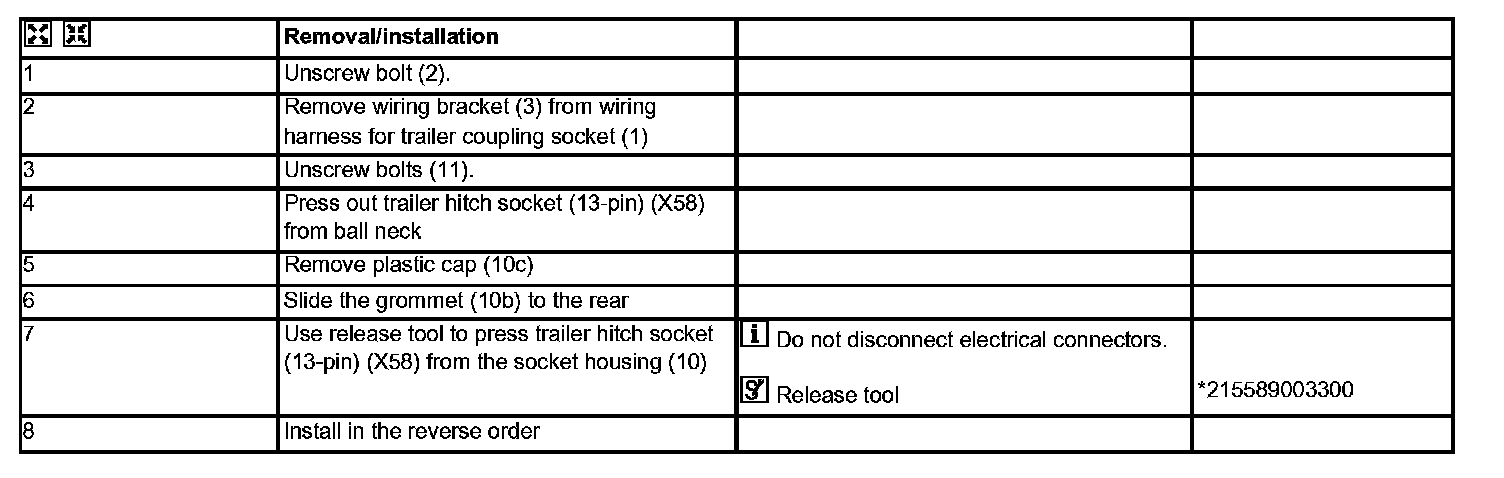

Steps 1 - 8:

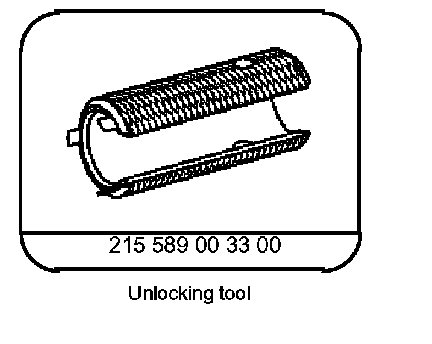

Special Tools:
