AR82.62-P-7874T Remove/Install Loudspeaker In Rear Door

AR82.62-P-7874T Remove/Install Loudspeaker In Rear Door

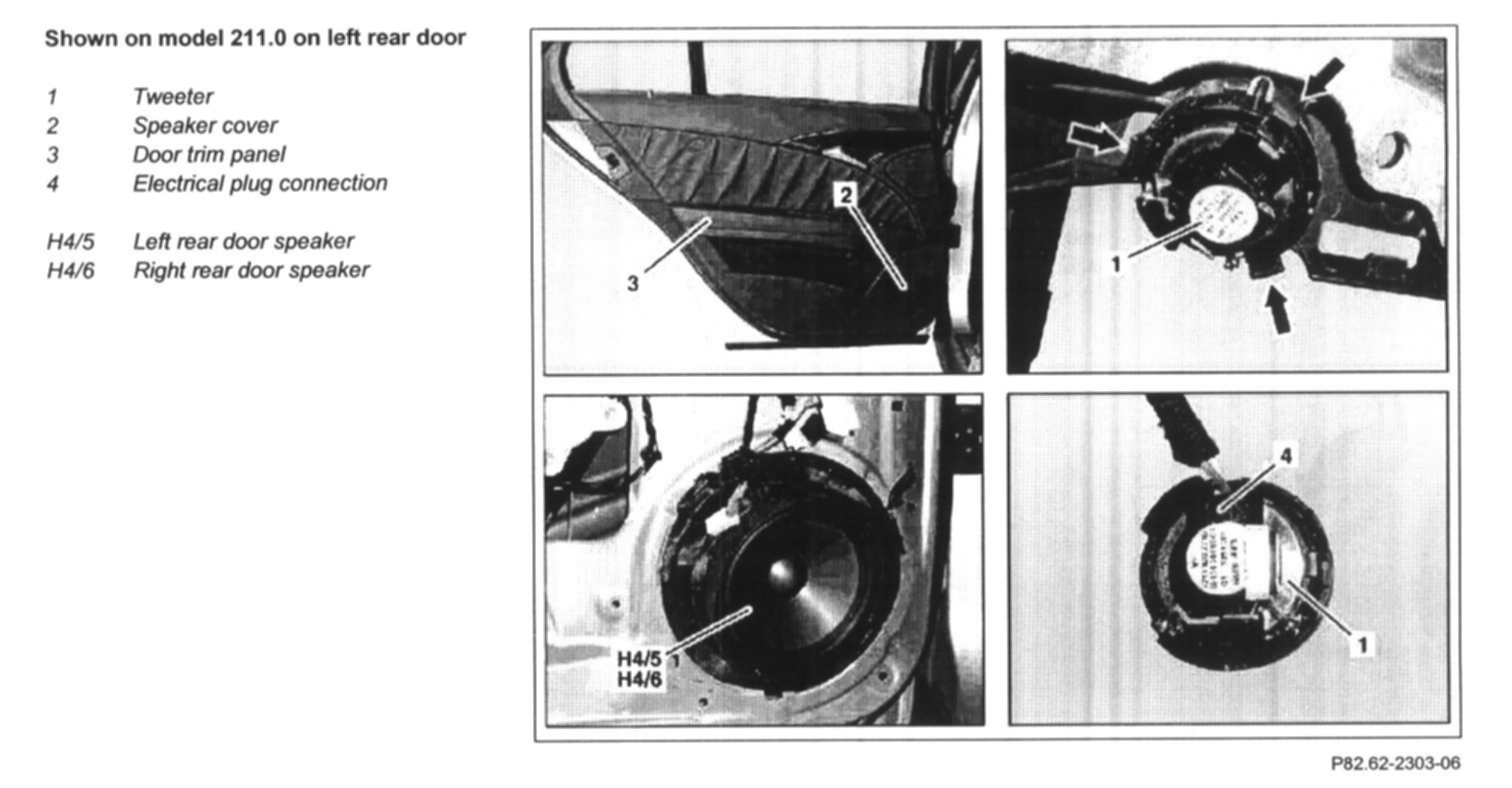

Shown On Model 211.0 On Left Rear Door:

1 Disconnect ground cable of battery
2 Unclip loudspeaker cover (2) from door lining (3) using assembly wedge

See "Special Tools" given below.

3 Unclip tweeter (1) from door lining (3) at latching nooks (arrows) and remove
4 Unplug electrical connector (4) and remove tweeter (1)
5 Remove door foil from rear door

NOTE: Work loose door foil from inner door panel only in region of left rear door speaker (H4/5) or right rear door speaker (H4/6).

6 Rotate and remove left rear door speaker (H4/5) or right rear door speaker (H4/6)
7 Install in the reverse order

Special Tools

Assembly Wedge, P/N # 110 589 03 59 00:
