AR82.62-P-7853T Remove/Install Loudspeaker In Front Footwell

AR82.62-P-7853T Remove/Install Loudspeaker In Front Footwell
- with CODE (273a) Telephone preinstallation for portable CTEL (non-networked) VDA wiring
- with CODE (349) E-Call emergency call system
- with CODE (358) TELE AID
- with CODE (359) TELE AID emergency call system
- with CODE (383b) CP High telephone system
- with CODE (384) Phone preinstallation for USA

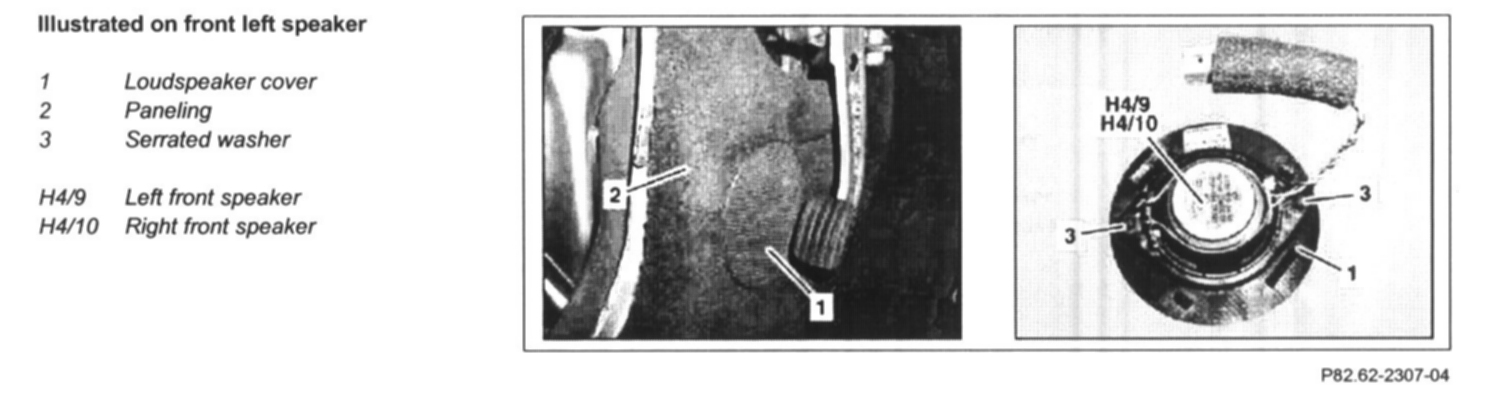

Illustrated On Front Left Speaker:

1 Disconnect ground cable of battery
2 Using longitudinal wedge, unclip the speaker cover (1) out of the paneling (2)

See "Special Tools" given below.

3 Disconnect electrical connector from the left front speaker (H4/9) or right front speaker (H4/10) and detach the speaker cover (1) with the left front speaker (H4/9) or right front speaker (H4/10)
4 Detach toothed lock washer (3) and remove front left speaker (H4/9) or front right speaker (H4/10) from the speaker cover (1)

NOTE: Installation: Replace damaged toothed lock washers (3)

5 Install in the reverse order

Special Tools

Longitudinal Wedge P/N # 115 589 03 59 00:
