AR82.62-P-7836TA Remove/Install Loudspeakers In Rear Shelf

AR82.62-P-7836TA Remove/Install Loudspeakers In Rear Shelf
- with CODE (540a) Electric roller blind for rear window













1 Remove paneling on both C-pillars

NOTE: Do not remove belt end fitting

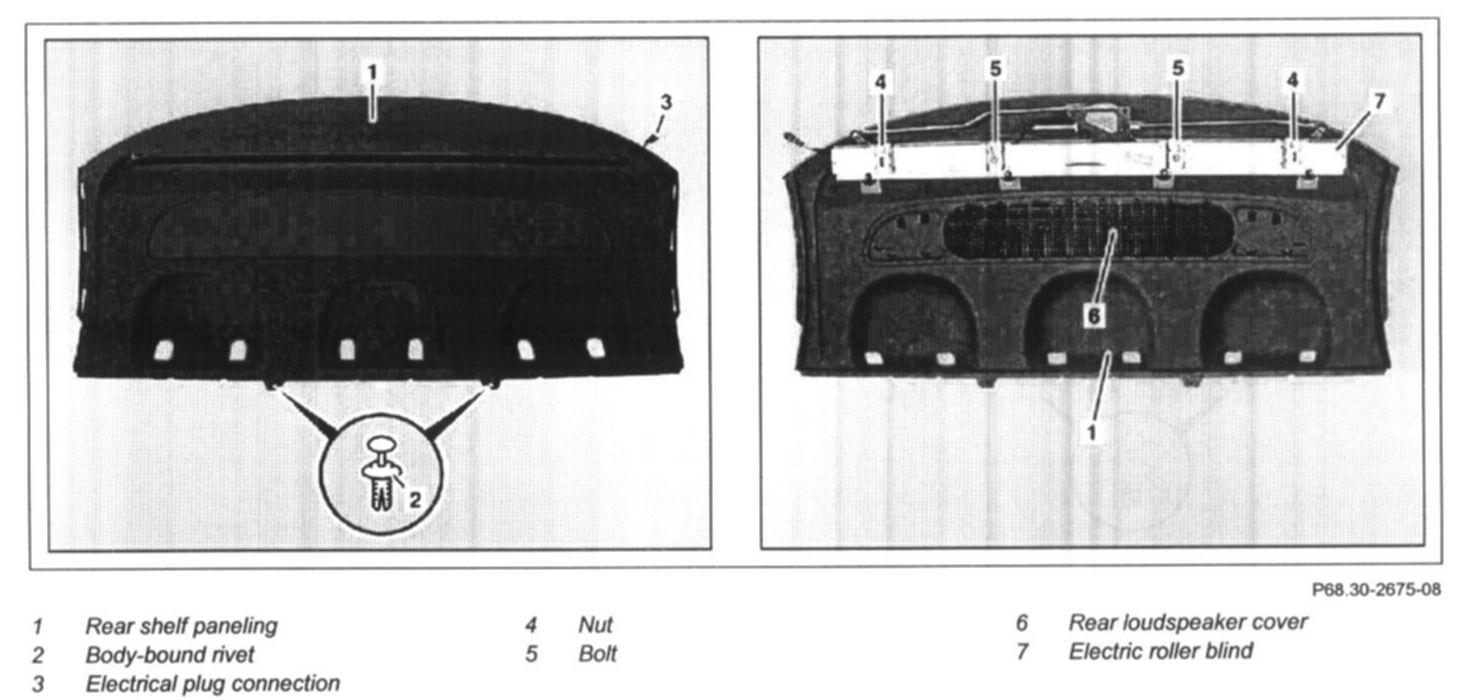

2 Remove spreading rivets (2)
3 Unscrew nuts (4) and bolts (5)

NOTE: Accessible through the luggage compartment

4 Lift rear shelf paneling (1) and unclip the rear loudspeaker cover (6)

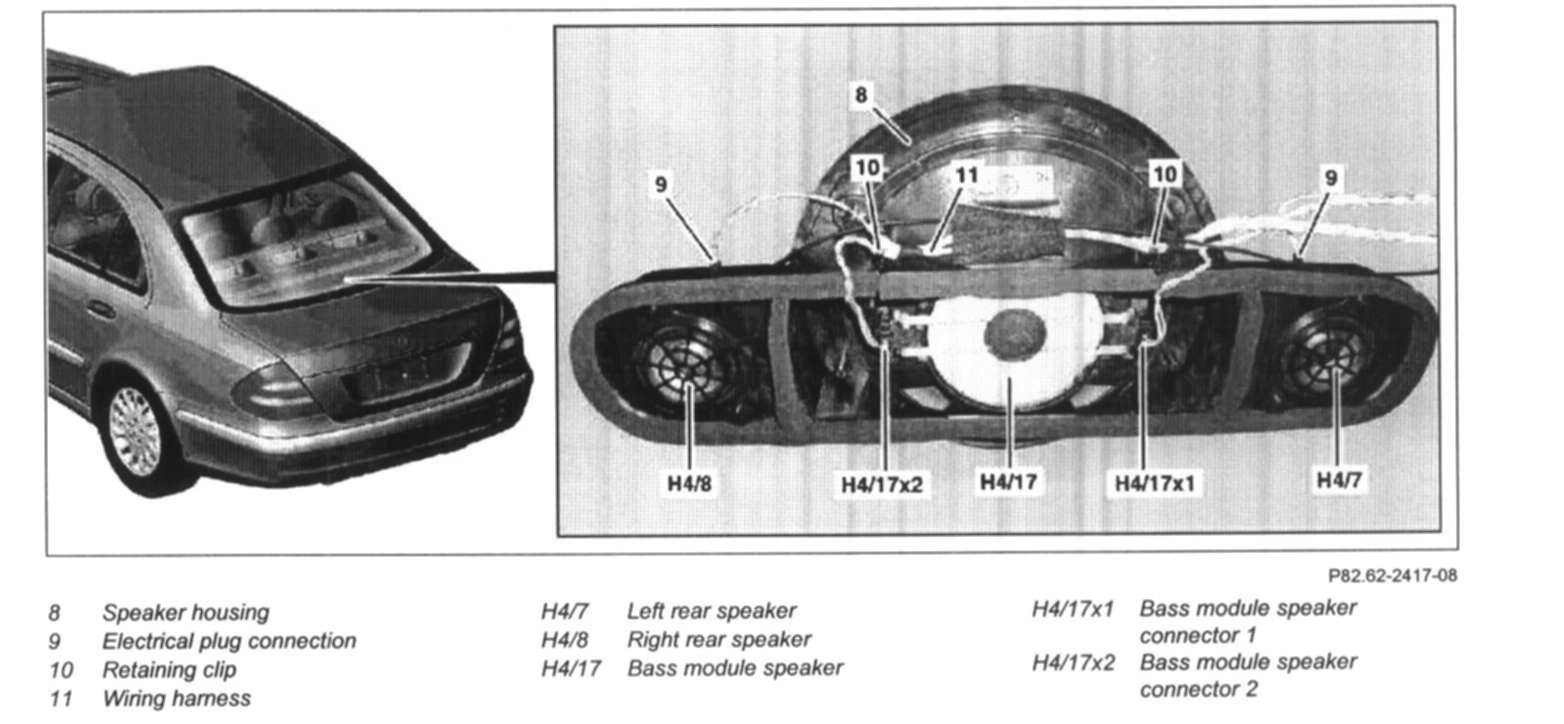

5 Disconnect bass module speaker connector 1 (H14/17x1) and connector 2, bass module speaker (H4/17x2) at the bass module speaker (H4/17)
6 Disconnect electrical connectors (9) at the left rear speaker (H4/7) and right rear speaker (H4/8)
7 Detach retaining clips (10) and remove wiring harness (11) from speaker housing (8)
8 Twist speaker housing (8) counterclockwise until it is unlocked
9 Lift rear shelf paneling (1), together with the speaker housing (8) pull to the front and remove the speaker housing (8) with the speakers

NOTE: Pay attention to the insulating mat under the rear shelf paneling (1) and the electrical connectors (3).

10 Install in the reverse order
