AR82.62-P-7836T Remove/Install Loudspeakers In Rear Shelf



AR82.62-P-7836T Remove/Install Loudspeakers In Rear Shelf
- without CODE (540a) Electric roller blind for rear window







1 Disconnect ground cable of battery
2 Remove rear shelf

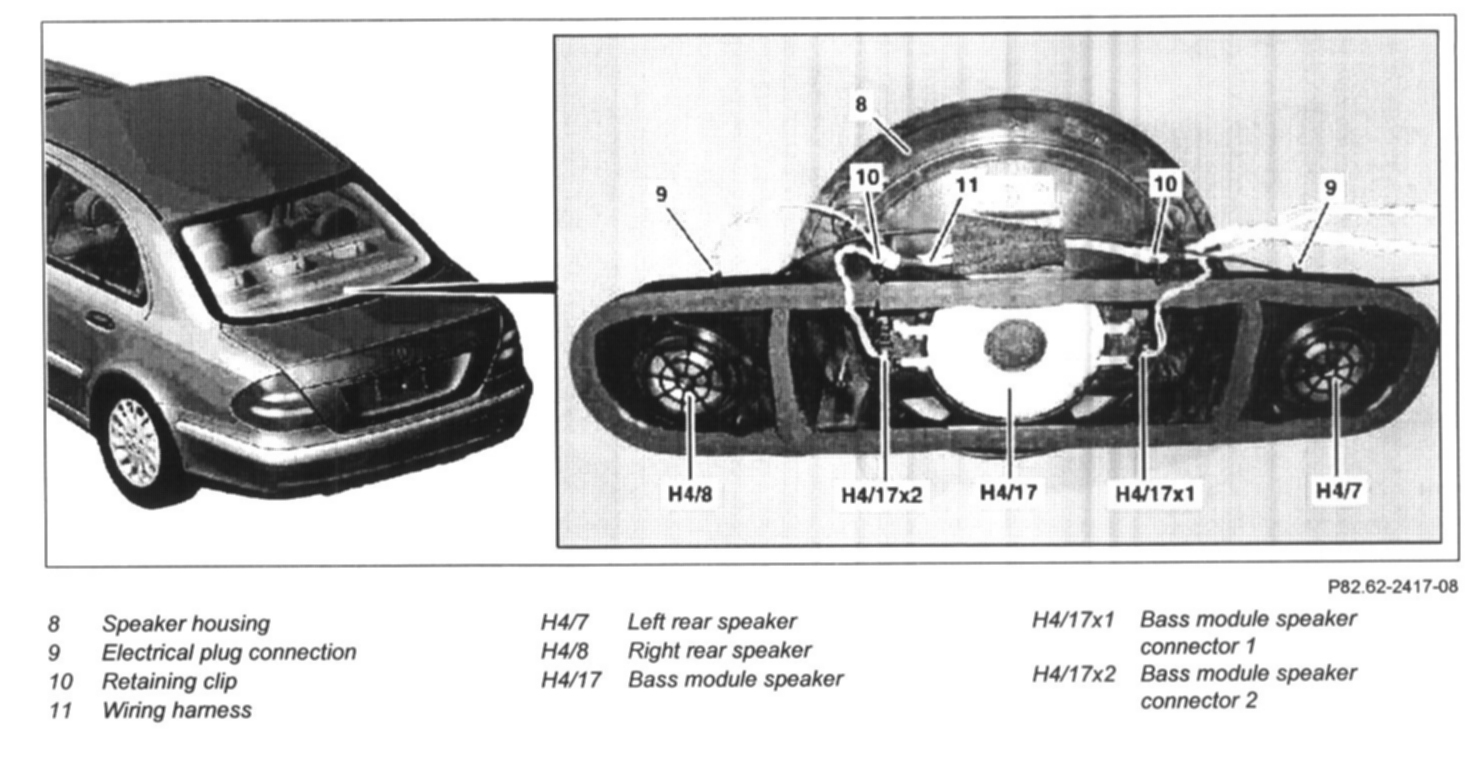

3 Disconnect bass module speaker connector 1 (H4/17x1) and connector 2, bass module speaker (H4/17x2) at the bass module speaker (H4/17)
4 Disconnect electrical connectors (9) at the left rear speaker (H4/7) and right rear speaker (H4/8)
5 Detach retaining clips (10) and remove wiring harness (11) from speaker housing (8)
6 Twist speaker housing (8) counterclockwise and remove
7 Install in the reverse order
