AR68.10-P-1050TA Remove/Install Cover For Speaker
AR68.10-P-1050TA Remove/Install Cover For Speaker
AR68.10-P-1050TA Remove/Install Cover For Speaker

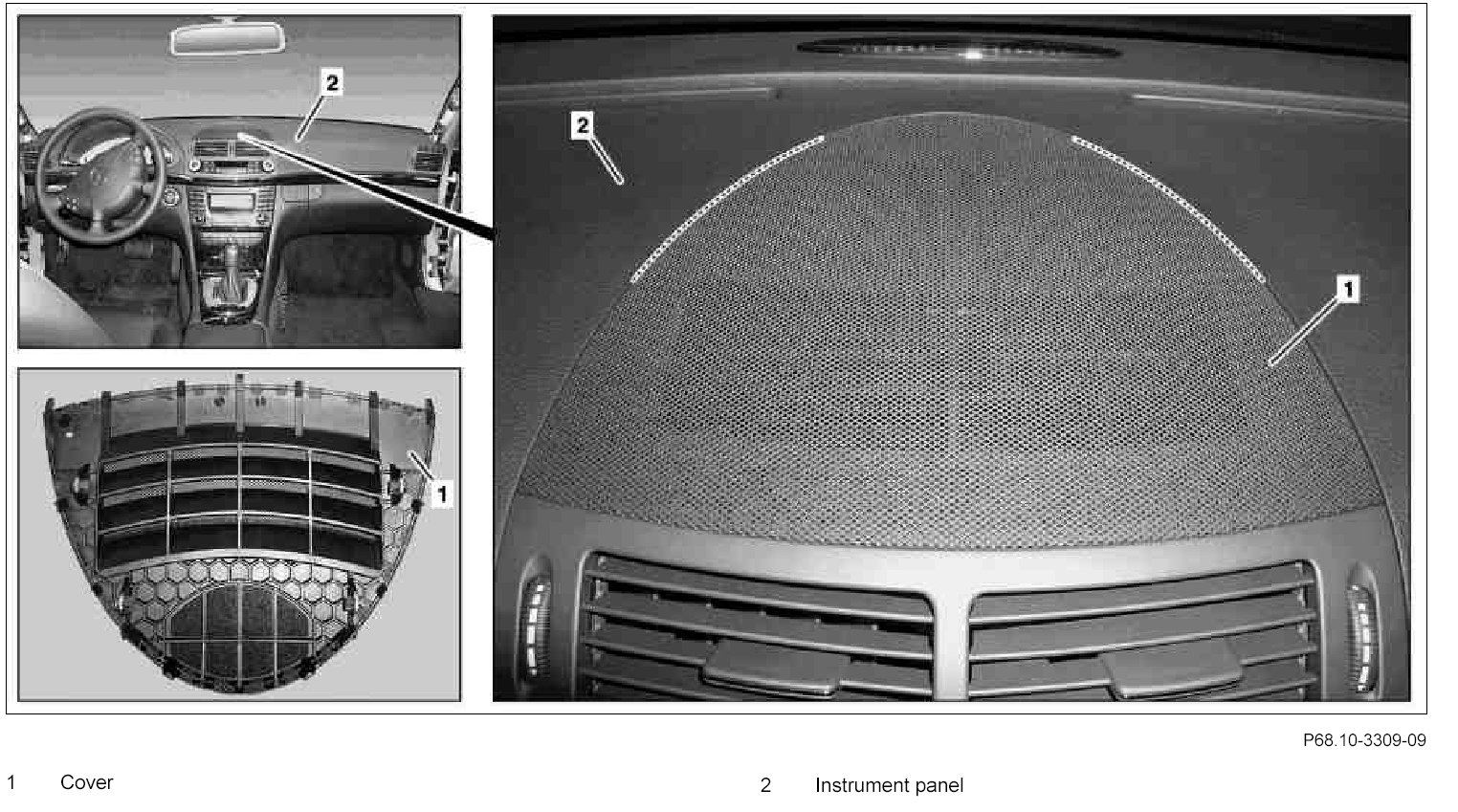

Component Identification:

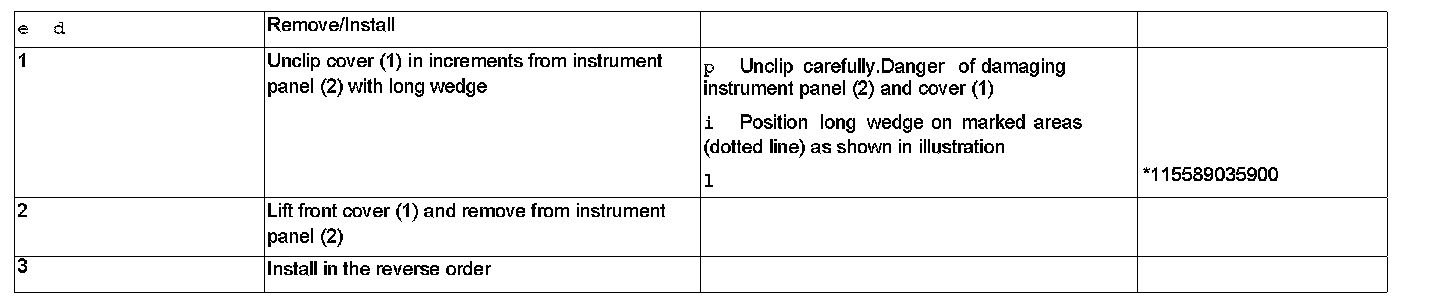

Steps 1 - 3:

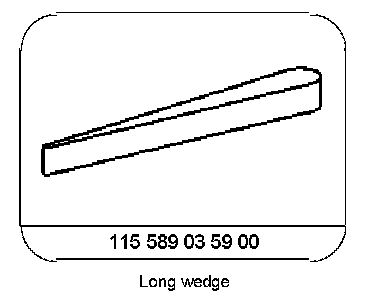

Special Tools:
