AZ82.70-P-0001-03TB Retrofit Speaker



AZ82.70-P-0001-03TB Retrofit Speaker
- with CODE (273) Portable CTEL preinstallation (non-networked), VDA wiring

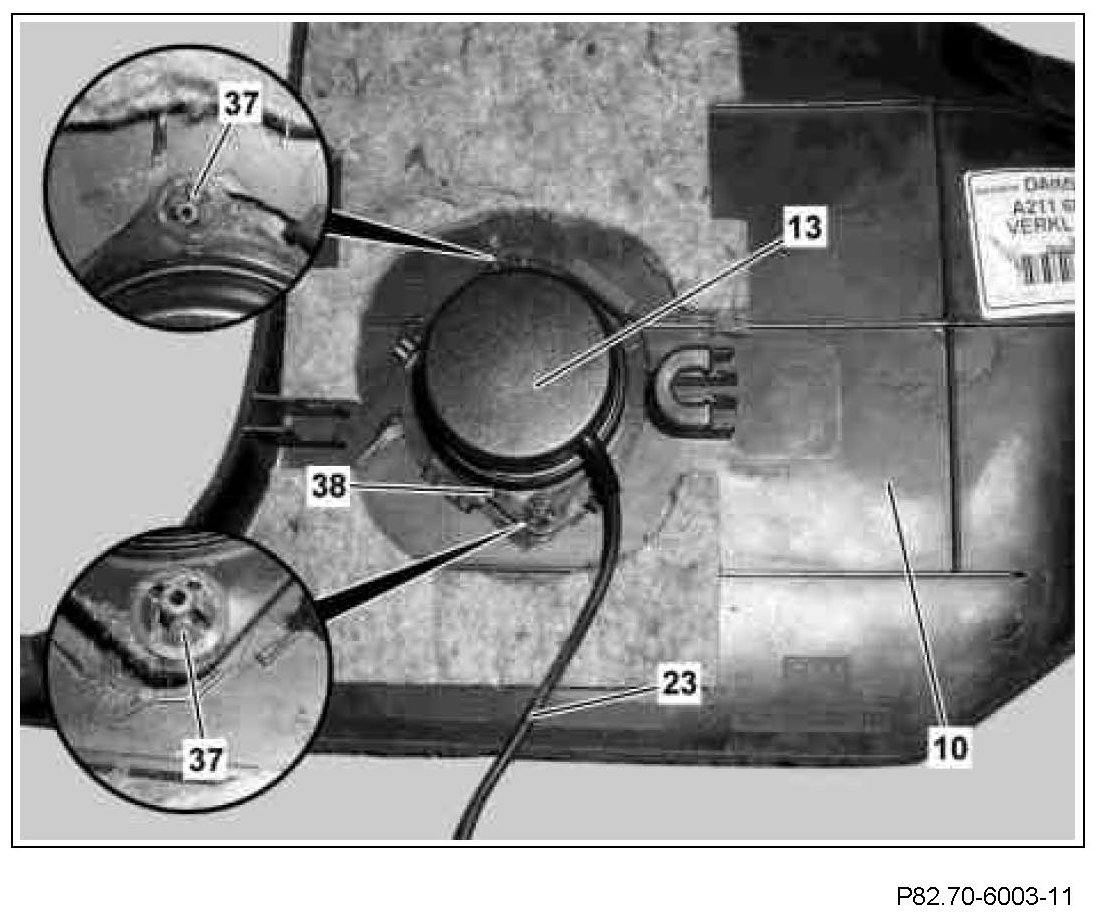

1 Screw hands-free system speaker (13) into the speaker bracket (38).
2 Fasten speaker bracket (38) to trim (10) with two new toothed lock washers (37).

As shown in the picture the speaker wiring harness (23) of the hands-free system speaker (13) must run downwards.

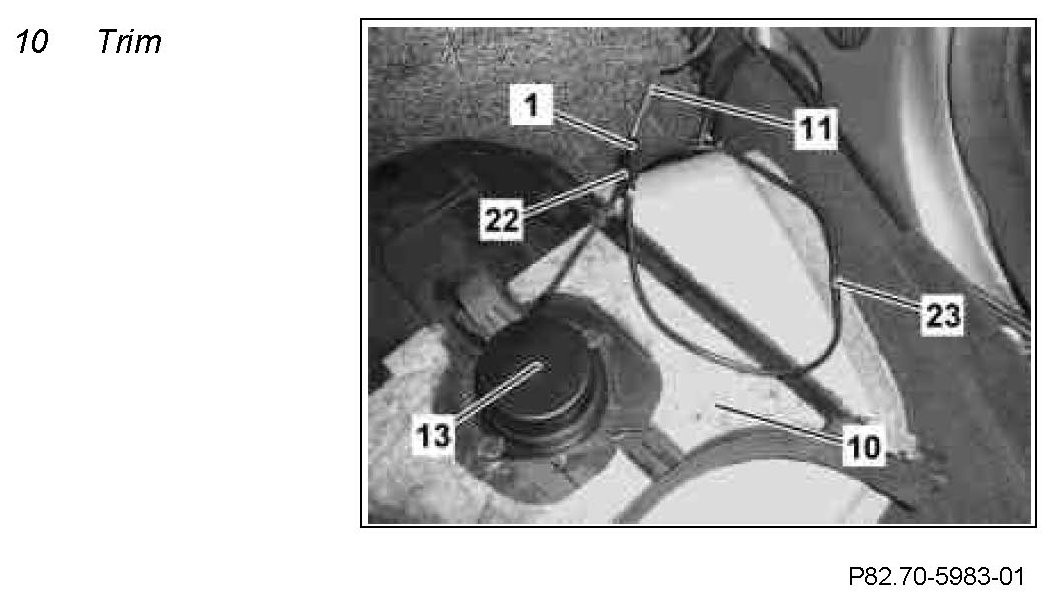

3 Contact speaker connector (22) of the speaker wiring harness (23) with the speaker connector (1) of the speaker branch-off line (11).


Component Identification:
