AZ82.70-P-0001-03TA Retrofit Speaker

AZ82.70-P-0001-03TA Retrofit Speaker
- except CODE (273) Portable CTEL preinstallation (non-networked), VDA wiring

1 Remove insulation (17) in the area of the hands-free system speaker to be installed from the trim (10).

The area is already preperforated.

2 Make cutout (18) with diameter (A) in trim (10) as per the picture.

A distance of atleast 10 mm from the bracket (see arrow) must be maintained.

Component Identification:

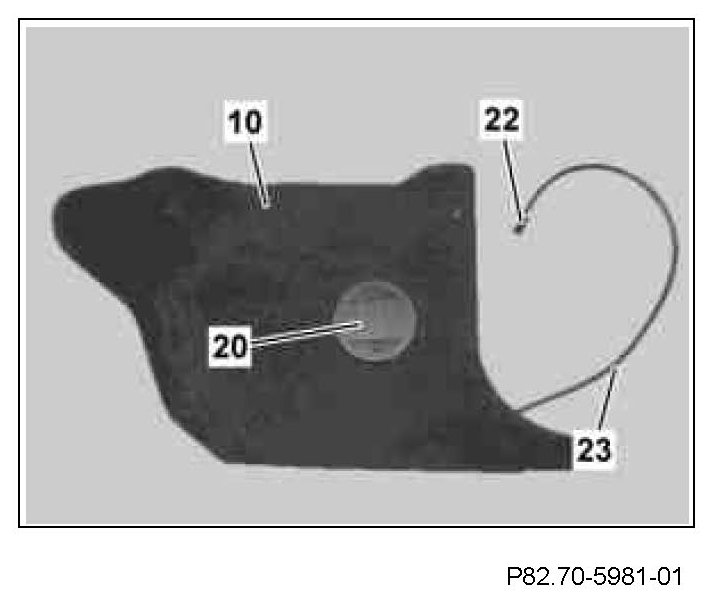

3 Install speaker cover (20) in trim (10).

When installing the trim (10), the speaker connector (22) of the speaker wiring harness (23) is contacted with the wiring harness connector FSE 12.

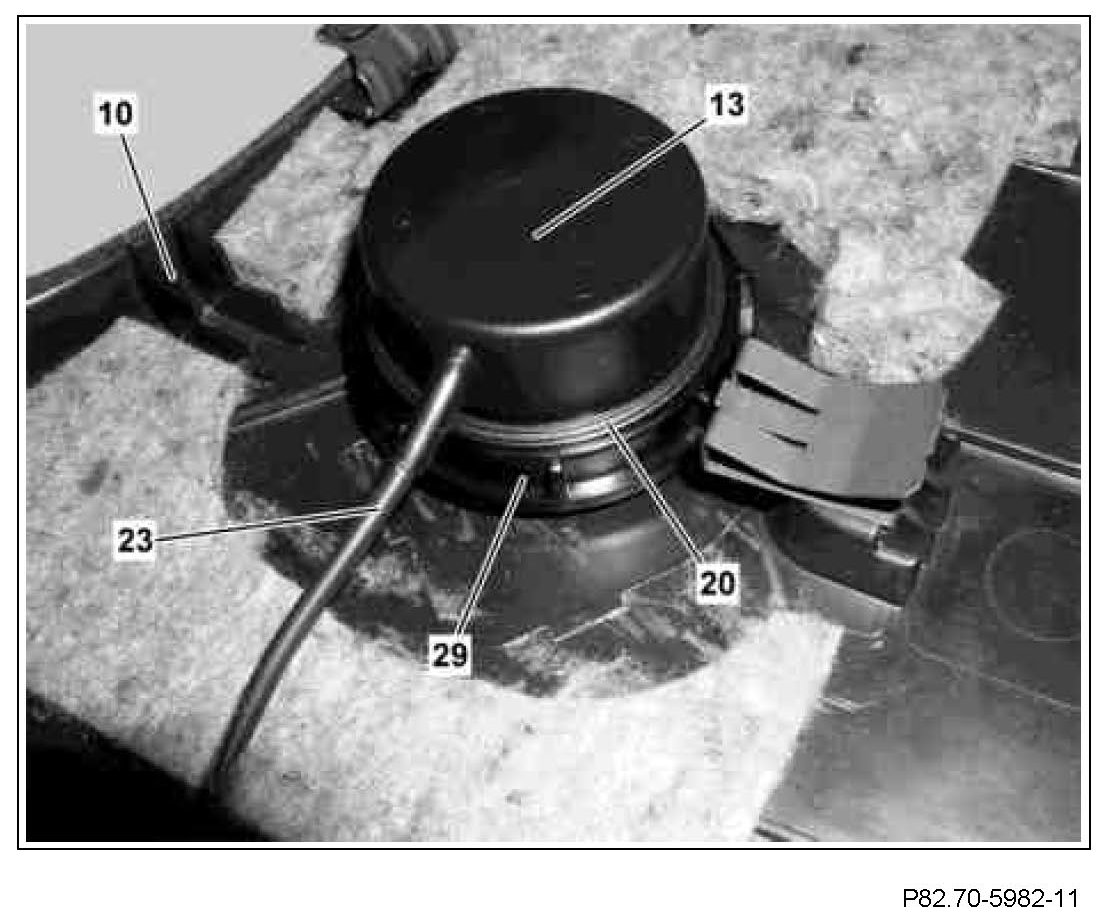

4 Screw hands-free system speaker (13) into the speaker cover (20).
5 Fasten the hands-free system speaker (13) in the trim (10) with the screw-type sleeve.

As shown in the picture the speaker wiring harness (23) of the hands-free system speaker (13) must run downwards.

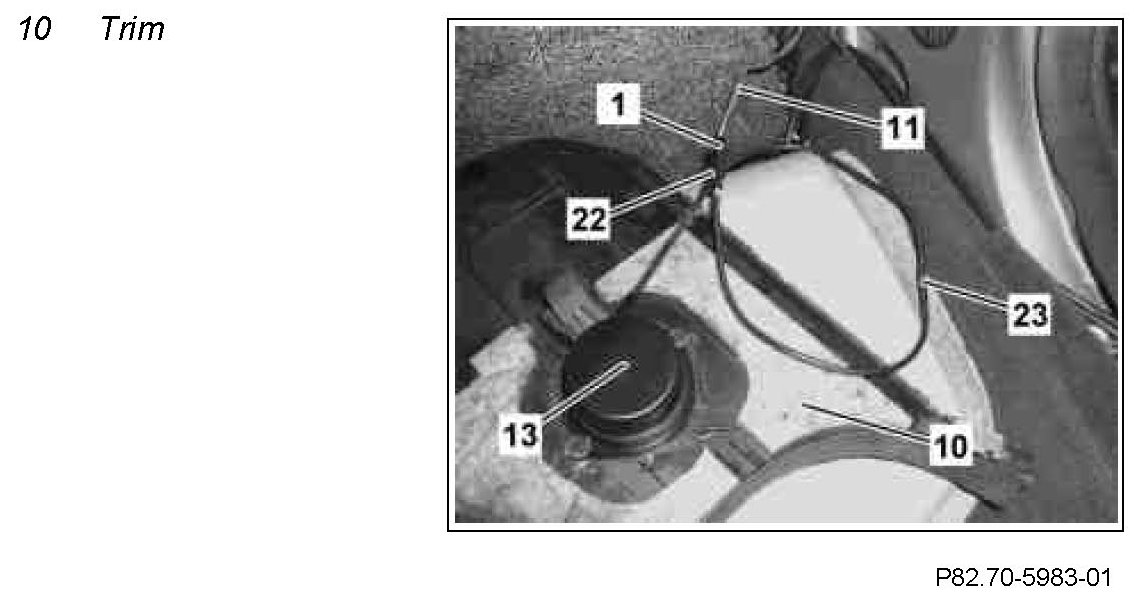

6 Contact speaker connector (22) of the speaker wiring harness (23) with the speaker connector (1) of the speaker branch-off line (11).
