Speaker: Description and Operation

GF82.62-P-4220TM Speaker System, Component Description

Component Identification:

Location

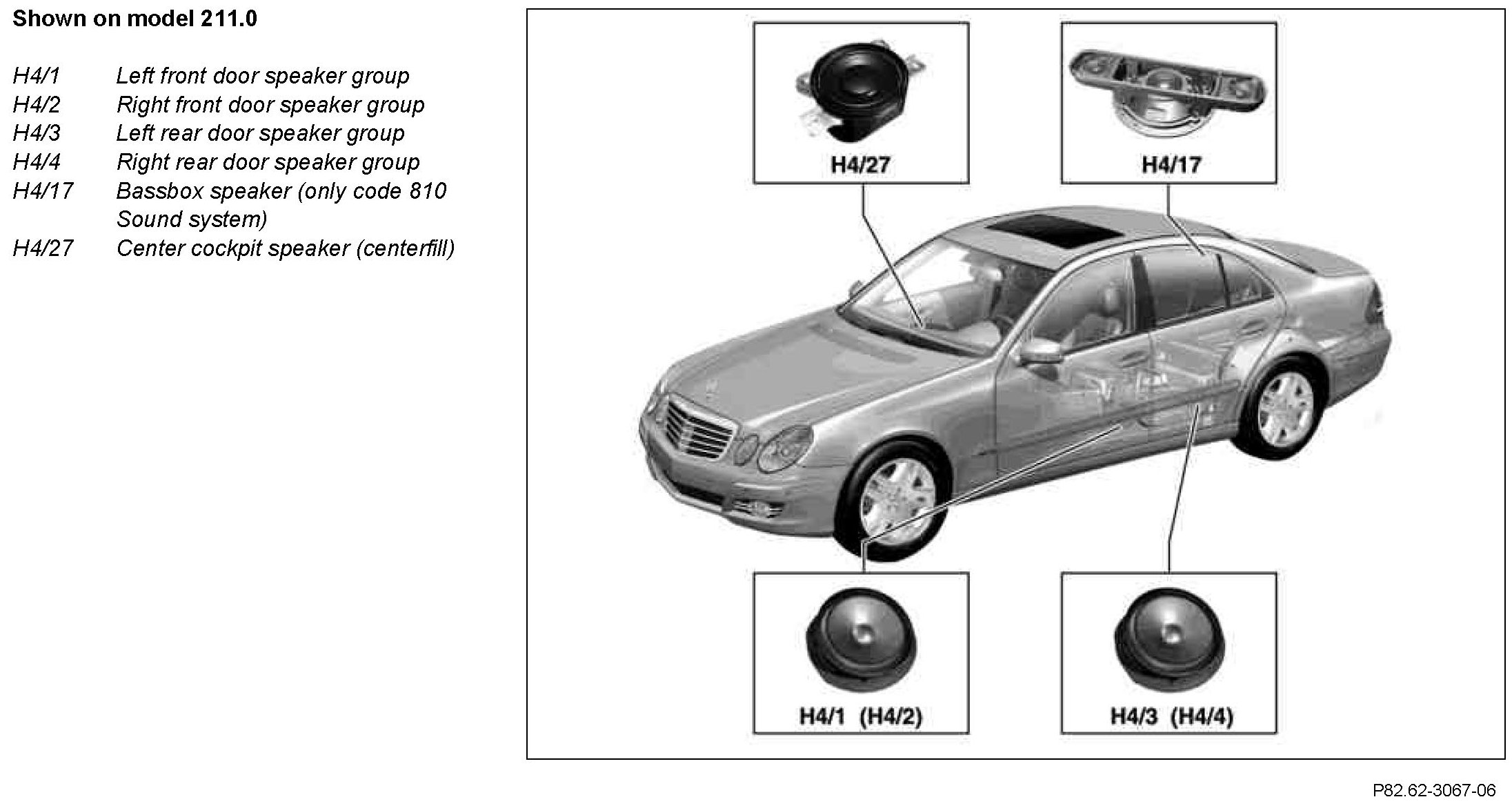

The left front door speaker group and the right front door speaker group are installed in the left and right front doors respectively. The left rear door speaker group and the right rear door speaker group are installed in the left and right rear doors respectively. The center cockpit (centerfill) speaker is centrally installed in the dashboard.

Additional speaker with code 810 Sound system The bass module speaker is centrally installed under the rear shelf (on model 211.0). Next to the bass box speaker there is also the left rear surround speaker (H4/54) and the right rear surround speaker (A4/57) (with model 211.0).

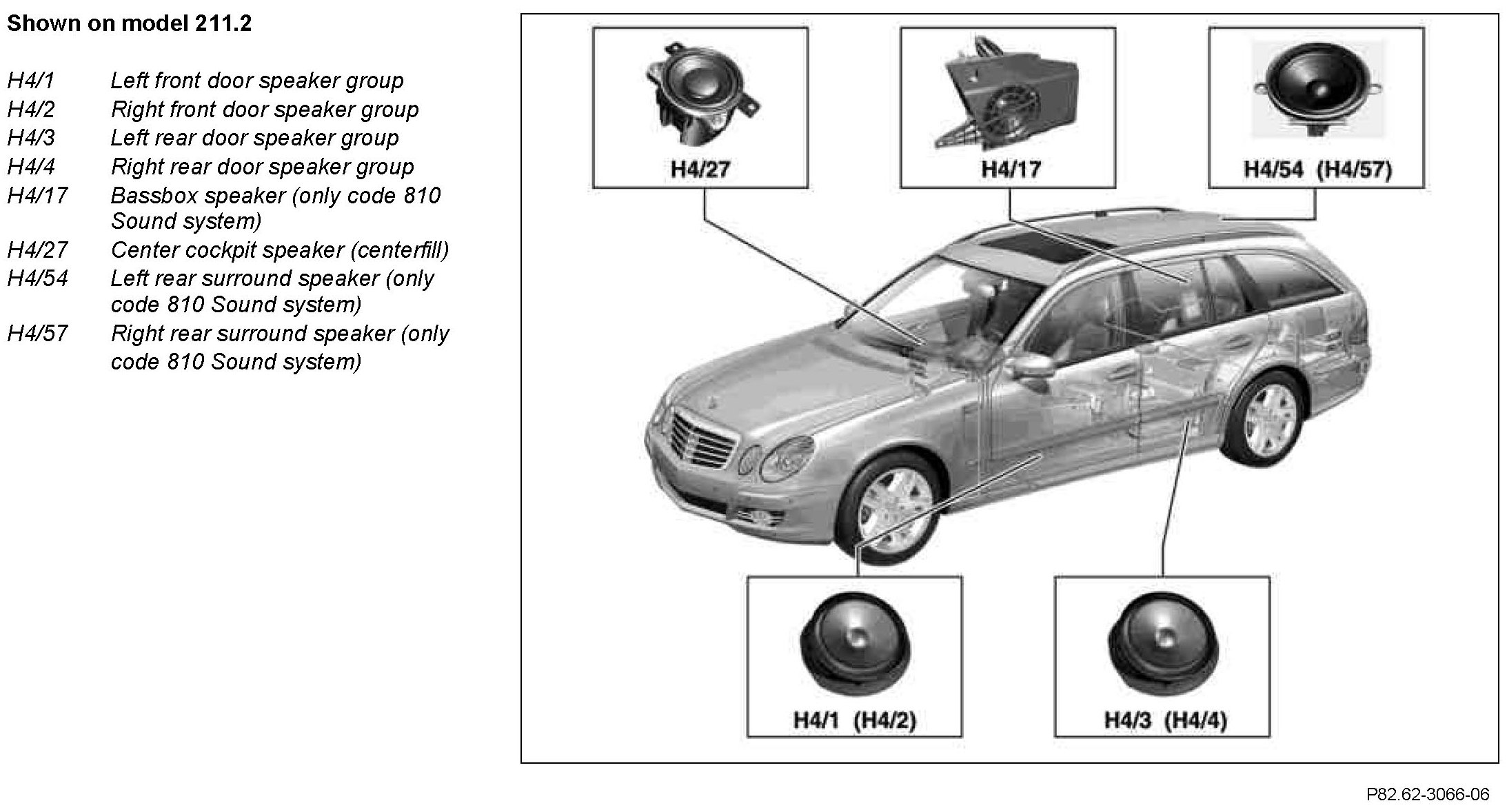

The bass module speaker is installed in the right of the luggage compartment (on model 211.2).
The left rear surround speaker and the right rear surround speaker are installed in the upper rear roof area (with model 211.2).

Task
^ Output device for audio applications, telephony and voice control.
