AN82.64-P-0001-05TZ Expand Fiber Optic Cable Ring For Component to Be Retrofitted



AN82.64-P-0001-05TZ Expand Fiber Optic Cable Ring For Component To Be Retrofitted

Risk of breakage: Do not kink fiber optic cable and do not route over sharp edges or bend in radii smaller than 25 mm. Tensile forces on inserts must not exceed 65 N. Do not squeeze fiber optic cable and do not compress with clamps or cable ties.

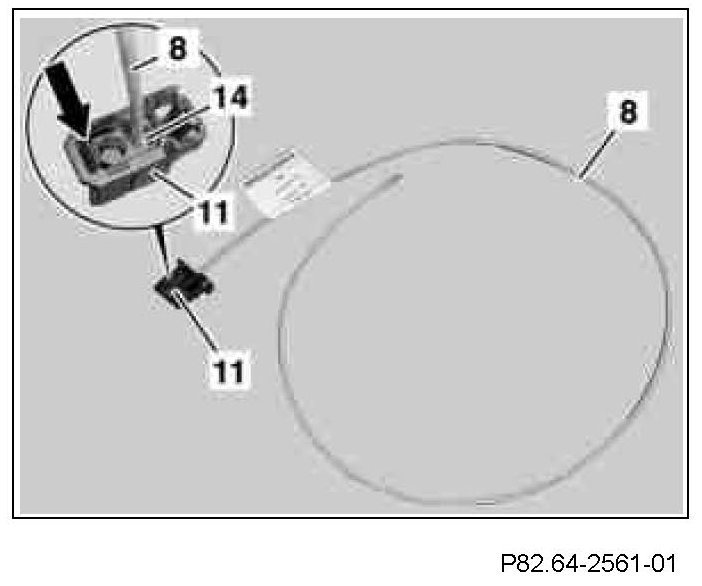

1 Press locking tab (arrow) of the MOST wiring harness ordered outward slightly and pull the black, 2-pin MOST connector (14) out of the MOST connector housing (11).

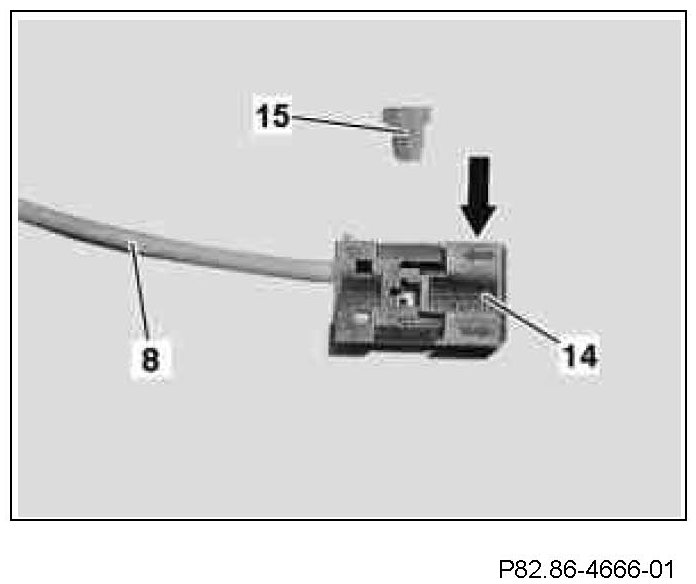

2 Unclip blue retaining clip (15) out of the black, 2-pin MOST connector (14).

It must be ensured that the fiber optic cable module (8) is installed in chamber 2 (output) (see arrow). If this is not the case, install fiber optic cable module (8) from chamber 1 in chamber 2.

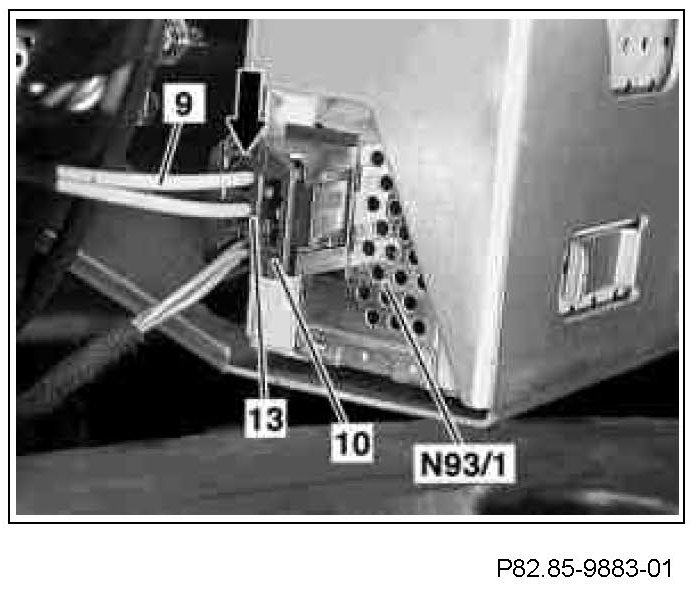

3 Disconnect MOST connector housing (10) from the audio gateway control unit (N93/1).

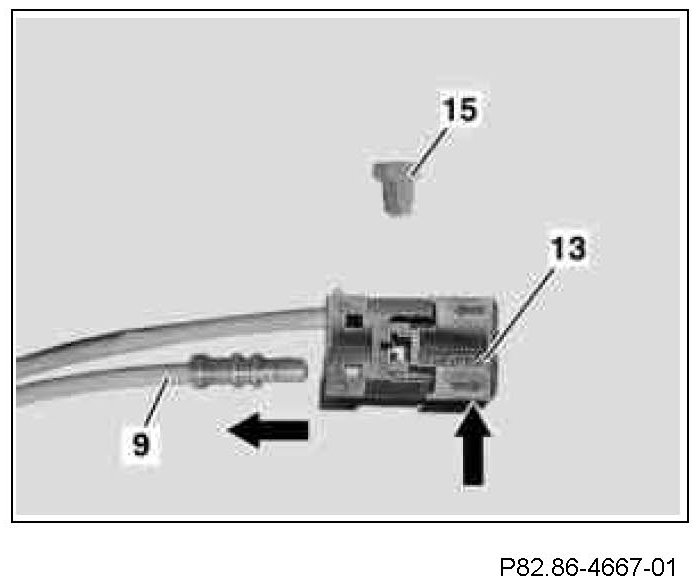

4 Press locking tab (arrow) outward slightly and pull black, 2-pin MOST connector (13) out of MOST connector housing (10).

Shown on model 220








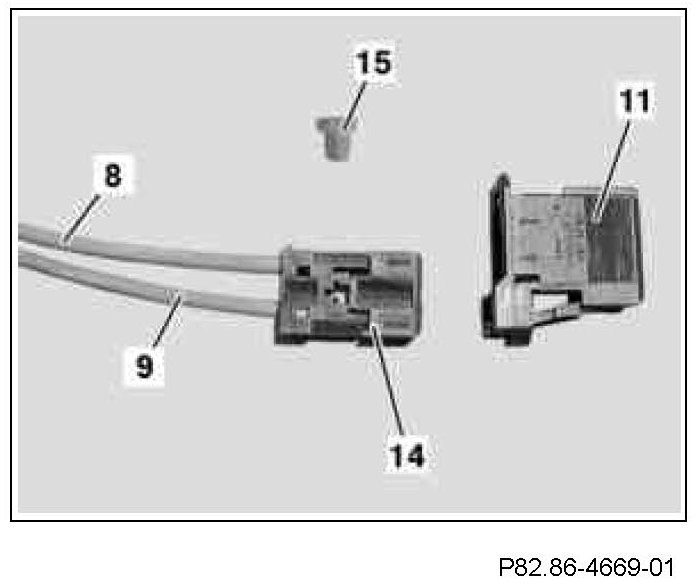

5 Unclip blue retaining clip (15) from black, 2-pin MOST connector (13).

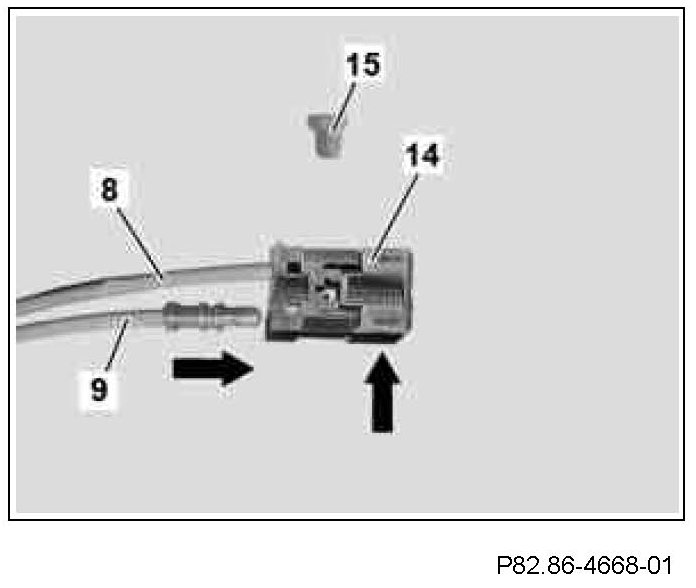

6 Release locking tab and remove fiber optic cable module (9) from chamber 1 (input) of black, 2-pin MOST coupling (13) and install into chamber 1 (input) of black, 2-pin MOST coupling (14).

MOST connector (14) is from MOST wiring harness ordered










7 Install blue retaining clip (15) into the black, 2-pin MOST connector (14).
8 Clip black, 2-pin MOST connector (14) into MOST coupling housing (11).

MOST connector (11) is later connected to the navigation processor.

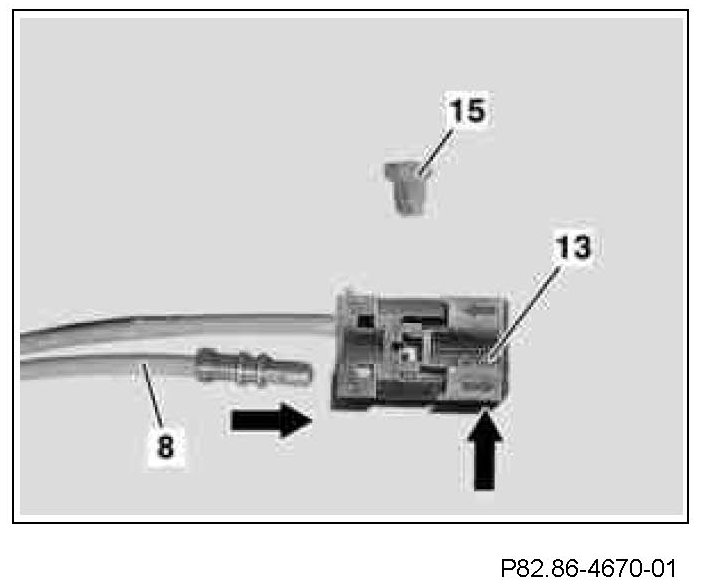

9 Install free end of fiber optic cable module (8) into chamber 1 (input) of black, 2-pin MOST connector (13).
10 Install blue retaining clip (15) into black 2-pin MOST connector (13).

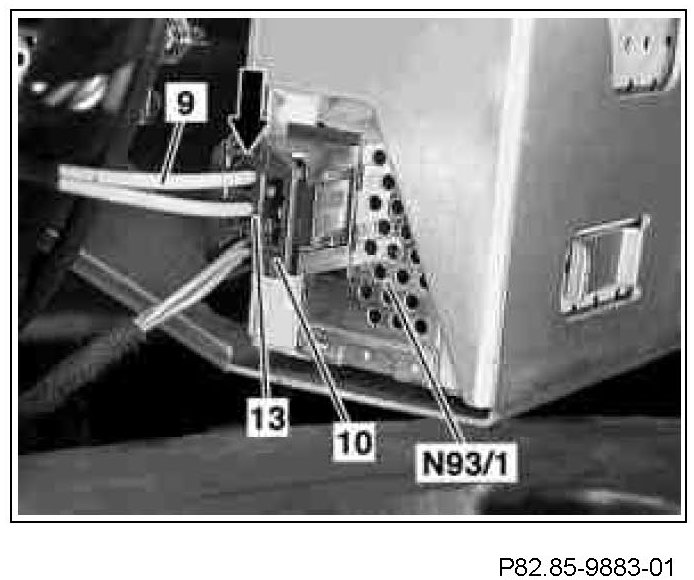

11 Clip black, 2-pin MOST coupling (13) into MOST connector housing (10) and connect to audio gateway control unit (N93/1).

The MOST coupling housing (10) is connected later after installation of the navigation processor wiring harness on the audio gateway control unit (N93/1).

Shown on model 220







12 Route fiber optic cable along on-board lines and fasten in place using felt tape to ensure it does not chafe or make any noise.

The fiber optic cable is fastened in place later after installation of the navigation processor.
