AN82.64-P-0001-01T Retrofit CD Changer Wiring Harness

AN82.64-P-0001-01T Retrofit CD Changer Wiring Harness

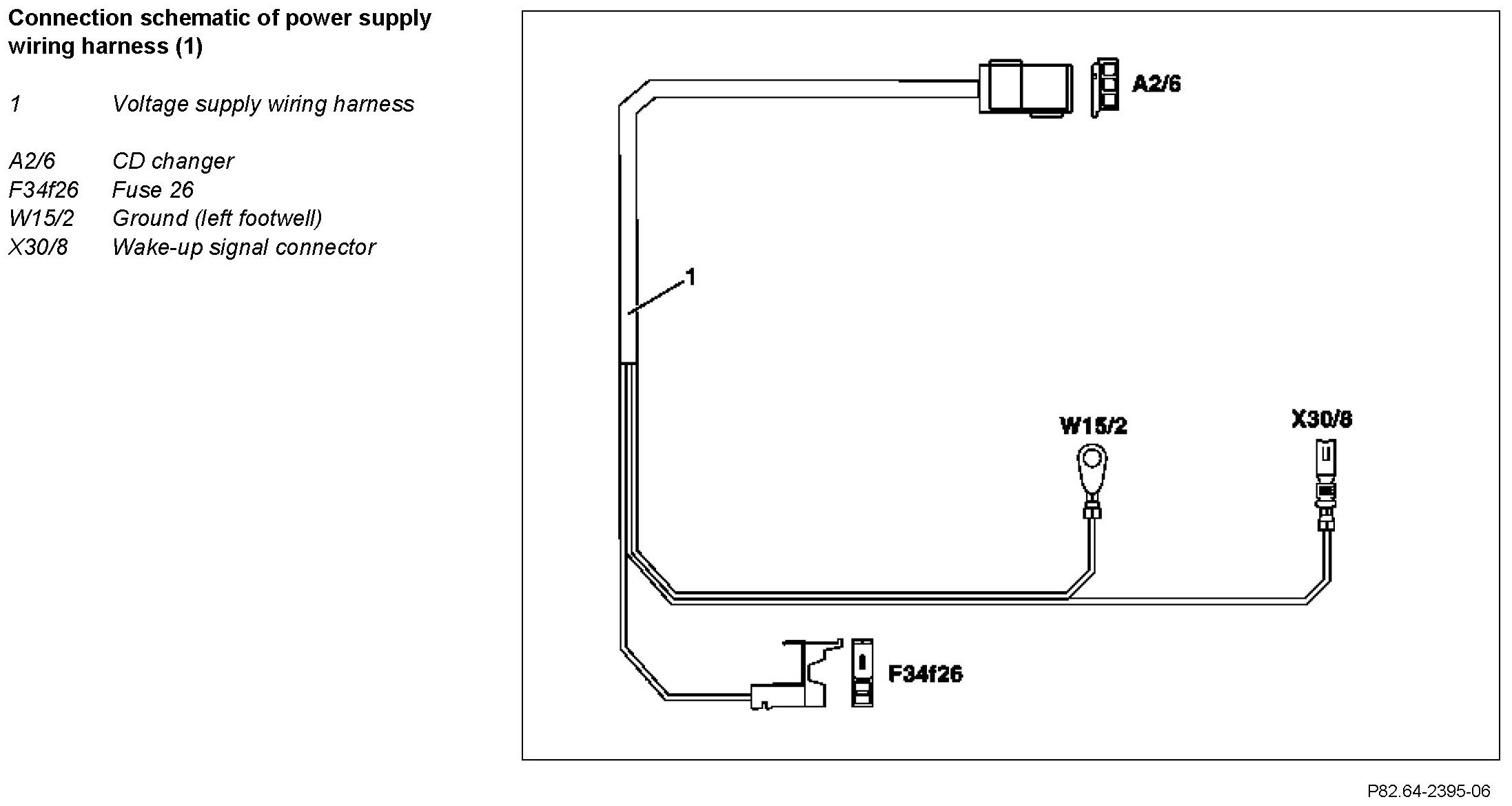

Component Identification:

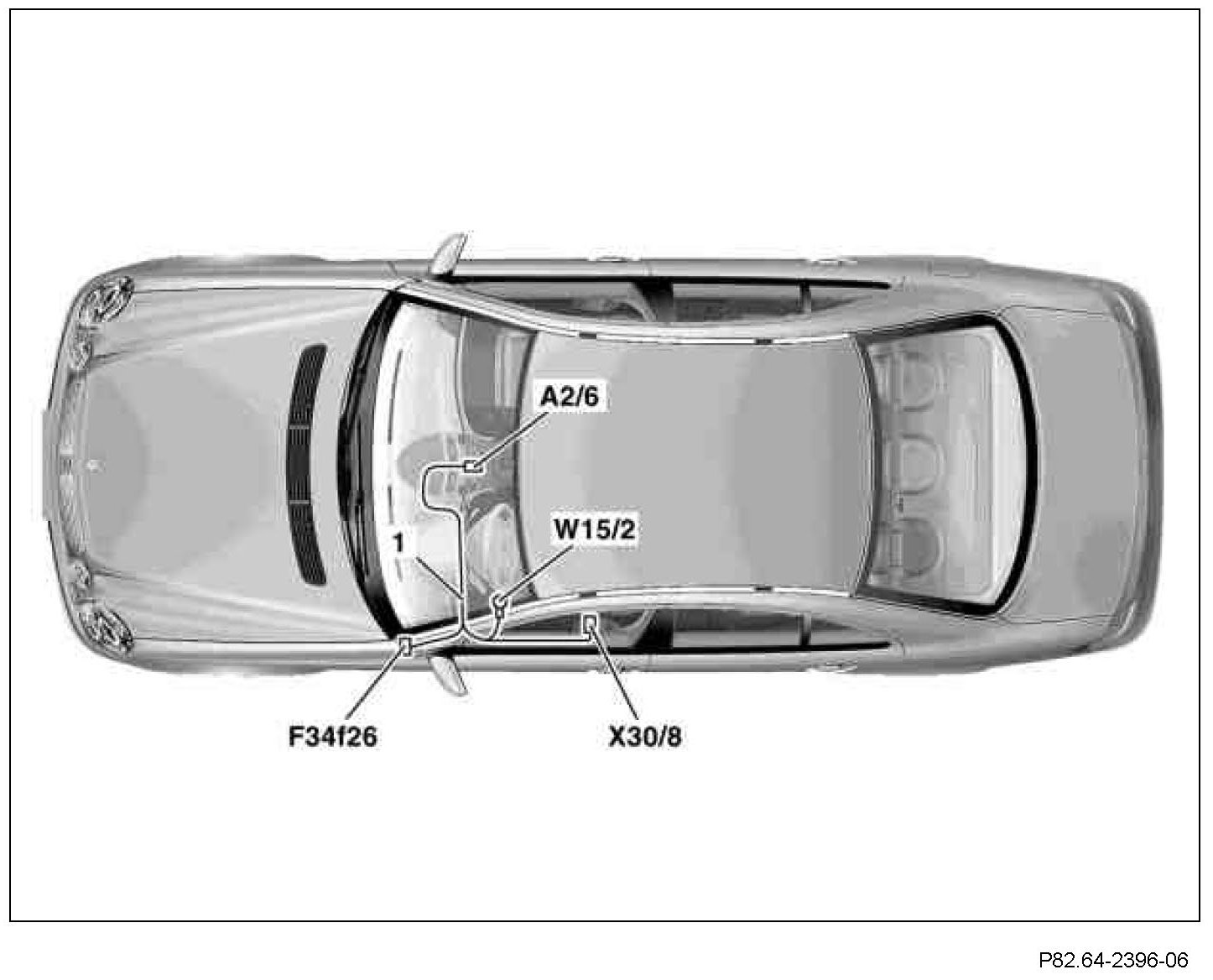

Routing diagram for power supply wiring harness (1)

1 Route power supply wiring harness (1), as shown, to the CD changer (A2/6), fuse 26 (F34f26), ground (left footwell) (W15/2) and to the wake-up signal connector (X30/8) and fix in place using adhesive tape and cable tie.

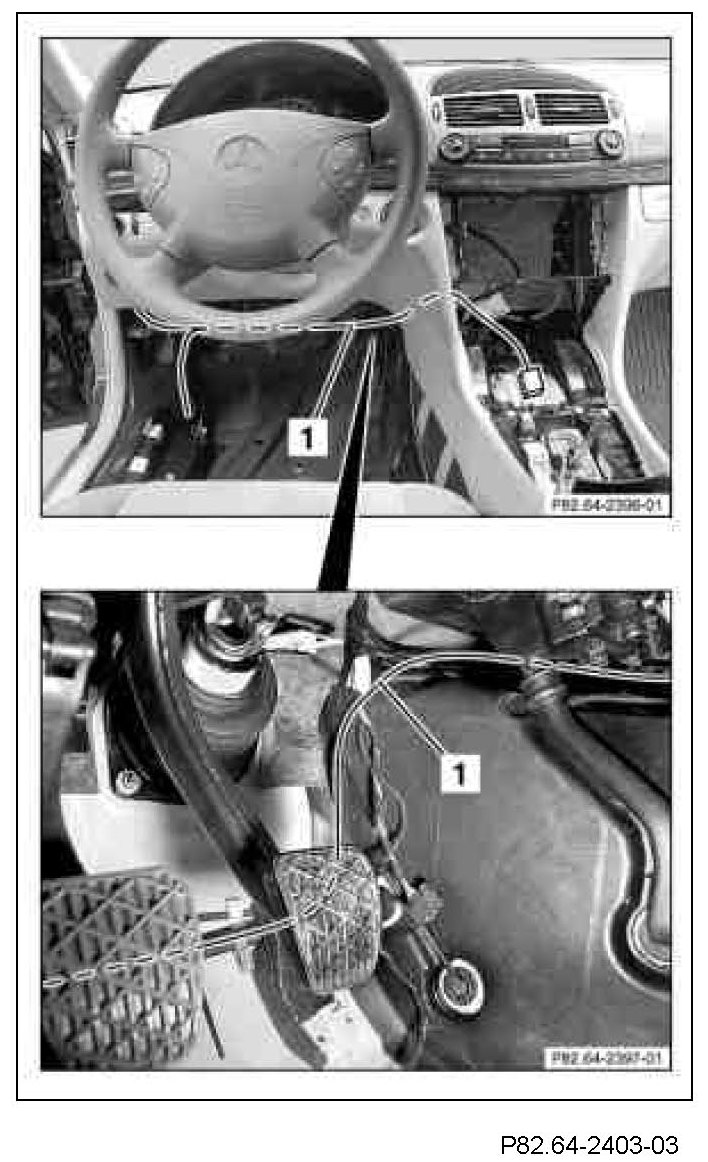

2 Route black 3-pin coupling of power supply wiring harness (1) from front left footwell to restraint systems control unit along existing lines and to foot-brake cable and fix in place.

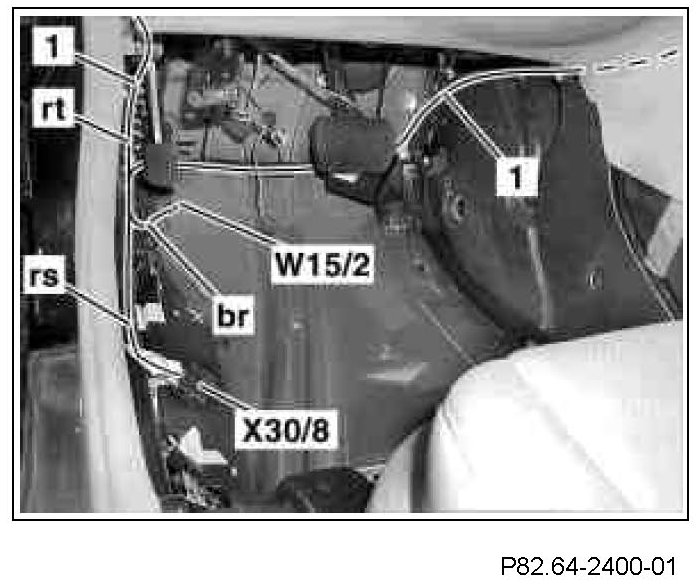

3 Connect brown line (br) from power supply wiring harness (1) to ground (left footwell) (W15/2).

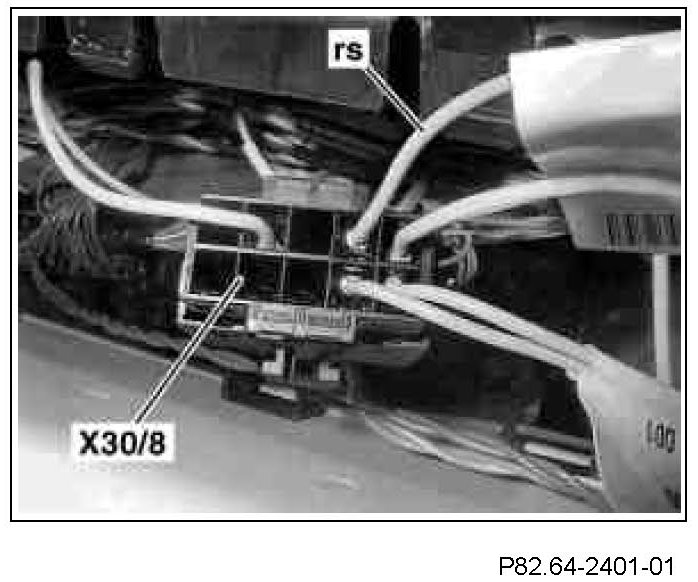

4 Route pink line (rs) of power supply wiring harness (1) along existing lines in left front footwell cable duct to black 10-pin wake-up signal connector (X30/8) and fix in place.







5 Insert pink cable (rs) into contact cavity 3 of black 10-pin wake-up signal connector (X30/8).

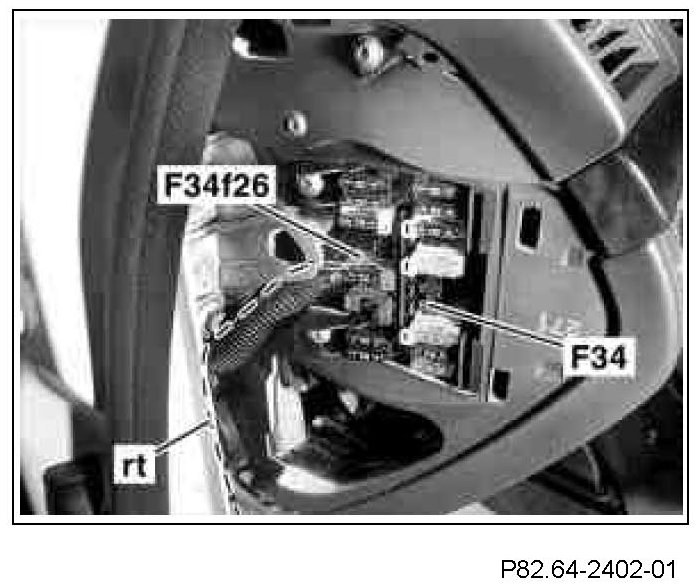

6 Route red line (rt) with fuse 26 (F34f26) from left front footwell to the interior fuse box (F34) and fix in place.
7 Insert fuse 26 (F34f26) into slot 26 of interior fuse box (F34).

Fuse 26 (F34f26) has a rating of 7.5 A.
Make loops out of excess length of power supply wiring harness (1) and fix in place at existing wiring harnesses using cable ties.
